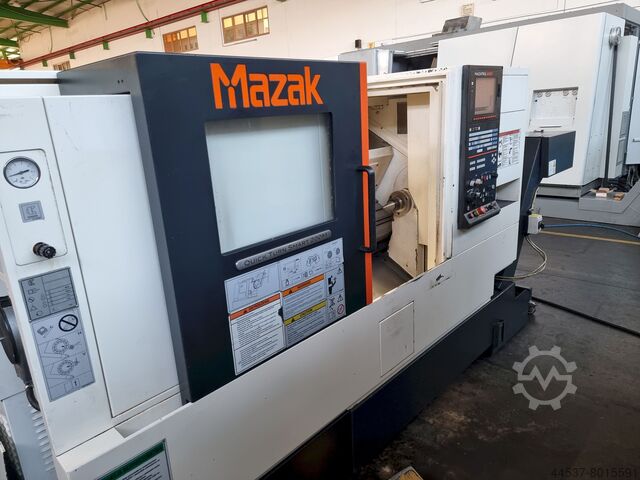

CNC Lathe

Mazak QT Smart 200M

Condition: used, Swing Diameter Over Bed: 400 mm Swing Diameter Over Longitudinal Slide: 350 mm Distance Between Centers: 610 mm Travel Limit: 240 mm Suggested Workpiece Diameter: 200 mm Max Longitudinal Travel: 560 mm Machining Length: 550 mm Max Cross Travel: 40 mm + 120 mm Height of Spindle Axis from Floor: 1135 mm Programmable Spindle Speed Range: 40 to 4000 rpm Spindle Bore Diameter: 52 mm Spindle Interior Cone: MK 6 Slide/Bed Slope: 45/45° Turret Positions: 12 Tools Lodpfoxg Nd Ajx Aiqjhl Main Motor: 15 kW Control: Fanuc 6T Equipped with: See photos

Condition: excellent (used), Year of construction: 2019, 3 x Miyano ABX-51SYY2 Years: 2016, 2018, 2019, 2021 Alps ASR RX45/51EV automatic bar feeder Fanuc 31i-B CNC Control Swarf coveyor Twin Spindles Twin Independent 12 Station Turrets Full Y-Axis on both Turrets Driven Tooling T Thermal Compensation Tooling package Ljdpszq Aqdefx Aiqohl Operating manuals Service history (where available) Barloader Alps Tool ASR RX 51Ev Machines available in October 2026

Condition: used, Year of construction: 2013, power: 17.1 kW (23.25 HP), input voltage: 400 V, input current: 29 A, input frequency: 50 Hz, travel distance X-axis: 4,320 mm, travel distance Y-axis: 1,326 mm, travel distance Z-axis: 170 mm, number of axes: 5, number of slots in tool magazine: 33, Equipment: CE marking, Biesse Rover A 1343 CNC machining centre 5-Axis Description Rover A ATS CNC Machining Centers Working ranges X = 4,320 mm; Y = 1. 326 mm;Z = 170 mm Waste conveyor belt Automatic lubrication system Remote console 1 x 250 m3/h vacuum pump for standard system Auxiliary vacuum system for double working area machine Multi-zone 8 bars and 24 cups with automatic positioning (ATS-EPS X-Y) 8 reference stops with 115 mm rear stroke 8 front reference stops with 140 mm stroke positioned at a height of 1190 mm from the rear stops 4 side stops, with 140 mm stroke (2 right + 2 left) with implant 2 additional side stops, with 140 mm stroke (1 right + 1 left) Pneumatic system for panel lift Coolant control unit to replace the heat exchanger supplied with 13kW 5-axis units. Operating unit 5 interpolating axes 13 kW (17.4 Hp), HSK F63 connection, liquid-cooled. BiesseWorks Advanced Machine Chain tool magazine with 33 places - centre distance 120 mm (Despite our great care all changes, mistakes in technical data, prices and all information is subject to (typing) errors. No guarantee on printed data! Availability subject to prior sales). (Trotz größter Sorgfalt bleiben Änderungen, Irrtümer bei technischen Daten, Preisen und allen Angaben (Tipp-)Fehler vorbehalten. Keine Gewähr auf gedruckte Daten! Verfügbarkeit vorbehaltlich Zwischenverkauf). Lhedpfx Asy U Naijiqjl Prices excl. advertisement cost MachineSeeker / Preise exkl. Inserierungskosten MaschinenSucher Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Lodpfx Aiotk It Soqjhl Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: used, Year of construction: 2014, Colour: White Empty weight: 4.500 kg - Machine available from: 2026-03-30 - Year: 2014 - Documentation available: Yes - CE certificate present: Yes - Serial number: AA1/017825 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - Type milling table: Beam table - Tool holder: HSK-F63 - Drilling unit present: Yes - Tool changer positions [pcs.]: 12 - System/software: SCM Maestro - Safety feature: Enclosed fence, Safety light curtain - Vacuum pump present: Yes - └ Number [pcs.]: 1 - └ Brand: Becker - └ Type: VTLF 2.250/0-791 - └ Year of manufacture: 2014 - └ Main motor power [kW]: 5.5 - └ Capacity [m³/h]: 244 - └ Vacuum pressure [bar]: 200 - CNC options: Manual control - CNC documentation available: USB stick Lsdpfxjx Hwhxo Aiqehl - Working range X [mm]: 5200 - Working range Y [mm]: 1550 - Z-axis working range [mm]: 160 - Installed length [mm]: 9000 - Installed width [mm]: 5000 - Installed height [mm]: 3100 - Transport weight [kg]: 4500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2010, turning length: 1,495 mm, spindle speed (min.): 35 rpm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 580 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 1,545 mm, workpiece weight (max.): 300 kg, total height: 2,577 mm, total length: 5,088 mm, total width: 2,450 mm, spindle nose: A2-6, spindle diameter: 660 mm, Equipment: documentation/manual, CNC Control Mazatrol Matrix Turning diameter 660 / 260 mm Turning length 1495 mm Spindle bore diameter 65 mm Spindle nose A2-6 Spindle nose sub spindle A2-6 Turning speed spindle 35 - 5.000 R/min Turning speed sub spindle 35 - 5.500 R/min Lhsdpfezqt Umox Aiqel Milling head speed 15 - 21.500 R/min Movement X-axis 580 mm Movement Y-axis 160 mm Movement Z-axis 1.545 mm B-axis travel 225° C-axis indexing 0,0001 (360) ° Tool taper Capto C6 Tools in tool magazine 120 Barfeeder Irco-Breuning ILS-MUK If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: good (used), Year of construction: 2006, operating hours: 40,000 h, functionality: fully functional, machine/vehicle number: M086, spindle speed (max.): 1,500 rpm, spindle speed (min.): 15 rpm, spindle motor power: 22,000 W, Vertical turret lathe with CNC Control: FANUC Series 18i-TB Number of turrets: 1 Number of tools stations: 12 Chip conveyor: 3508734 Boring bar holder: dia. 50 mm The machine is still under power. Lodetmq Ukopfx Aiqjhl

Condition: used, TECHNICAL DETAILS Lhsdpoy Tzc Hefx Aiqol - Number of axes : 5 MILLING SPINDLE - Tool holder type : BT40 - Spindle power : 36.5 [kW] - Spindle speeds : 12000 [rpm] - B Rotary Axis : 90 [°] (+/-) LINEAR AXES - Travels on X/Y/Z axes : 1525 / 660 / 610 [mm] - Rapid traverses rates (X/Y/Z) : 32 / 32 / 24 [mm/min] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 40 TABLE - Table dimensions : 1680 x 660 [mm] - Distance table / spindle nose (min./max.) : 12.7 - 622.3 [mm] - Maximum weight upon table : 1360 [kg] - Diameter of the C-type rotary table : 600 [mm] - Travel : 360 [°] - Maximum load on the rotary table : 500 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 69 [kVA] WEIGHT & DIMENSIONS - Machine weight : 9.800 [kg] EQUIPMENT - CNC : WinMax / MAX5 - Electronic handwheel - Coolant tank * with high-pressure pump - Coolant through spindle - Chips conveyor - Spindle cooling unit - Tool probe

Condition: excellent (used), Year of construction: 2009, operating hours: 87,000 h, functionality: fully functional, turning length: 600 mm, turning diameter over cross slide: 410 mm, spindle speed (min.): 22,000 rpm, For sale is a CNC turning center from the manufacturer DMG, type CTX beta 800, built in 2009. Available immediately. The machine is in good condition and fully functional. Technically sound and ready for immediate use. Technical data: Machine type: CNC turning center Manufacturer: DMG Type: CTX beta 800 Year of manufacture: 2009 Control: Heidenhain 4290 Max. turning length: 600 mm Tool turret: 12-position Tool holder: VDI 40 Operating hours: approx. 87,000 h Spindle hours: approx. 22,000 h Linear guide Z1 recently renewed Turret drive S2 recently replaced Lhjdpfx Aijyq Hq Nsqel Machine regularly serviced by customer support technically sound and fully functional Inspection under power possible by arrangement Service and maintenance reports available large accessory package powered tools from WTO further documentation and images available upon request If interested, please write or call. Maschinenhandel Nord Gerstenstraße 2 17034 Neubrandenburg

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, input voltage: 400 V, stroke length: 300 mm, operating speed: 90 mm/s, throat depth: 1,000 mm, total length: 4,540 mm, total width: 1,900 mm, total height: 2,950 mm, overall weight: 16,500 kg, travel distance X-axis: 1,000 mm, controller manufacturer: Lenze, controller model: 9300, working width: 4,520 mm, bending force (max.): 150 t, back gauge travel distance R-axis: 150 mm, back gauge travel distance Z-axis: 2,900 mm, distance between stands: 3,200 mm, installation height: 950 mm, control type: CNC control, back gauge adjustment: CNC-controlled, actuation type: electric, Equipment: CE marking, documentation/manual, emergency stop, foot remote control, safety light barrier, SafanDarley press brakes are innovative and highly efficient machines on the market, designed for sheet metal processing by the Dutch manufacturer. The precision of bending and reliability have been recognized by users in Poland and worldwide. SAFAN E-Brake is a series of machines equipped with an electric drive, which has been successfully used in our machines for almost 30 years. Currently, the largest model of press brakes with an electric drive is available with a capacity of up to 300 tons and features a patented design by the manufacturer. Lenze motors and servo motors, controlled by long-life frequency inverters, enable fast and reliable operation of the system for many thousands of operating hours. Thanks to the innovative drive, the machine consumes electrical energy primarily during the downward movement of the slide and the bending process. The slide returns using the force generated by springs mounted on both sides of the machine. Even when idle, the machine virtually does not consume electrical energy, as the system does not have a hydraulic pump motor to maintain pressure, as in hydraulic press brakes. We estimate that the electrical energy consumption is up to 70% lower than in conventional hydraulic press brakes. In addition, the electric drive is insensitive to temperature differences that may occur in production halls. The machine performs excellently in both long and short production runs. Ljdpex Ewnpefx Aiqshl Safan E-Brake 150-310 model 2009 - Capacity: 150 tons - Bending length: 3060mm - Controller: Safan E-Control - Bending system in 2D mode - 17” color AcuTouch touchscreen monitor - Service panel on a movable arm - Y1/Y2 axis controlled by CNC Back gauge: - X1-X2 axis controlled by CNC - R1-R2 axis controlled by CNC - Z1+Z2 axis controlled by CNC - Upper tool adapter Wila (hydraulic clamp) - Lower tool adapters Wila (hydraulic clamp) - Lightguard safety system with the option to control the upper beam descent - Work area lighting at the front and rear of the machine - Electrical installation 3/N/PE 50 Hz 400/230 V - Opening: 690mm - Distance between machine frames: 3300mm - Machine dimensions (L x W x H): 4450x2120x2900 - Weight: 16,500kg
