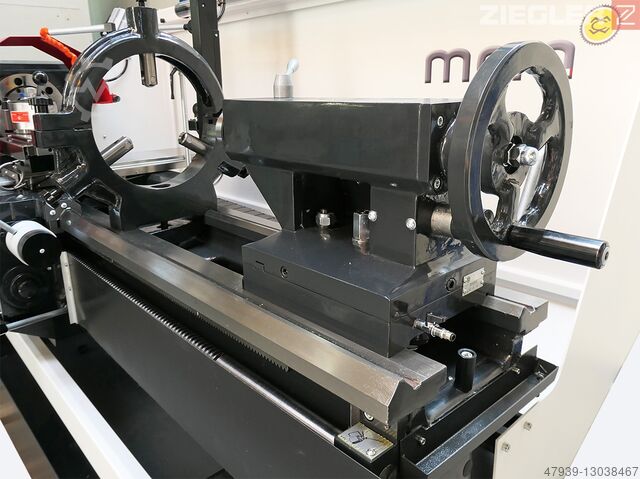

Lead/traction spindle lathe

MCM TC 260-105-1500 Premium

Condition: used, greates pass round over bed 480 mm swing diameter over bed slide 300 mm turning length 1500 mm centre height 240 mm centre distance 1500 mm spindle bore 42 mm spindle turning speed range 14 - 1400 U/min total power requirement kW weight of the machine ca. 2,4 t dimensions of machine L x W x H 3,00 x 1,05 x 1,40 m Accessories: 3-jaw chuck 250 mmø, MULTIFIX-head, running center Gusdpfxstqqx Ae Abfsf

Condition: like new (used), Canon DXC5735i for sale. Print count under 100k Guedpfx Asyuyuvjbfjf Good working condition. A3 color multifunction laser printer (MFP) • Technology: laser • Color: color printing • Functions: print, copy, scan (optional fax) • Paper size: up to A3 • Use case: office / enterprise • Category: multifunction printer (MFP) For more information, please send a message.

Condition: reconditioned (used), Year of construction: 1956, Lead and Feed Screw Lathe WEIPERT Year of manufacture: 1956 Spindle bore: 90 mm Centre distance: 3000 mm Swing over bed: 800 mm Swing over cross slide: 610 mm Swing in gap: 1120 mm Speed range: 7.5 – 475 rpm Comes with the following accessories: Multifix toolholder with 11 inserts Coolant system 3-jaw chuck 315 mm 3-jaw chuck 400 mm 3-jaw chuck 500 mm Gjdpsw Ew D Djfx Abfouf Faceplate 400 mm Faceplate 800 mm Faceplate 1000 mm Travelling steady Various turning tools (30 insert tools) 2 revolving centres 1 drill chuck Operating manual

Condition: excellent (used), Year of construction: 2002, travel distance X-axis: 5,000 mm, travel distance Y-axis: 3,100 mm, travel distance Z-axis: 1,600 mm, spindle speed (max.): 3,500 rpm, Machine parameters – see photo. X-axis – 5000 mm Y-axis – 3100 mm Guedpfx Asy U Ngvebfsf Z-axis – 1600 mm Control system: Siemens 840 D.

Condition: good (used), Used 2-meter lathe from Colchester Type: Mastiff 1400 Turning length: 2000 mm Turning diameter over bed: 540 mm Spindle bore: 89 mm Includes 3-jaw and 4-jaw chuck Includes steady rest Guodpfx Abozi Salsfof 2-axis digital readout

Condition: used, Year of construction: 1999, operating hours: 19,500 h, functionality: fully functional, machine/vehicle number: 85525, travel distance X-axis: 1,760 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 600 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, type of input current: three-phase, total width: 2,900 mm, total height: 3,100 mm, total length: 3,800 mm, table length: 2,030 mm, table width: 500 mm, table load: 900 kg, tank capacity: 290 l, tool length: 250 mm, tool diameter: 180 mm, Equipment: documentation/manual, rotational speed infinitely variable, 4 axes Gujdpjxup Iqofx Abfef 36 tool stations SK40 Pendulum operation with partition wall 2x swiveling bridges Coolant tank 290 l with belt filter Control unit Heidenhain TNC 410 MA A-drive RTA 200/300

Condition: like new (used), Year of construction: 2015, functionality: fully functional, We offer this as new MHM SPM 4000 12Z08 70x100 screen printing machine, year of manufacture 2015. Gujdpfey I Iz Eex Abfof If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 133, product width (max.): 270 mm, working width: 270 mm, type of input current: three-phase, Equipment: documentation/manual, Semi-rotary flexographic printing machine MALBATE Mecaformat 270. 5 printing units + 1 varnish unit + rotary magnetic die-cutting unit. UV drying – 6 drying units. Compressed air: 7/8 bar. Maximum web width: 270mm Minimum web width: 150mm Maximum feed length: 220mm Minimum feed length: 50mm Maximum printing width: 260mm Maximum printing length: 305mm Maximum length of the semi-rotary cutting die: 220mm Godpfx Ajyr R Sgjbfouf Maximum permissible unwind roll size: 3000m Unwind roll diameter: 800mm Rewind waste roll diameter: 450m Rewind roll diameter on the automatic splicer (AS): 360m Maximum speed: 10,000 impressions/hour The machine is currently in production. An inspection can be arranged by appointment. Details are available in the PDF file. For further information, please do not hesitate to contact us.

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 16,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 4,000 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, spindle speed (max.): 5,000 rpm, CNC SIEMENS 840 D WORKING AREA Gsdpfxszipmpo Abfeuf Longitudinal travel X axis: mm 16.000 Cross travel Z axis: mm 1.600 Vertical travel Y axis: mm 4.000 Rapid traverse rate: m/min 30 Axis acceleration: m/s² 2 Maximum axis thrust: N 16.000 WORKING TABLES No. 2 floor plates: mm 7.792 x 3.190 Rototranslating table: mm 3.000 x 2.992 Cross travel of rototranslating table: mm 2.500 Maximum load capacity at table center: Ton 60 SPINDLE Tool taper: ISO 50 DIN 69871 Spindle speed: Rpm 5.000 Power S1: kW 37 Power S6: kW 56 Maximum torque S1: Nm 1.295 Maximum torque S6: Nm 1.963 Usable low range: Rpm 0 – 1.145 Usable high range: Rpm 1.145 – 5.000 KOSMO 3 UNIVERSAL MILLING HEAD Positioning accuracy: ± 0.002° Maximum torque on rear plane: Nm 15.600 Maximum torque on front plane: Nm 11.000 Lubrication and cooling: Forced oil circulation Weight: kg 450 EQUIPMENT • Rueckle rototranslating table, size 3,000 x 2,992 mm, cross travel 2,500 mm, maximum load capacity at table center 60 tons, equipped with double preloaded pinion system; • Vertical axis designated as Y and cross axis designated as Z; • Remote electronic handwheel; • Automatic universal bi-rotary milling head “KOSMO 3 5000”, 5,000 rpm, ISO 50, indexing 0.02° on the front plane, continuous C-axis (hydraulic clamping) and 1° Hirth coupling on the rear plane, oil recirculation lubrication system; • Horizontal extension, diameter 200 mm, length 600 mm, 4,000 rpm, ISO 50 taper, continuous C-axis (hydraulic clamping) and 1° Hirth coupling; • Continuous platform (C-axis) prepared for future installation of a 2-axis continuous milling head; • Automatic head changer for the above-mentioned heads (Kosmo head, horizontal extension and preparation for continuous head); • Head storage magazine for 2 heads (Kosmo head + horizontal extension); • Air conditioning unit for electrical cabinet; • Belt-type chip conveyor along X-axis complete with transverse conveyor, coolant tank and coolant pump; • High-pressure coolant system, 40 bar through spindle, complete with tank and paper filter system, DIN 69871 type B; • Chain-type tool magazine with 80 positions “MAC80”, ISO 50, with tool change capability in both horizontal and vertical spindle positions (maximum tool length 400 mm, maximum tool weight 20 kg); • Air blast through external spindle nozzle; • Renishaw NC4 laser tool presetting system; • Renishaw RMP60 workpiece probe; • Mobile operator cabin moving along vertical and horizontal axes; • Instruction manuals and CE Declaration of Conformity.

Condition: used, Demonstration machine Hans Schreiner - metal lathe, 3-jaw chuck 315mm, 4-jaw faceplate 320mm, clamping disc 430mm, drive plate 250mm, steady rest, ride-on rest, magnetic brake, switchable automatically and with foot operation, coolant system, halogen lamp, splash guard, chip tray can be pulled out to the front, fixed punch, roller punch MK5 removable bed, hardened and ground bed and gear wheels without oil filling incl. Multifix Set B and 3-axis digital display Technical data: Centre height 300 mm Centre width 2000 mm max. turning diameter 600 mm spindle mount Camlock 8 hollow spindle 80 mm tailstock taper MK5 spindle speed 24 to 1600 rpm Speeds 15 Main motor output 7.5 kW Max. diameter over cross slide 350 mm Max. turning diameter in the bridge 680 mm Longitudinal feed 0.07 - 4 mm/revolution Cross feed 0.02 - 1.35 mm/revolution Metric thread 0.5 - 28 mm pitch Inch thread 56 - 1 threads/inch Module thread module 0.5 - 3.5 Thread diametric pitch 56 - 8 Quill diameter/travel 65/120 mm Weight 2200 kg Guodpfx Absvrvvaofef
