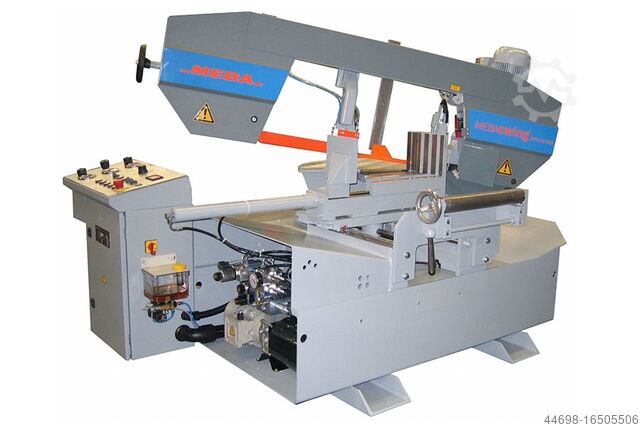

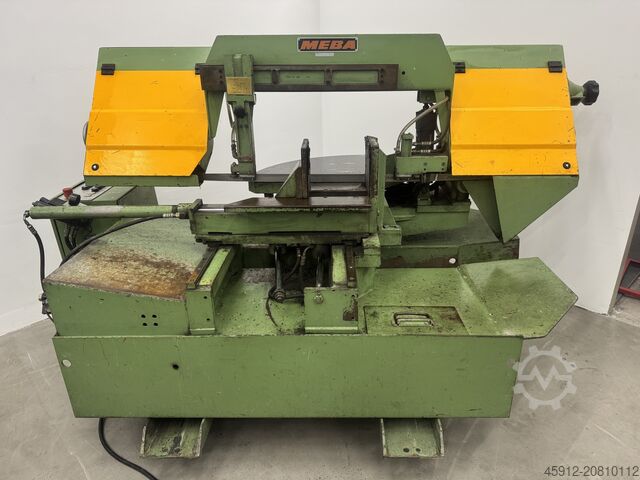

Band saw

MEBA 320 DG

Comparable to Behringer, Kaltenbach, Kasto, Jaespa, etc.

Semi-automatic saw operation with workpiece clamping – sawing – lifting to preset height after completing the cut.
Infinitely adjustable hydraulic cutting pressure and feed rate monitoring at the saw band tension. This allows optimal settings for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
Especially suited for universal use with various cross-sections, materials, and frequently changing mitre cuts.
The machine control system complies with CE standard 89/289.

Technical data:
Cutting capacity in mm round/flat
90° 325 / 500 x 300
45° 300 / 300 x 300
30° 200 / 200 x 200
45° 300 / 300 x 300
Iodpot D Azcefx Afvotc

Rapid lowering of the saw frame to the material edge by push button
Manual mitre adjustment from 45°–90° – 30°, continuously adjustable with scale
The mitre swivel point is the intersection between the saw blade and the fixed vice jaw, meaning there is no change in length measurement when changing the angle
Hydraulic full-stroke workpiece clamping – CETOP hydraulic system
At any saw frame angle, the material is clamped parallel at 90°
Complete coolant system with electric immersion pump
Centralised machine operation
Saw band drive with end stop
Moveable band guide arm, adjustable to material width
Saw blade return pulleys with carbide guides
Integrated chip cleaning brush
Saw band tension with torque wrench
Finish: Silver-grey / Blue-grey (RAL 7001 / RAL 7031)
Remnant piece length: 60 mm
Cutting speed:
AC frequency-controlled drive from 15–150 m/min, infinitely adjustable at the control panel
Drive:
Saw band 3.0 kW; 400 V, 50 Hz
Hydraulics 1.1 kW
Coolant pump 0.1 kW
Saw frame feed:
Infinitely variable up to 300 mm/min, hydraulically controlled
Saw band tension: Mechanical with torque wrench
Saw band dimensions: 4200 x 34 x 1.1 mm
Working height: 750 mm (without base elements)
Weight: 850 kg
Dimensions (LxWxH): 1450 x 2350 x 1350 mm
