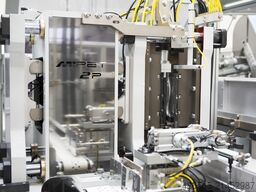

Blow molding machineMeccanoplastica / Italy
MIPET 2P
Blow molding machine
Meccanoplastica / Italy
MIPET 2P
Year of construction
2024
Condition
New
Location
Berlin

Show images
Show map
Machine data
- Machine type:
- Blow molding machine
- Manufacturer:
- Meccanoplastica / Italy
- Model:
- MIPET 2P
- Year of construction:
- 2024
- Condition:
- new
Price & Location
- Location:
- Volmerstrasse 7A, 12489 Berlin, Deutschland

Call
Details about the offer
- Listing ID:
- A214-52987
- Update:
- 09.03.2026
Description
TECHNICAL DATA SHEET
PET Stretch-Blow Molding Machine
Ready for loading, including molds
General Information
Machine Model: MIPET-1P
Manufacturer: Meccanoplastica Group (Italy/Spain)
Machine Type: Fully Electric Linear Stretch-Blow Moulding Machine
Application: Production of PET bottles for detergents and liquid products
Bottle Capacity Range: 100 ml – 2.5 L
Production Performance
Production Output: 1,000 – 1,200 bottles/hour
Cavity: Single cavity
Bottle Shape: Round / Oval
Typical Neck Size: 28/410 (to be confirmed)
Bottle Specifications
Bottle Volume: 0.25 L – 2.5 L
Maximum Bottle Diameter: 120 mm
Maximum Bottle Height: 350 mm
Preform Neck Diameter Range: 18 – 42 mm
Machine Electrical Specifications
Power Supply: 400 VAC – 3 Phase + Neutral + Earth
Frequency: 50 Hz
Installed Power: 35 kW
Average Power Consumption: approx. 12 kWh
Air Requirements
Low Pressure Air
Max pressure: 10 bar
Air consumption: max. 30 m³/h
High Pressure Air
Pressure: 35 – 40 bar
Air consumption: max. 160 m³/h
Air Quality
Dry compressed air required
Water Cooling Requirements
Water pressure: 3 – 5 bar
Water temperature: 8 – 16 °C
Cooling capacity: 9,000 Kcal/h
Heating Oven System
Total Heating Power: 27 kW
Heating Modules: 3
Heating Zones: 8 zones per module
Infrared Lamps: 8 lamps per module
Voltage Adjustment: 0 – 220 VAC (single phase)
Stretch-Blow System
Stretch Force: 280 kg
Pre-blow Pressure Range: 0 – 15 bar
Approach Stroke: 500 mm
Preform Conveying System
Number of Carrying Plates: 46
Plate Size: 80 × 140 mm
Independent preform carrier system for high reliability and safety
Machine Dimensions
Length: 2,900 mm
Width: 1,600 mm
Height (including preform loader): 2,064 mm
Machine Weight: approx. 2,000 kg
Control System
PLC: Siemens
Electrical Components: Siemens / Gefran
Servo Motors: Siemens
Control Interface: Digital display with full parameter control and alarm system
Standard Equipment
Preform hopper
Inclined belt preform elevator
Preform feeder / unscrambler
Bottle discharge conveyor
Fjdpoyr Ag Njfx Aamsfw
Online modem for remote technical assistance
Recommended spare parts kit
Machine Advantages
Fully electric operation
Compact design with easy maintenance access
High reliability with independent preform carrier system
Advanced safety features
Suitable for small and medium production capacities
The listing was translated automatically. Translation errors are possible.
PET Stretch-Blow Molding Machine
Ready for loading, including molds
General Information
Machine Model: MIPET-1P
Manufacturer: Meccanoplastica Group (Italy/Spain)
Machine Type: Fully Electric Linear Stretch-Blow Moulding Machine
Application: Production of PET bottles for detergents and liquid products
Bottle Capacity Range: 100 ml – 2.5 L
Production Performance
Production Output: 1,000 – 1,200 bottles/hour
Cavity: Single cavity
Bottle Shape: Round / Oval
Typical Neck Size: 28/410 (to be confirmed)
Bottle Specifications
Bottle Volume: 0.25 L – 2.5 L
Maximum Bottle Diameter: 120 mm
Maximum Bottle Height: 350 mm
Preform Neck Diameter Range: 18 – 42 mm
Machine Electrical Specifications
Power Supply: 400 VAC – 3 Phase + Neutral + Earth
Frequency: 50 Hz
Installed Power: 35 kW
Average Power Consumption: approx. 12 kWh
Air Requirements
Low Pressure Air
Max pressure: 10 bar
Air consumption: max. 30 m³/h
High Pressure Air
Pressure: 35 – 40 bar
Air consumption: max. 160 m³/h
Air Quality
Dry compressed air required
Water Cooling Requirements
Water pressure: 3 – 5 bar
Water temperature: 8 – 16 °C
Cooling capacity: 9,000 Kcal/h
Heating Oven System
Total Heating Power: 27 kW
Heating Modules: 3
Heating Zones: 8 zones per module
Infrared Lamps: 8 lamps per module
Voltage Adjustment: 0 – 220 VAC (single phase)
Stretch-Blow System
Stretch Force: 280 kg
Pre-blow Pressure Range: 0 – 15 bar
Approach Stroke: 500 mm
Preform Conveying System
Number of Carrying Plates: 46
Plate Size: 80 × 140 mm
Independent preform carrier system for high reliability and safety
Machine Dimensions
Length: 2,900 mm
Width: 1,600 mm
Height (including preform loader): 2,064 mm
Machine Weight: approx. 2,000 kg
Control System
PLC: Siemens
Electrical Components: Siemens / Gefran
Servo Motors: Siemens
Control Interface: Digital display with full parameter control and alarm system
Standard Equipment
Preform hopper
Inclined belt preform elevator
Preform feeder / unscrambler
Bottle discharge conveyor
Fjdpoyr Ag Njfx Aamsfw
Online modem for remote technical assistance
Recommended spare parts kit
Machine Advantages
Fully electric operation
Compact design with easy maintenance access
High reliability with independent preform carrier system
Advanced safety features
Suitable for small and medium production capacities
The listing was translated automatically. Translation errors are possible.
