Band Saw

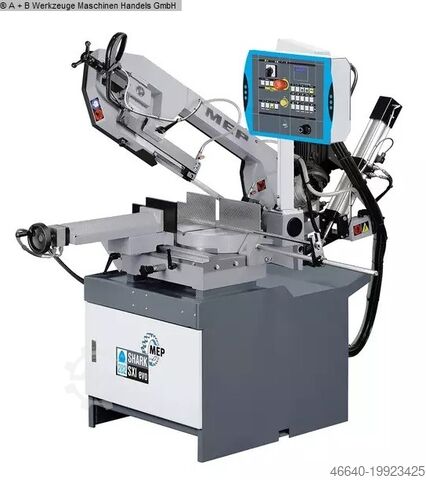

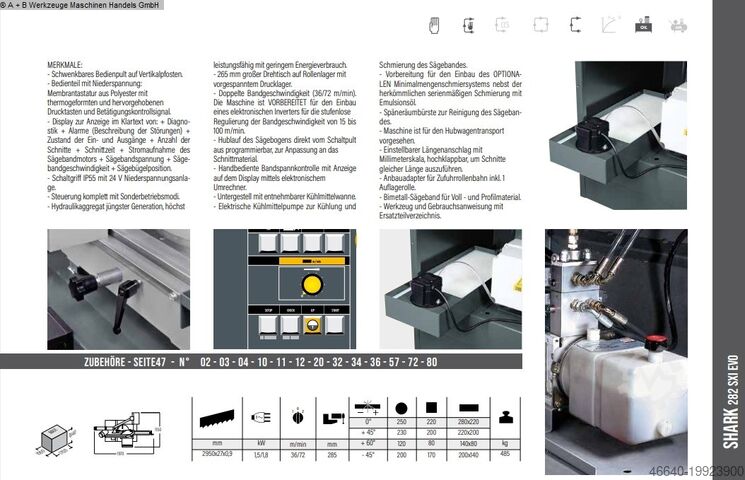

MEP - Halbautomat SHARK 282 SXI EVO

Condition: new, cutting diameter 250 mm capacity 90 degrees: flat 280 x 220 mm capacity 90 degrees: square 220 x 220 mm capacity 45 degrees: flat 220 x 200 mm capacity 45 degrees: round 230 mm capacity 45 degrees: square 200 x 200 mm capacity 60 degrees: flat 140 x 100 mm capacity 60 degrees: square 100 x 100 mm capacity 60 degrees: round 150 mm vice 285 mm turning speed range: 36/72 m/min dimensions of saw-band 2950 x 27 x 0,9 mm total power requirement 1,5 / 1,8 kW weight of the machine ca. 460 kg dimensions of the machine ca. 1150 x 1970 mm Equipment: - robust electro-hydraulic semi-automatic band saw (INDUSTRY) - with miter cuts from 45° right to 60° left * Miter adjustment via large turntable Nodpfxjxaa S Re Ab Iocl - MEP microprocessor control EVO to control all functions * front right, rotatable - optional manual or automatic lowering of the saw bow * stepless adjustment of the saw bow lowering - saw band guide made of hard metal plates - hydraulic saw band tension - including digital value display - 2x saw band speeds - 1x BI-metal saw band - 1x angle stop - chip removal brush - machine base frame with forklift pockets - operating instructions in German Functioning of semi-automatic operation: - electro-hydraulic clamping of the vice - electro-hydraulic lowering of the saw bow - electro-hydraulic raising of the saw bow - electro-hydraulic opening of the vice SPECIAL ACCESSORIES INCLUDED: - MEP LubeCut micro dosing device

Condition: new, Year of construction: 2024, cutting range round steel at 45°: 108 mm, cutting range round steel at 90°: 108 mm, cutting height (max.): 150 mm, BERG+SCHMID GBS 218 Eco AutoCut double mitre bandsaw Speed: 25-80 m/min - Mitre left 60° - For cutting steel, stainless steel and aluminum profiles - Quick-clamping vice with quick-clamping device a. - Built-in blade tension control b. - Saw blade guide made of carbide c. - Electric automatic cooling system - Machine base (supplied disassembled) The AutoCut system consists of: Nedpfxet I R Edj Ab Iecl - Hydraulic cylinder, feed control, spring assembly, limit switch and enables three work sequences: 1. automatic lowering of the saw frame via hydraulic cylinder with infinitely adjustable feed control valve and limit switch at the end of the cut 2. high-speed lowering of the saw frame from the rest position up to the workpiece, then switching to normal saw feed 3. manual operation - hydraulic cylinder works as a brake cylinder Saw blade dimensions: 2455x27x0.9mm Further accessories such as saw bands, roller conveyors, measuring stops, minimum quantity lubrication etc. available on request! Delivery time: ex stock Waiblingen Beinstein

Condition: new, Model Name Ncsdpfx Ajgvkcteb Iel Shark 282 SXI evo

Condition: new, Cutting range at 90 degrees: round 220 mm Cutting range at 90 degrees: square 210x210 mm Cutting range at 90 degrees: flat 230x185 mm Cutting range at 45 degrees left: around 150 mm Cutting range at 45 degrees left: square 150x150 mm Cutting area at 45 degrees left: flat 150x210 mm Cutting range at 60 degrees left: around 90 mm Cutting area at 60 degrees left: square 90x90 mm Cutting range at 60 degrees left: flat 90x100 mm Saw blade dimensions 2450x27x0,9 mm cutting speed 35/70 m/min working height 915 mm vice opening 265 mm total power requirement 1,2 kW Machine weight approx. 240 kg Space requirement approx. 1550x870x1740 mm The Zimmer Z241/R is a self lowering saw for mitre cuts from 0° - 60° left. After the cut the machine stops by a safety limit switch. The lowering is infinitely variable via a hydraulic system. The manual lifting of the saw arm after the cut can be done at any position. The saw arm remains in the desired position. Standard equipment: - with ICS lowering - Saw arm can be swivelled up to 60° to the right - Quick-action vice - Band guide made of carbide - hydraulic saw blade tensioning, tensioning pressure indicator, blade breakage switch-off Ncodpfehcw S Sjx Ab Iol - incl. coolant device - incl. machine base cabinet - hydraulic cylinder - emulsion pump - eccentric clamp - saw band - 400 V plug 16 A

Condition: new, capacity 90 degrees: round 255 mm capacity 90 degrees: square 240 mm 300 x 180 saw band length 2.765 x 27 x 0,9 mm mm table height 950 mm Nedpfx Asurc S Reb Iocl band speed 35 + 70 m/min total power requirement 1,5/1,8 kW weight of the machine ca. 0,42 t dimensions of the machine ca. 1,23 x 1,7 x 1,75 m Double miter metal band saw, GBS 250 Super AutoCut (20413) - Miter cuts up to 60° left and 45° right - Ball bearing rotary table Quick clamping device Solid, large material support Automatic cooling

Condition: good (used), 4 x eccentric press Ncodpfeq Rdr Tox Ab Isl Ebu / Weingarten consisting of the following types: 1 x Ebu 15 1 x Ebu 25 2 x Ebu 35 1 x Weingarten A 40 The machines can be inspected on site.

Condition: new, cutting diameter 240 mm dimensions of saw-band 2730 x 27 x 0,9 mm table height 920 mm cutting speed 35 + 70 m/min 240 mm Ncsdexpi Aqjpfx Ab Iel stroke back stop 230 mm cross-slide 270x230 210 Impact energy 200 Air consume per blow 200x210 130 mm 130 mm 130x160 mm total power requirement 1,2 kW weight of the machine ca. 0,26 t dimensions of the machine ca. 0,9 x 1,6 x 1,74 m New, unused display machine! • Left miter 60°
