Bandsaw - Horizontal

MEP SHARK 282 CCS

Condition: new, Model Name Nodpfx Afsgvkbcjxjlh Shark 282 CCS

Condition: used, Year of construction: 2007, cutting diameter 250 mm saw band length 2950 x 27 x 0,9 mm band speed 36/72 m/min Nlsdpfx Afoxfwbysxeh total power requirement 1,8 kW weight of the machine ca. 320 kg Dimensions (LxWxH) 1,5 x 0,9 x 1,4 0

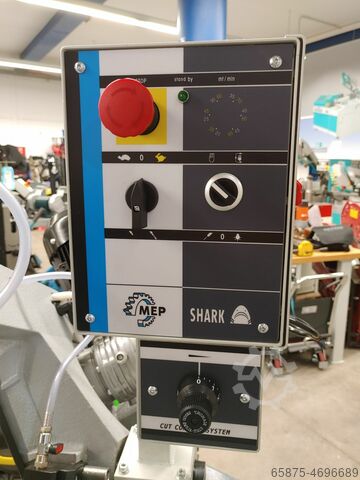

Condition: new, Year of construction: 2024, * manual cutting cycle * autom. cut: (via selector switch) with infinitely variable adjustment of the lowering speed and adjustment of the cutting pressure via compensation spring * Sturdy, torsion-resistant and low-vibration saw frame made of cast steel * large, easily adjustable and mounted turntable, centered by central axis bolts with indexing at 0° / 45° / 60° and internal table clamping for intermediate angles * Vise with quick adjustment * HM band guides for highest cutting precision * hydraulic unit for saw blade tensioning and monitoring with display on manometer * clearly arranged control panel with all control elements * Base frame, coolant trough, coolant pump, chip brush * cutting diameter 250 mm * Cutting width 280 mm * saw blade dimensions 2950 x 27 x 0.9 mm * Vise opening max. 285 mm * belt speed 36 / 72 m/min * Cutting range at 90 degrees: round 250 mm * Cutting range at 90 degrees: square 220 mm Nsdpfx Aoftmxvsfxslh * Cutting range at 90 degrees: flat 280 x 220 mm * Cutting range at 60 degrees: round 120 mm * Cutting range at 60 degrees: flat 140 x 80 mm * Cutting range at 60 degrees: square 80 mm * Cutting range at 45 degrees: around 200 mm * Cutting range at 45 degrees: flat left 220 x 200 / right mm * Cutting range at 45 degrees: square left 200 / right 170 mm * Machine weight approx. 0.4 t * Space requirement approx. 1.8 x 1.3 x 1.8 m

Condition: as good as new (ex-display), Year of construction: 2023, saw band length: 2,950 mm, saw band width: 27 mm, type of input current: DC, cutting range round steel at 45°: 230 mm, cutting range round steel at 90°: 250 mm, cutting height (max.): 285 mm, Title MEP SHARK 282 CCS [with semi-automatic lowering] Article number SH282CCS Motor power 1.5/1.8 kW Belt opening 285 mm Belt dimensions 2950x27x0.9 mm Weight 440 kg Speed 36/72 m/min. Cutting surface 0° 250 / 220x220 / 280x220 Cutting surface 45° right 230 / 200x200 / 220x200 Cutting surface 45° left 200 / 170x170 / 200x140 Cutting surface 60° right 120 / 80x80 / 140x80 Cutting surface 60° left Description MEP sawing machine: Basic equipment: Vice with quick adjustment and adjustable guide rails Hydraulic band clamping device with clamping pressure indicator Underframe with removable coolant tray Chip clearing brush Adjusted precision stops for cuts of 0°, 45° and 60° left and 45° right Length stop for cuts of the same length Material support arm, simultaneous connection option for roller conveyor/loading side Turntable for double mitre cuts Machine is designed for pallet truck/forklift transport M2 bi-metal band saw blade for solid and profiled material Tools and operating instructions Electrical equipment: Control panel labeled cable connections Control lamp for operational readiness Main safety switch Emergency stop button Speed changeover switch Thermomagnetic protection Undervoltage release Control handle IP 55 protected Njdpfxjw N N Alj Afxslh Phase comparator Low voltage system 24 Volt Electrical coolant system 48 V (attachment of a micro-spraying device possible) Motor 1.5/1.8 KW 2 speeds 36/72 m/min. Vice opening 285 Saw band 2950 x 27 x 0.9 Weight 440 kg

Condition: new, cutting diameter 250 mm capacity 90 degrees: flat 280 x 220 mm capacity 90 degrees: square 220 x 220 mm capacity 45 degrees: round 230 mm capacity 45 degrees: flat 220 x 200 mm capacity 45 degrees: square 200 x 200 mm capacity 60 degrees: flat 140 x 100 mm capacity 60 degrees: square 100 x 100 mm capacity 60 degrees: round 110 mm vice 285 mm turning speed range: 36/72 m/min saw band length 2.950 x 27 x 0,9 mm Nlodpexabpwjfx Afxsh total power requirement 1,5/1,8 kW weight of the machine ca. 440 kg. dimensions of the machine ca. 1620 x 1360 mtr. Equipment: - robust electro-hydraulic band saw (INDUSTRY) - large bearing-mounted rotary table * for miter cuts from 45° right to 60° left - automatic saw bow lowering * with continuously adjustable feed * limit switch at the end of the cut - manual cutting function selectable - saw band guide made of hard metal plates - 1x saw band - 1x angle stop - moving chip removal brush - control panel - front right - hydraulic pressure box for saw band tension * with analogue pressure display (manometer) - machine base frame with forklift pockets - operating instructions in German SPECIAL ACCESSORIES INCLUDED: - MEP LubeCut micro dosing device

Condition: new, cutting diameter 250 mm capacity 90 degrees: flat 280 x 220 mm capacity 90 degrees: square 220 x 220 mm capacity 45 degrees: round 230 mm capacity 45 degrees: flat 220 x 200 mm capacity 45 degrees: square 200 x 200 mm capacity 60 degrees: flat 140 x 100 mm capacity 60 degrees: square 100 x 100 mm capacity 60 degrees: round 110 mm vice 285 mm turning speed range: 36/72 m/min saw band length 2.950 x 27 x 0,9 mm total power requirement 1,5/1,8 kW weight of the machine ca. 440 kg. dimensions of the machine ca. 1620 x 1360 mm Equipment: - robust electro-hydraulic band saw (INDUSTRY) - large bearing-mounted rotary table * for miter cuts from 45° right to 60° left - automatic saw bow lowering * with continuously adjustable feed * limit switch at the end of the cut Nedpfsxaarkex Afxolh - manual cutting function selectable - saw band guide made of hard metal plates - 1x saw band - 1x angle stop - moving chip removal brush - control panel - front right - hydraulic pressure box for saw band tension * with analogue pressure display (manometer) - machine base frame with forklift pockets - coolant system - operating instructions in German
