Band sawMETALLKRAFT
BMBS 300 x 320 HA-DG
Machine data
Price & Location
- Location:
- Otto-Lilienthal-Straße 36, 71034 Böblingen, Deutschland
Details about the offer
- Listing ID:
- A429-7977
- Update:
- 26.03.2025
Description

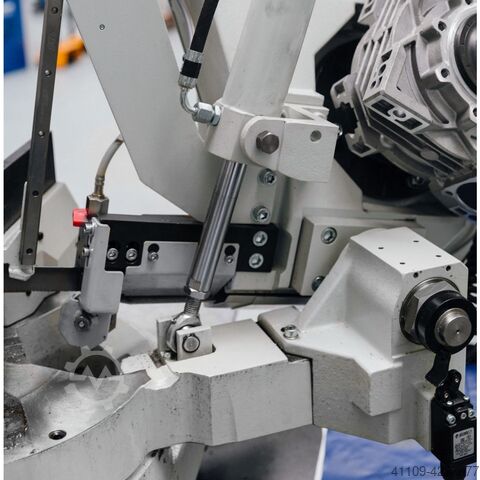

Picture shows optional equipment
Semi-automatic swing frame metal band saw for miter cuts from +60° to -45° with frequency converter
For sawing hollow sections and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastics
Sawing functions hydraulically controlled
Saw blade drive with low-maintenance, oil-lubricated worm gearbox
With robust three-phase motor with overload protection
Bearing mounted rotary table
After starting the cutting cycle, the vice clamps automatically - after the process is finished, the vice returns to the starting position (HA-DG)
Saw arm inclined by 25°, thus longer service life of the saw band
Swiveling saw arm from +60° to -45
With chip clearing brush for optimal cleaning and maintenance of the saw band
With frequency converter: allows infinitely variable adjustment of the saw band speed from 20 - 100 m/min.
BRP - saw band monitoring
Hydraulic vice with manual quick clamp for lateral adjustment
Cedpefdgi Hsfx Abwohc
Limit switches control the upper and lower position of the saw arm
No adjustment of the upper end point necessary
Cut detection function with integrated pushbutton
HM saw band guides
Swiveling control panel
Scope of delivery:
Saw band
Operating tool
Length stop 1 meter
Coolant pump
Technical data:

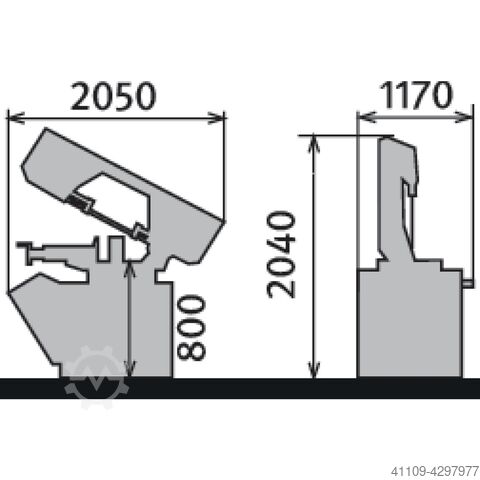

Length (product) approx. 2050mm
width/depth (product) approx. 1170mm
Height (product) approx. 2040mm
Weight (net) approx. 650kg
Power drive motor: 2,4kW
Supply voltage: 400V
Mains frequency: 50Hz
Saw band speed(s): 20 - 100m/min Speed steps: infinitely variable
saw band length: 3660mm
saw band width: 27mm
saw band thickness: 0,9mm
Cutting range 0° round (tube): 300mm
Cutting range 0° round (solid material): 300mm
Cutting range 0° rectangular lying (hollow profile): 320 x 290mm Cutting range 0° bundle (tube): 320 x 160mm
Cutting range -45° round (tube): 300mm
Cutting range -45° round (solid material): 300mm
Cutting range -45° rectangular lying (hollow section): 300 x 280mm Cutting range -60° round (tube): 200mm
cutting range -60° round (solid material): 200mm
Cutting range -60° rectangular lying (hollow profile): 190 x 200mm
Cutting range +45° round (tube): 270mm
Cutting range +45° round (solid material): 270mm
Cutting range +45° rectangular lying (hollow profile): 270 x 200mm
Table height material feed: 800mm
