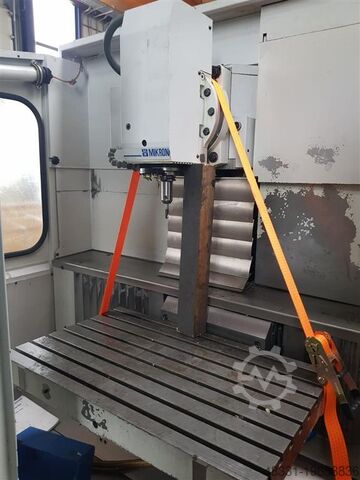

Tool Room Milling Machine - Universal

MIKRON UMS600

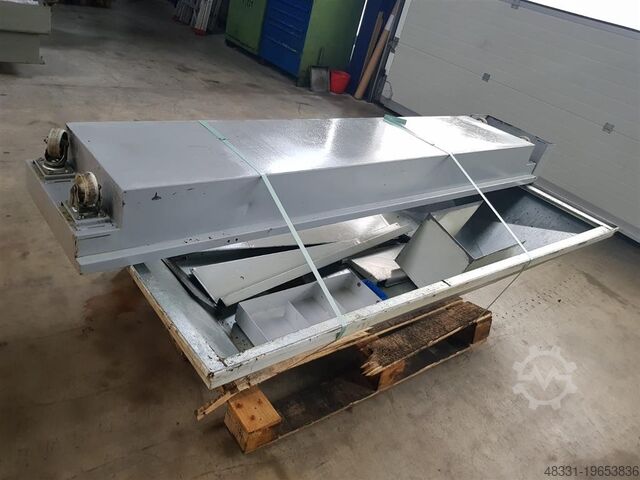

Condition: good (used), Year of construction: 1996, Parts shown by hand not come. Machine have 2 spindles. One for 6.300 min-1 SK 40 Hodpfxeruauqe Afpsnu Second up to 42.000 min-1 HSK E40. Spindle replaced 2018.

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 5.47.07.02, feed length X-axis: 600 mm, feed length Y-axis: 500 mm, feed length Z-axis: 450 mm, rotational speed (max.): 6,300 rpm, number of slots in tool magazine: 44, TECHNICAL DETAILS Drive power at 44% duty cycle: 9 kW Drive power at 100% duty cycle: 6 kW Max. torque: 52 Nm Machining spindles (vertical and horizontal) Max. torque at the spindle at 44% duty cycle: 800 Nm Number of gear stages: 4 Speed range adjustable (vertical and horizontal): 10 – 6,300 rpm Tool holder / Pull stud: SK 40 / DIN 69871 Max. tool weight: 13 kg Tool diameter: 130 mm Pull force: 10,000 N Ejector force: 3,500 N Travel paths in automatic mode Longitudinal movement, spindle feed (X-axis): 600 mm Cross movement, spindle slide (Y-axis): 500 mm Vertical movement, spindle slide (Z-axis): 450 mm Feed drive (AC) Feed rate programmable X / Y axis: 0 – 15,000 mm/min Feed rate programmable Z axis: 0 – 12,000 mm/min Rapid traverse speed X-/Y-axis: 15,000 mm/min Rapid traverse speed Z-axis: 12,000 mm/min Coolant Coolant tank capacity: 150 l Flow rate: approx. 20 l/min Noise emission Sound power: 75 dB(A) Clamping table Table size: 530 × 900 mm Number of T-slots: 4 T-slot width: 14 H7 Table load capacity: 400 kg Hnjdpfx Afjwm I N Hspou Tool changer TCD 44 Tool stations: 2 × 22 Tool diameter: 80 / 130 mm Tool length (max.): 350 mm Tool weight (max.): 6 kg Workpiece weight max. in drum magazine: 200 kg Chip-to-chip time: 20-25 s Tool change time: 12 - 16 s MACHINE DETAILS Total weight with protective enclosure: 3,000 kg Total weight with cabin roof: 3,100 kg Ambient conditions Max. permissible ambient temperature: 35 °C Max. permissible relative humidity: 75 % Electrical connection data Total installed nominal power: 15.8 kW Utilized and connection power: 12.3 kW Operating voltage and frequency: 3 × 400 V / 50 Hz
