Mikron WF31D TNC355 Precision Milling and Drilling Machine CNC Tool Milling Machine

Mikron WF31D

Mikron WF31D Precision Milling and Drilling Machine

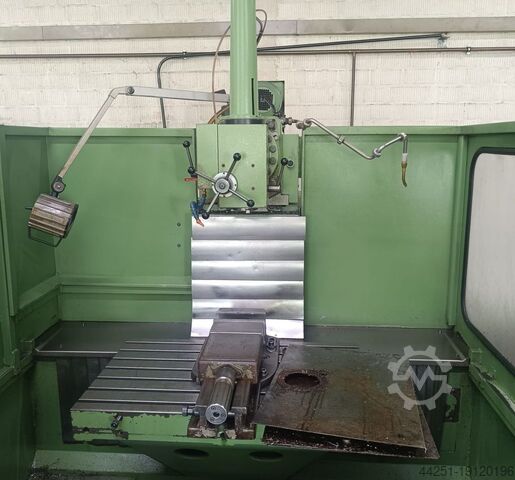

Machine with chip and splash guard enclosure
Equipped with a Heidenhain TNC355 control system

Technical Specifications

The WF 31 D is a precision milling and drilling machine for series production and CNC training.
Drive via an automatically switchable stepped gearbox and Poly-V belt.
Vertical spindle can be extended by 90 mm; conversion from vertical to horizontal machining is possible.
Ball screws with DC drives enable simultaneous feed movements.
Guides are protected against dust, chips and coolant.

Technical Data

Manufacturer: Mikron
Type WF31D
Control system: Heidenhain TNC 355
Longitudinal movement (X): 560 mm
Transverse movement (Y): 500 mm
Vertical movement (Z): 400 mm
Drive power: 3.3/4.0 kW
Speed range: 40-4000 rpm
Feed rate: 2-3000 mm/min
Rapid traverse rate X/Y: 6000 mm/min, Z: 5000 mm/min

Electrical Equipment

Total installed rated power: 10.0 kW
Installed useful power: 7.3 kW
Operating voltage: 3 x 380 V - 50/60 Hz
Protection class: IP 54
Max. permissible ambient temperature: +35 °C
Relative humidity: 75 %.

Dimensions and Weights
Guedpfowiucfsx Aqgsh

Width: 2450 mm
Length: 2800 mm
Height: 2000 mm

Net weight of the machine: approx. 2570 kg.

Heidenhain TNC355 Operating Manual

Heidenhain TNC355 Programming Examples

Heidenhain TNC 355 Service Manual
