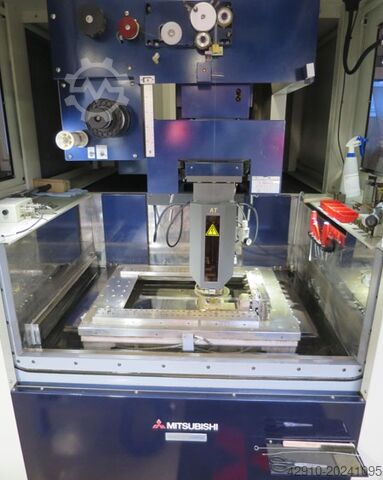

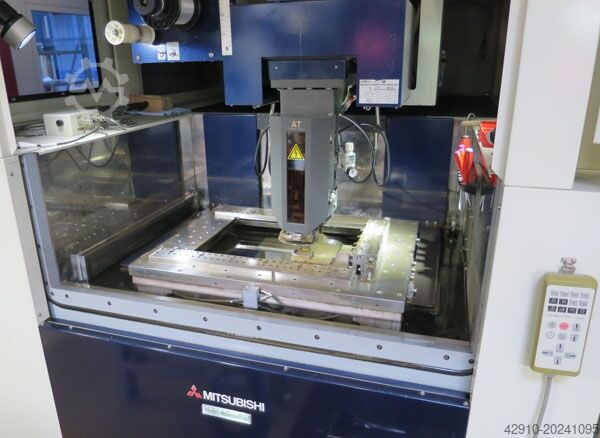

CNC Wire EDM

MITSUBISHI PA20

Condition: used, Year of construction: 2006, Wire erosion / EDM Travel distance X: 500 mm Travel distance Y :350 mm Travel distance Z: 300 mm max. workpiece size X: 1050 mm max. workpiece size Y: 800 mm max. workpiece size Z: 295 mm max. workpiece weight: 1500 kg table size X: 780 mm table size Y: 630 mm with AWF ( Automatic Wire Feeding ) Dcjdew S Egfopfx Acwon U / V axis: 42 mm generator: 50 Ampere submerged

Condition: good (used), Year of construction: 2005, operating hours: 60,000 h, functionality: fully functional, workpiece weight (max.): 1,500 kg, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 300 mm, workpiece width (max.): 1,050 mm, No reserve price - guaranteed sale at the highest bid! Condition: Machine has been resealed at the basin TECHNICAL DETAILS Max. workpiece dimensions (W x D x H): 1,050 mm x 800 mm x 295 mm Max. workpiece weight: 1,500 kg Max. workpiece weight: 780 x 630 kg Table dimensions: 780 x 630 kg Axes movement range (X, Y, Z): 500 mm x 350 mm x 300 mm Axis speed (rapid traverse): 0.1 m/s Wire diameter: 0.1 - 0.3 mm Wire tension: 0.1 - 0.25 N Bevel cut unit axis travel range (U x V): ±21° x ±21° Detection method for each axis position (X, Y, U, V): Linear scale Dielectric liquid tank Working volume: 750 l Filter flow rate: 60 l/min Filtration accuracy: 3 μm Filter element: Paper filter x 2 Dielectric conductivity (range): 0.5 - 30 x 10^4 Ωcm External dimensions (W x D x H): 880 mm x 2,070 mm x 1,565 mm Weight (dry): 400 kg Dcsdjvphzvopfx Acwjn MACHINE DETAILS External dimensions (W x D x H): 2,210 mm x 2,873 mm x 2,150 mm Weight: 3,500 kg
