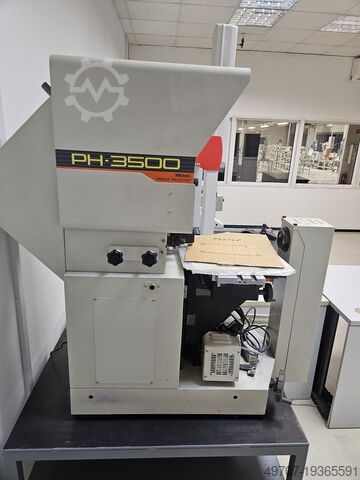

Profile projectorMitutoyo PH3500
Mitutoyo PH3515F
Basic data
- Machine type:
- Profile projector
- Manufacturer:
- Mitutoyo PH3500
- Model:
- Mitutoyo PH3515F
- Condition:
- excellent (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Tata, 2890 Hungary
Technical details
Dimensions and weight
Power details
Equipment
Processable material / products
Axis specifications
Details about the offer
- Listing ID:
- A193-65591
- Reference number:
- ct2222
- Update:
- 04.11.2025
Description
Used Mitutoyo PH3515F for sale in good condition.
Manufacturer: Mitutoyo
Type: PH3515F
Built-in linear scale
Magnification: 10x
Display size: 353mm
Digital angle measurement with 1' or 0.01° accuracy.

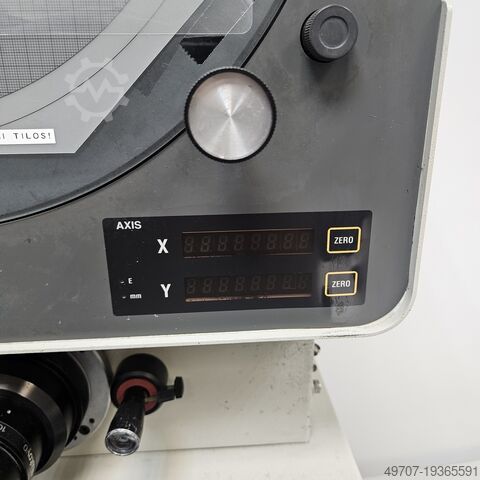

Built-in linear scales for use with optional display counters.
+/-0.1% or less (contour), +/-0.15% or less (surface)
Working area range
X-axis horizontal movement: 254
Y-axis vertical movement: 152
Ibodpfxewr U A Do An Iec
Table size: 450x146 mm
Light source: Halogen bulb 24V 150W
Suitable for thread pitch measurement – No blurred or distorted image when the workpiece is tilted.
Still image on the bright screen in the living room.
Standard dual fiber optic illumination.
14" (353 mm) diameter protractor screen with crosshairs and stepped lines for easy alignment.
Digital angle measurement with 1' or 0.01° accuracy.
Durable workpiece table features linear scales for fast and accurate measurement.
Height: 1155mm
Length: 1137mm
Width: 467mm
Weight: 155kg
