Coordinate measuring machine

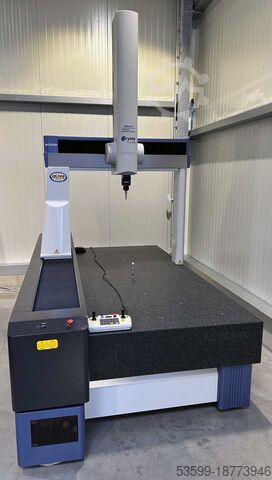

Mitutoyo Crysta Apex C 9208

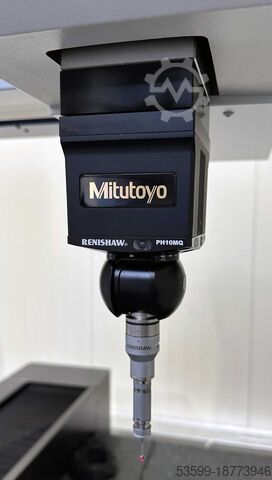

Condition: used, functionality: fully functional, measuring range X-axis: 700 mm, measuring range Y-axis: 700 mm, measuring range Z-axis: 600 mm, Equipment: type plate available, Mitutoyo Crysta Apex C776 coordinate measuring machine Temperature compensation on all axes Active vibration isolation system from BILZ X-axis measuring range = 700 mm Y-axis measuring range = 700 mm Z-axis measuring range = 600 mm Measurement uncertainty = 1.9 + 3L/1000 (µm) Renishaw PH10MQ probe head Renishaw SCR200 interchangeable rack Renishaw TP200 sensor Fjdjwhfh Ajpfx Abpspp Renishaw TP200 modules = 6 units MCosmos measuring software WIN10 PC system, 27" monitor Reference sphere / calibration sphere Optional software upgrade Optional hardware upgrade Full service available upon request

Condition: refurbished (used), Year of construction: 2004, measuring range X-axis: 900 mm, measuring range Y-axis: 2,000 mm, measuring range Z-axis: 600 mm, Mitutoyo CMM Crysta Apex C9206 Measuring ranges 900x2000x600mm Accuracy 1,7 + 3L/1000µm Slightly damaged V-Axis covers (will be replaced or delivered without) Software MCOSMOS-1 V3.5, Windows 10 PC or selectable upgrade to: - Mitutoyo MCOSMOS 4.2 incl Geopak & MCAT1000S or new license - EasyCMM I++ Server plus Inca Professional Probe Renishaw PH10T with either: Fpedsf S Tmvspfx Abpsp - Renishaw Touch probe TP200 - Renishaw Touch Probe TP20 Selectable options: - Scanning Probe Renishaw SP25 with PH10M - Probe Change Racks - New PH10M+ Head and Probe (upgrade) - MCOSMOS Offline license MCAT1000P - Bilz Pneumatic Vibration Damping System on demand Installation & Calibration (plus additional travel expenses) Including 3 Month Warranty (excl. travel expenses)

Condition: used, Year of construction: 2005, functionality: fully functional, measuring range X-axis: 700 mm, measuring range Y-axis: 1,000 mm, measuring range Z-axis: 600 mm, Equipment: type plate available, Mitutoyo Crysta Apex C7106 coordinate measuring machine Temperature compensation on all axes Active vibration isolation system from BILZ X-axis measuring range = 700 mm Y-axis measuring range = 1000 mm Z-axis measuring range = 600 mm Measurement uncertainty = 1.9 + 3L/1000 (µm) Renishaw PH10MQ probe head Renishaw SCR200 interchangeable rack Renishaw TP200 sensor Fpodpfx Aowhb A Nebpjp Renishaw TP200 modules = 6 units MCosmos measuring software WIN10 PC system, 27" monitor Reference sphere / calibration sphere Optional software upgrade Optional hardware upgrade Full service available upon request

Condition: refurbished (used), Year of construction: 2015, measuring range X-axis: 1,300 mm, measuring range Y-axis: 1,500 mm, measuring range Z-axis: 1,000 mm, workpiece weight (max.): 1,000 kg, type of input current: AC, Very large 3D CNC measuring machine without measurement software. RC1 controller, motors, scales, etc. were completely overhauled (retrofit) in 2015. Fitted with PH10 rotary swivel head, Renishaw TP20, and probe changer station. The machine frame base dates from 1998. Net measuring volume: X=1300mm, Y=1500mm, Z=1000mm. 3D positioning speed: 666 mm/s. Max. acceleration: 1000 mm/s. Resolution: 0.5 µm. MPE E: 5 + 6L / 1000. Machine is currently in our warehouse. Includes PC-DMIS 2025.1 Pro measuring software and computer with desk. Fully functional. Fpedjpiqilopfx Abpsp

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, Description: Mitutoyo Manufacturer: Mitutoyo Fsdpfx Abotxyv Iopspp Type: CV-500 The Contracer is complete with PC, software, monitor and vice.

Year of construction: 1998, condition: good (used), Zoller V520B Magnum Setting and Measuring Machine Manufacturer: Zoller Type: V 520 Magnum Year of manufacture: 1998 Technical specifications: Voltage: 230 V Compressed air: 4-6 bar Weight: 180 kg Under-table weight: 140 kg Fpsdoicaxqepfx Abpsp Maximum tool weight: Manual focusing: max. 1000 N Automatic focusing: max. 200 N Find more items - new and used - in our shop! International shipping costs upon request!

Condition: good (used), I am selling a set of Mitutoyo gauge blocks. The set is not complete. Fjdpfeu Sv Iyjx Abpjpp

Condition: excellent (used), Year of construction: 1999, Mitutoyo Euro C9166 Apex Measuring ranges 900x1600x600mm Accuracy 2,9 + 4L/1000µm Software selectable: - Mitutoyo MCOSMOS-1 V3 (upgrade V5 for € 4.000,--) - EasyCMM I++ Server plus Inca Professional (€ 8.000) Probe Renishaw PH1 with either: Fodpfxohtqxuj Abpjpp - Renishaw Touch probe TP200 - Renishaw Touch Probe TP20 Selectable options: - Renishaw PH10 (T oder M) - New PH10M or Tplus Head and Probe (upgrade) - Bilz Pneumatic Vibration Damping System on demand Installation & Calibration and software training (plus additional travel expenses) Including 3 Month Warranty on machine and probe (excl. travel expenses)

Condition: good (used), functionality: fully functional, Tested used 3D coordinate measuring machine Mitutoyo Euro C Apex 9166 - precision and durability We offer a used Mitutoyo Euro C Apex 9166 3D coordinate measuring machine on our marketplace, which was developed for large and complex workpieces. Despite its older age, this machine has been extensively tested and calibrated by our technicians to ensure that it continues to deliver accurate and reliable measurements. The Euro C Apex 9166 offers a generous measuring range and robust construction, ideal for companies looking for a tried and tested solution. Technical data: Measuring range: X = 900 mm, Y = 1600 mm, Z = 600 mm Accuracy: ±2.9 + 0.4 L/100 µm Drive: CNC-controlled, for fully automatic measuring processes Touch probe: Renishaw TP200 with automatic probe change Fpedpfeuyiv Tex Abpep Software: Mitutoyo MCOSMOS Advantages: Tested and reliable performance: This used Mitutoyo Euro C Apex 9166 has been fully tested and calibrated by our experts. Despite the older year of manufacture, the machine guarantees precise and repeatable measurement results. Large measuring range: With a measuring range of 900 mm x 1600 mm x 600 mm, this machine is ideal for inspecting large workpieces. Robust construction: The granite construction of the base ensures stability and enables precise measurements even during intensive use. Efficient automation: The CNC control and Renishaw TP200 touch probe enable fully automated and repeatable inspection, increasing production efficiency. Cost-effective investment: This machine offers an economical solution for companies looking for a proven and reliable 3D coordinate measuring machine. This used Mitutoyo Euro C Apex 9166 is ideal for companies that need a reliable and powerful 3D coordinate measuring machine for large workpieces. Despite its age, it remains a first-class choice for precise and automated measurements as it has been thoroughly tested by our metrology specialists

Condition: good (used), For sale: Mitutoyo micrometer set for external measurement in the range of 200–300 mm. Precise Japanese analog micrometer with an accuracy of 0.01 mm. The set includes everything shown in the photos. - Original Mitutoyo frame with lightweight construction - Measuring head with clear scale - Set of 4 measuring rods - 3 measuring anvils Fpodou S Slxjpfx Abpsp - Standards and adjustment tools - Multilingual user manual - Sturdy wooden case with foam insert Condition: The set is in like-new condition. All components are complete and well-maintained.
