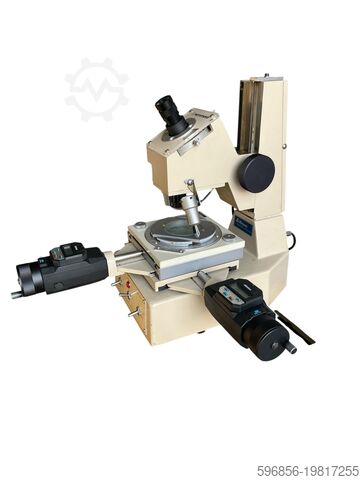

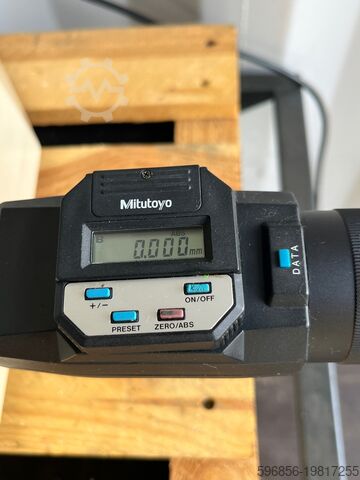

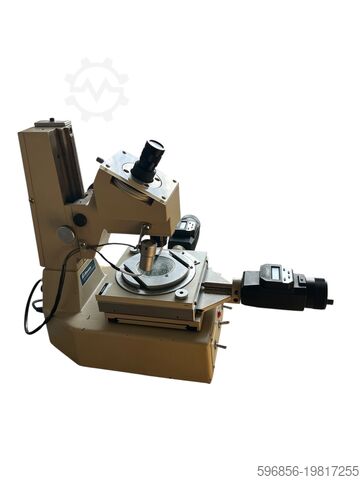

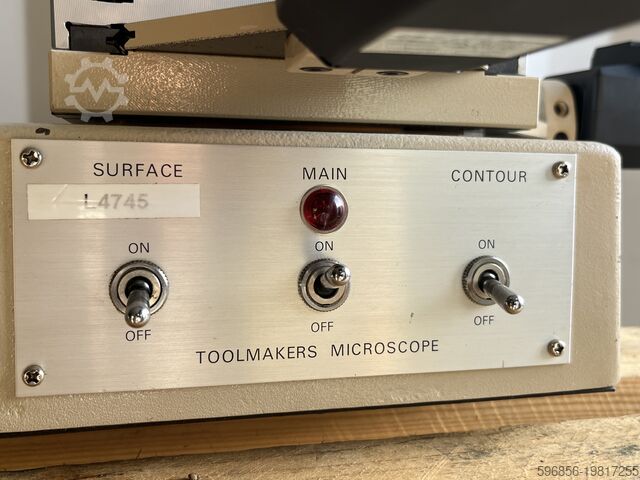

Mitutoyo TM-101 toolmaker's microscope with Mitutoyo digital readouts

Mitutoyo Mikroskop narzędziowy Mitutoyo TM-101 z odczytami cyfrowymi Mitutoyo

Condition: like new (used), Year of construction: 2017, operating hours: 59 h, functionality: fully functional, grinding length: 400 mm, grinding width: 200 mm, feed length X-axis: 510 mm, feed length Z-axis: 220 mm, feed rate X-axis: 20 m/min, grinding wheel diameter: 205 mm, distance table to spindle center: 357 mm, table load: 120 kg, type of input current: three-phase, grinding wheel width: 16 mm, spindle speed (max.): 3,600 rpm, spindle speed (min.): 1,000 rpm, overall weight: 2,100 kg, grinding spindle motor power: 2,200 W, grinding wheel speed: 3,600 rpm, input voltage: 400 V, Equipment: documentation/manual, TECHNICAL CHARACTERISTICS: Year of manufacturing: 2017 Colour touchscreen: Yes Maximum grinding lenght x width: 400 x 200 [mm] Stroke X axis (table movement): 510 [mm] Min. Stroke speed X axis: 100 [mm/min] Max. Stroke speed X axis: 20000 [mm/min] Z axis travel (transverse movement): 220 [mm] Min. distance spindle nose / table: 22.5 [mm] Max. distance spindle nose / table: 357.5 [mm] Max. load on table: 120 [Kg] Grinding wheel min. speed: 1000 [rpm] Dsdpfew Hf Hijx Ah Seul Grinding wheel max. speed: 3600 [rpm] Grinding spindle motor power: 2.2 [kW] Max. diameter grinding wheel: 205 [mm] Max. grinding wheel width: 16 [mm] Min. grinding wheel width: 6 [mm] Grinding wheel bore: 31.75 [mm] Number of running hours: 59 [h] Supply voltage: 400 [V] Total power required: 11 [kVA] Weight : 2100 [Kg] INCLUDED EQUIPMENT: x1 150 [L] coolant tank FB1/R with papertape filtration unit FB1 x1 BRAILLON electro-permanent magnetic chuck type EPEFINE 2 x1 BRAILLON magnetic chuck remote control, microprocessor-based, type T10 x5 grinding wheel flanges x1 oil chiller x1 transformer x2 service keys x1 balancing shaft x1 set of axis-brackets for transport STANDARD CONVERSATIONAL PROGRAMMING MODE: Straight and angular dressing (standard) Surface grinding, multiple plunge grinding, and face grinding (standard) INCLUDED ISO PROFILING: Wheel profiling Contour machining of workpiece Full functionality for V-shape and freeform programming on the grinding wheel, and ISO contouring on the workpiece. Precise positioning integrated: +/- 1 [μm] Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Similar machine to brands like Jones & Shipman, Jung, Favretto, Blohm, Studer. Also see cylindrical grinder, lathe, machining center, milling machine.

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 211031, Country of manufacture: Switzerland Voltage: 380/50/3 Net weight: 740 kg Overall dimensions: 155 x 110 x 160 cm Installed power: 2.10 kW Customs tariff number: 8459.6930 TECHNICAL SPECIFICATIONS Vertical rectangular table: - usable surface: 740 x 200 mm - number of T-slots: 2 - width of T-slots: 12-H7 - distance between slots: 120 mm Fixed right-angle table: - usable surface: 700 x 250 mm - number of T-slots: 5 - width of T-slots: 12-H7 - distance between slots: 40 mm - possible lateral movement: 250 mm total Universal tilting table: - usable surface: 600 x 210 mm - number of T-slots: 4 - width of T-slots: 12-H7 - distance between slots: 40 mm - possible lateral movement: 350 mm total Adjustable in 3 planes, on either side: 30°-45°-30° Spindle internal taper: - horizontal spindle head: ISO 30 (40) - vertical spindle head: ISO 30 (40) - universal rapid head: SV E20+ES20 Swivel in vertical plane: vertical spindle head: 360° Longitudinal travel, hand/automatic: 320/300 mm Vertical travel, hand/automatic: 375/355 mm Cross travel, adjustment handle: 150 mm Quill stroke: 60 mm Readout accuracy on micrometer verniers: 0.02 mm Main motor power/speed: 1.5 kW/1500 rpm Rapid feed motor power/speed: 0.45 kW/3000 rpm Coolant device motor power/speed: 0.15 kW/3000 rpm Spindle speed range: - 1st range: 58-375 rpm - 2nd range: 330-2000 rpm Feed rates (longitudinal or vertical): 12-400 mm/min - 10 feed rates, mm/min: 12-18-26-38-57-85-125-185-270-400 Dedpfew Uc Npsx Ah Soul Rapid traverse speed (longitudinal or vertical): 1200 mm/min All technical data is given without obligation and subject to errors or omissions.

Condition: ready for operation (used), Year of construction: 2001, A Mitutoyo roundness analysis system without monitor is available. Rotation accuracy: 0.02 + H, rotation speed: 2/4/6/8/10 rpm, max. workpiece weight: 30kg, max. workpiece diameter: 500mm, machine weight: approx. 200kg, control: Roundpak-400, version: 3.002. Documentation available. On-site inspection is possible. Duodpfx Aov Ac Spjh Sol

Condition: ready for operation (used), Year of construction: 2000, A Mitutoyo CNC coordinate measuring machine calibrated at the end of 2024 is available. Measuring dimensions X/Y/Z: 705mm/705mm/60mm, traversing speed: 250mm/s, measuring speed: 1-3mm/s, acceleration: 980mm/s², resolution: 0.0005mm, table dimensions X/Y: 870mm/1320mm, max. workpiece height: 740mm, max. workpiece weight: 500kg. Machine dimensions X/Y/Z: approx. 1500mm/1550mm/2700mm, weight: approx. 1300kg, control: STATPAK in MCOSMOS-1 v4.2.R3. Documentation available. On-site inspection is possible. Expected to be available from the end of June 2025. Duodewd S Unopfx Ah Sel
