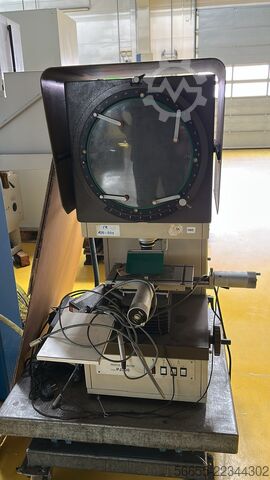

Profile projector

Mitutoyo PJ 300

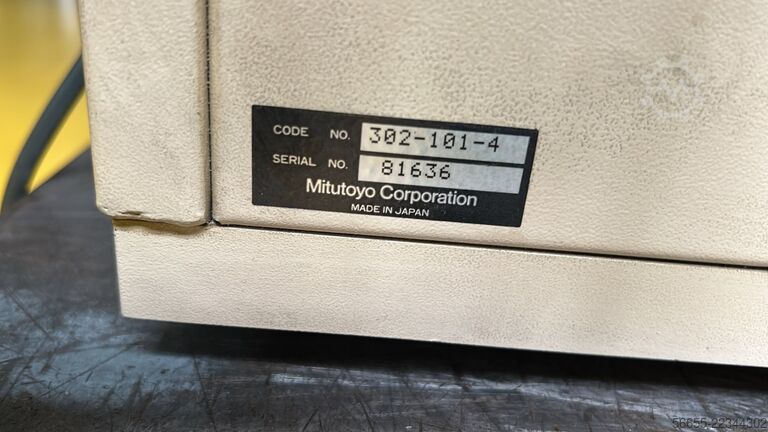

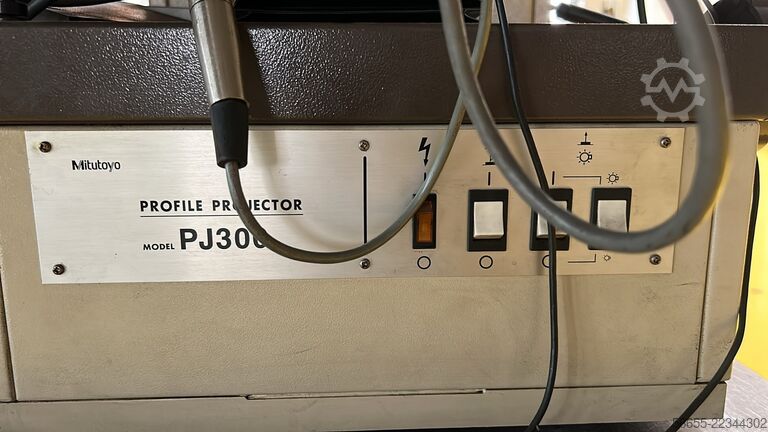

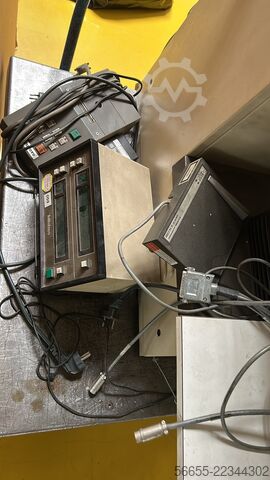

Condition: good (used), functionality: fully functional, machine/vehicle number: 302-101-4, travel distance X-axis: 110 mm, travel distance Y-axis: 55 mm, total width: 500 mm, total length: 1,000 mm, space requirement height: 1,100 mm, overall weight: 120 kg, For sale is a profile projector from the manufacturer Mitutoyo, type PJ 300. The item is in good condition. Technical data: Device type / series: Vertical profile projector PJ-300H Code No.: 302-101-4 Serial number: 81636 Manufacturer: Mitutoyo Corporation Screen diameter (effective): Ø 300 mm Projection image: Side-correct, upright Angle scale / rotation: 360° rotatable screen, digital angle counter Angle resolution: 1' or 0.01° Crosshair: 90° solid lines Standard objective magnification: 10X (optionally expandable to 20X, 50X, 100X) Through-light illumination (contour): Halogen light source (24 V, 150 W) with integrated heat protection filter / Telecentric system Top-light illumination: Halogen light source (24 V, 150 W) for excellent detail visibility Brightness control: 2-stage for optimal adjustment to the workpiece XY-axis detection: Integrated digital display (XY counter) directly next to the screen for ergonomic operation Interfaces: Data output RS-232C (for connection to measuring software, e.g. QM-Data200 or PC) Power supply: 100 - 240 V AC, 50/60 Hz Power consumption: approx. 400 W Net weight: approx. 110 kg - 120 kg Dimensions (W x D x H): 677 mm x 646 mm x 1,004 mm On request, transport and loading can be arranged throughout Europe for an additional charge. Prices are plus VAT. Hfsdpfx Ahjzl Sr Tszei Inspection is possible by appointment. Contact us, our team will be happy to assist you further. Trade-in or exchange is possible! Machine purchase / sale BUYING / SELLING PRODUCTION & METALWORKING MACHINES AND MORE. Do you need a high-quality but affordable metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit our website.

Condition: good (used), functionality: fully functional, machine/vehicle number: 302-101-4, travel distance X-axis: 110 mm, travel distance Y-axis: 55 mm, total width: 500 mm, total length: 1,000 mm, space requirement height: 1,100 mm, overall weight: 120 kg, For sale is a profile projector from the manufacturer Mitutoyo, model PJ 300. The item is in good condition. Technical data: Device type / series: Vertical profile projector PJ-300H Code No.: 302-101-4 Serial number: 81636 Manufacturer: Mitutoyo Corporation Screen diameter (effective): Ø 300 mm Projection image: Side-correct, upright Angle scale / rotation: 360° rotatable screen, digital angle counter Angle resolution: 1' or 0.01° Crosshair: 90° solid lines Standard objective magnification: 10X (optionally expandable to 20X, 50X, 100X) Through-light illumination (contour): Halogen light source (24 V, 150 W) with integrated heat protection filter / telecentric system Top-light illumination: Halogen light source (24 V, 150 W) for excellent detail visibility Brightness control: 2-stage for optimal adjustment to the workpiece XY-axis detection: Integrated digital display (XY counter) directly next to the screen for ergonomic operation Interfaces: Data output RS-232C (for connection to measuring software, e.g. QM-Data200 or PC) Hsdezl Rxrspfx Ahzsfi Power supply: 100 - 240 V AC, 50/60 Hz Power consumption: approx. 400 W Net weight: approx. 110 kg - 120 kg Dimensions (W x D x H): 677 mm x 646 mm x 1,004 mm

Condition: used, functionality: unexamined, Ferwood Code: RU0011952 – Manufacturer Code: PJ-300H – Condition: Used – Functionality: Not tested – Compatible Machine: – If interested, we offer an overhaul service, please contact us. 140KG 120X80X115 Hjdpfsyrplrsx Ahzjfi
