Spot Welder

Miyachi Peco

Condition: excellent (used), Year of construction: 2019, We are selling a PCB spot welding system from AMADA, mounted on a workbench. The welding head is type FD 120-A/So, year of manufacture 2019. Hjdpfx Aboyhwduo Nofg

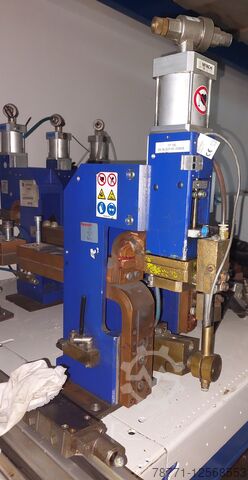

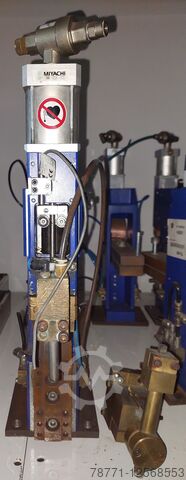

Condition: used, Micro welding head unit, spot welding system with welding head, inverter power source, I/O module, welding inverter MIYACHI PECO / AMADA WELD TECH GmbH Type ISQ20 Kompakt ISQ-AC/DC-AWS-EXT-250A 22KVA + PECO F160S Year of manufacture: 2011 The system consists of the following components: - Welding inverter MIYACHI PECO Type ISQ20 Kompakt ISQ-AC/DC-AWS-EXT-250A 22KVA with MFT1 control panel - External welding transformer MIYACHI PECO (mounted on the welding head frame) - External interface module MIYACHI PECO Type ISQ-MG - Spot welding head MIYACHI PECO Type F160S – 25 mm stroke with Heidenhain measurement system - Connection cables Mains voltage: 3x 400 V AC Mains frequency: 50 / 60 Hz Connected load: 22 KVA Welding current types: AC / DC Output current: max. 10 kA Output frequency: 1 - 10 kHz Welding time: max. 640 ms/pulse Current measurement: external toroidal coil Control panel: MFT1 (independent removable control unit) Analog input: pressure sensor for proportional valve Analog output: proportional valve control Interface: RS232 Protection class: IP30 - Error monitoring and process control - Monitoring of current, voltage, power, energy - Test pulse for part recognition - Program memory for 99 programs Inverter dimensions (W x H x D): 216 x 420 x 560 mm Inverter weight: approx. 21 kg Spot welding head MIYACHI PECO F160S Rated current: max. 5 kA Electrode stroke: 25 mm Closing stroke: pneumatic Hodpfx Ajpy Uzyjb Njfg - Adjustable force ignition from 1.2 to 550 N - Heidenhain distance measuring system Welding unit with 5 pneumatic cylinders and Festo valve terminal Type CPX Welding head mounted on horizontal guide rail and can be moved 20 mm via pneumatic cylinder. 3 pneumatic cylinders available for workpiece clamping (2 units with 46 mm stroke, 1 unit with 20 mm stroke). Throat depth (distance from welding tip to frame): 300 mm Welding tip height above floor: 315 mm Welding unit dimensions (W x H x D): 410 x 760 x 700 mm Welding unit weight: 75 kg Total weight: 100 kg 2 nearly identical units available, price per complete unit.
