Turning automatic lathe

Miyano BNA 42 DHY

Condition: excellent (used), Year of construction: 2022, operating hours: 2,963 h, functionality: fully functional, TECHNICAL DATA - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 42 mm - Travel: 100 mm - Spindle speed: 6,000 rpm - Spindle drive power: 7.5/5.5 kW - Minimum C-axis resolution: 0.001° SUB SPINDLE Kdsdpfsw Igyrex Ad Ijw - Max. bar diameter: 34 mm - Spindle speed: 5,000 rpm - Spindle drive power: 5.5/3.7 kW - Minimum C-axis resolution: 0.001° - Number of turret heads: 2 UPPER TURRET HEAD - Number of positions: 8 - Travel X: 140 mm - Travel Z: 235 mm - Travel Y: 70 mm (+/-35 mm) - Driven tool speed: 5,000 rpm - Driven tool power: 1.0 kW LOWER TURRET HEAD - Number of positions: 6 - Travel X/Z: 140 / 310 mm ELECTRICAL SUPPLY - Total connected load: 30 kVA WEIGHT AND DIMENSIONS - Required floor space: 2,220 x 1,460 mm - Machine height: 1,700 mm - Machine weight: 3,100 kg

Condition: used, Year of construction: 2023, In the market for a Top of the Range Miyano? Then have a look at this one! 18 months old and just over 1000 hours on the clock…it is as new! Still on site where it can be seen under power. The following is from Miyano’s Spec sheet: The Miyano ABX-64SYY – is a Top of the range, twin spindle, twin turrets with Y-axis on each turret. The ability to machine simultaneously at the left and right spindles using the upper and lower turrets, both featuring a Y-axis function, means that complete front and back machining of products with complex shapes can be accomplished simply and in a short time. High rigidity and high torque with 40 Nm driven tools. The use of rigid 40 Nm driven tool drives capable of heavy cutting ensures stable milling. Two turrets with a total of 24 tool positions, all driven, handle complex machining just like a machining centre. This machine also features the optional parts conveyor, Hainbuch collet chucks on both spindles, high pressure coolant, probing and a steady rest that’s mounted on the lower turret. Machining Capacity and Chuck System Maximum Machining Diameter of Bar Work SP1/SP2 ø64/51mm Collet Chuck SP1/SP2 Stationary Power Chuck SP1/SP2 6″/6″ hydraulic drive Standard Turning Length 125mm Spindle Spindle Nose SP1/SP2 A2-8/A2-6 Spindle motor(30min./Cont.) SP1 15/11kW SP2 7.5/5.5kW Spindle Speed Range SP1 50 – 5,000min-1 40 – 4,000min-1 SP2 50 – 5,000min-1 Turrets(Upper L/R Turrets & Lower Turret) Type of Turret 2 x 12 Station Turret Shank Height of Square Turning Tool □20mm Diameter of Drill Shank ø40mm ø20mm ø25mm Slide Stroke X1, X2 axis 190mm Z1/Z2 axis 550mm/721mm Y1, Y2 axis ±40mm Zs axis 756mm Rapid Traverse Rate X1, X2 axis 16m/min Z1/Z2 axis 30/20m/min Y1, Y2 axis 12m/min Zs axis 30m/min Driven Tools Maximum Number of Revolving Tools 24 Rotation speed of Driven Tools 60 – 6,000min-1 Driven Tool Motor AC Servo 4.5kW Machine Dimensions Machine Height 2,222mm Floor Space 3,290×2,204mm Machine Weight 10,900kg Name of the machine: Miyano ABX-64SYY Kjdpfew I D Duex Ad Iedw

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 Kedouhad Uspfx Ad Iodw MAIN SPINDLE - Max. bar diameter : 42 [mm] - Travel : 100 [mm] - Spindle speeds : 6000 [rpm] - Spindle power : 7.5/5.5 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 34 [mm] - Spindle speeds : 5000 [rpm] - Spindle power : 5.5/3.7 [kW] - C axis indexing precision : 0.001 [°] - Number of turrets : 2 UPPER TURRET - Number of positions : 8 - X stroke : 140 [mm] - Z stroke : 235 [mm] - Y stroke : 70 (+/-35) [mm] - Live tools speed : 5000 [rpm] - Live tools power : 1.0 [kW] LOWER TURRET - Number of positions : 6 - X/Z stroke : 140 / 310 [mm] POWER SUPPLY - Total installed power : 30 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.220 x 1.460 [mm] - Machine height : 1.700 [mm] - Machine weight : 3100 [kg] MACHINE HOURS - Number of working hours : 14072 [h] EQUIPMENT - CNC : Fanuc Oi-TD - Parts conveying strip - Ejection of workpiece - Chips conveyor - Predisposition for barfeeder - Electric transformer - Collets collection for guide bush

Year of construction: 2013, condition: ready for operation (used), Control Unit Brand FANUC Model FANUC 0i-TD Main Drive Spindle speed range 6000 Spindle motor power 7.5/5.5 kW Kdjdpfx Adoxula Aj Iow Number of axis 6 Media Chip conveyor Yes Additional Equipment Accessories: Chip conveyor, part catcher, bar feeder (Iemca Boss 545-E), motorized tools This 6-axis Miyano BNA-42DHY was manufactured in 2013. It features a FANUC 0i-TD control unit, dual spindles with speeds up to 6000 and 5000 rpm, and two tool turrets with motorized stations. Accessories include a chip conveyor, part catcher, and a bar feeder. If you are looking to get high-quality turning capabilities consider the Miyano BNA-42DHY machine we have for sale. Contact us for more information about this machine. Application Types Turning

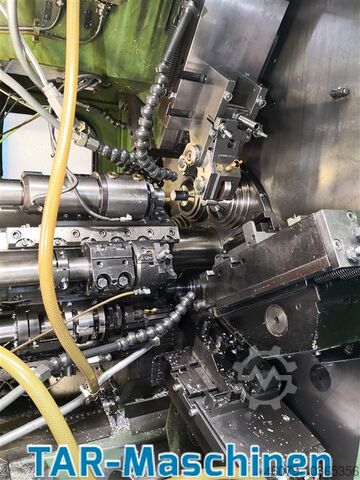

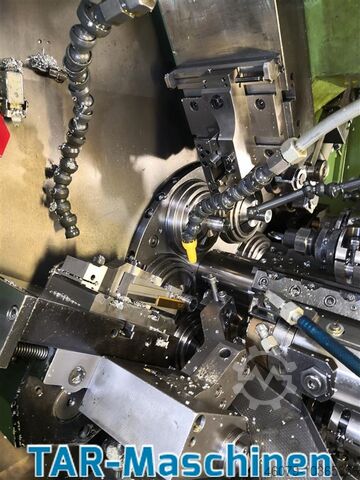

Condition: used, Year of construction: 1991, Technical details: number of spindles: 6 spindle passage: 51 mm Schutte SF51 DNT, yob. 1987, our ID #61868 Article: cam-controlled multi-spindle automatic lathe Kdedjl Rmqpjpfx Ad Ijw Manufacturer: Schütte Type: SF51 DNT Yob: 1987 Six-spindle automatic lathe with 6 main spindles max. nominal diameter D=51mm electronic cam control Balluff gripper in position 6 for backworking, sorting chute independent longitudinal feed layer 5 screw chip conveyor Tapping couplings Interface for: Bar feeder IEMCA PRA Bar feeder IEMCA PRA40/33/F Scope of delivery without the blue chip conveyor The tooling will differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at) or *

Condition: ready for operation (used), Year of construction: 2022, operating hours: 674 h, functionality: fully functional, spindle speed (max.): 6,000 rpm, travel distance X-axis: 140 mm, travel distance Y-axis: 70 mm, travel distance Z-axis: 235 mm, bar diameter (max.): 42 mm, TECHNICAL DETAILS MAIN SPINDLE Max. bar diameter: 42 mm Travel: 100 mm Spindle speed: 6,000 rpm Spindle drive power: 7.5/5.5 kW Minimum C-axis resolution: 0.001 degrees SUB SPINDLE Kjdpfxjxlfu Ue Ad Iedw Max. bar diameter: 34 mm Spindle speed: 5,000 rpm Spindle drive power: 5.5/3.7 kW Minimum C-axis resolution: 0.001 degrees Number of turrets: 2 UPPER TURRET Number of positions: 8 Travel X: 140 mm Travel Z: 235 mm Travel Y: 70 (+/-35) mm Driven tools speed: 5,000 rpm Driven tools power: 1.0 kW LOWER TURRET Number of positions: 6 Travel X/Z: 140 / 310 mm Number of spindles: 2 MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 2,220 x 1,460 x 1,700 mm Machine weight: 3,100 kg ELECTRICAL SUPPLY Total connected load: 30 kVA Operating Hours Machining hours: 674 h Control on hours: 4,953 h

Condition: ready for operation (used), Year of construction: 2011, General Data Measurements width 1460 Measurements depth 2220 Measurements height 1700 Machine weight 3100 Kedexa H R Hjpfx Ad Isdw Main Drive Spindle speed range 6000 Spindle motor power 7.5/5.5 kW Number of axis 7 Movement X-Axis Movement 140 mm Y-Axis Movement 70 (+/-35) mm Z-Axis Movement 235 mm Tools Number of station 8 Media Chip conveyor Yes Additional Equipment Bar Loader: IEMCA BOSS 545 E This 7-axis Miyano BNA-42DHY turn-mill centre was manufactured in 2011. It features a main spindle with a maximum bar diameter of 42 mm and speeds up to 6000 rpm, complemented by a counter-spindle that handles up to 34 mm and 5000 rpm. Equipped with two turrets, upper with 8 positions and lower with 6, it offers versatile machining options. Includes a chips conveyor and an IEMCA BOSS 545 E bar loader. Contact us for more information about this machine. Application Types Turning
