Machining center

Mori Seiki NHX-5000

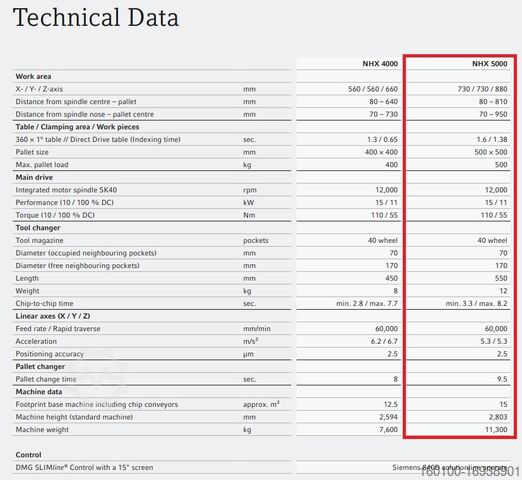

Condition: ready for operation (used), Year of construction: 2012, General Data Measurements height 2803 mm Machine weight 11300 kg Control Unit Brand SIEMENS Model 840D Main Drive Spindle speed range 12000 rpm Spindle motor power 15 / 11 kW Movement X-Axis Movement 730 Iiedpfoxpkl Hjx Afpsh Y-Axis Movement 730 Z-Axis Movement 880 Additional Equipment Tool Magazine Capacity: 40 pockets (wheel type) / Tool Diameter (Occupied Neighboring Pockets): 70 mm / Tool Diameter (Free Neighboring Pockets): 170 mm Maximum Tool Length: 450 mm / Maximum Tool Weight: 12 kg / Chip-to-Chip Time: min. 3.3 sec / max. 8.2 sec Pallet Change Time: 9.5 sec Footprint (Including Chip Conveyors): approx. 12.5 m² This 4-axis MORI SEIKI NHX 5000 was manufactured in 2012. Ideal for precision machining, this horizontal machining centre ensures reliable performance. Consider the opportunity to buy this MORI SEIKI NHX 5000 horizontal machining centre. Contact us for more information. Application Types Milling

Condition: used, Year of construction: 2012, functionality: fully functional, machine/vehicle number: AX4E -NAOS 12-160, x-path 730 mm y-path 730 mm z-path 880 mm Control unit M 730 BM MAPPS IV Main spindle: max. spindle speed 12,000 min/-1 Drive power - milling spindle 15 / 11 kW Max. Torque 102 Nm Tool holder SK 40 Distance from spindle center to table 80 - 800 mm Iiodpfx Afsrk Ny Nepeh Distance between spindle nose and table center 70 - 950 mm Pallet changer: Number of pallets 2 Pallet size 500 x 500 mm max. workpiece weight 500 kg Max. workpiece diameter 800 mm max. workpiece height 1,100 mm Pallet change time 9.5 sec indexing time 1.49 sec B-axis (table) 1 ° Tool changer: Number of tool positions 60 pos. Tool holder SK 40 max. tool diameter 70 mm max. tool diameter with free neighboring box 170 mm Max. tool length 550 mm Tool - tool change time 0.9 sec Feed rates: Rapid traverse 60 m/min Feed speed max. 60,000 mm/min Jog feed speed 0 - 5,000 mm/min Total power requirement 34 kVA Machine weight approx. 11.1 t Space requirement approx. 5.5 x 3.0 x 2.8 m documentation Chip conveyor Coolant device Internal coolant supply IF Knoll tool changer B-axis pallet changer Oil mist separator Tool breakage control Magazine Thread milling CNC - Horizontal machining center DMG MORI - NHX 5000

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 880 mm, workpiece weight (max.): 500 kg, spindle speed (max.): 12,000 rpm, number of slots in tool magazine: 60, TECHNICAL DETAILS X-travel: 730 mm Y-travel: 730 mm Z-travel: 880 mm Control: M 730 BM MAPPS IV Main spindle max. spindle speed: 12,000 rpm Drive power - milling spindle: 15 / 11 kW max. torque: 102 Nm Tool holder: SK 40 Distance from spindle center to table: 80 - 800 mm Distance from spindle nose to table center: 70 - 950 mm Pallet changer Number of pallets: 2 Pallet size: 500 x 500 mm max. workpiece weight: 500 kg max. workpiece diameter: 800 mm max. workpiece height: 1,100 mm Pallet changing time: 9.5 s Indexing time: 1.49 s B-axis (table): 1° Tool changer Number of tool positions: 60 slots Tool holder: SK 40 Max. tool diameter: 70 mm Max. tool diameter with free adjacent box: 170 mm Max. tool length: 550 mm Tool - tool change time: 0.9 s Feeds Rapid traverse: 60 m/min Max. feed rate: 60,000 mm/min Jog feed rate: 0 - 5,000 mm/min MACHINE DETAILS Total power requirement: 34 kVA Machine weight: approx. 11.1 t Space requirement: approx. 5.5 m x 3.0 m x 2.8 m Iijdpfxsvpryij Afpjh EQUIPMENT - Documentation - Chip conveyor - Coolant system - Internal coolant supply (IF Knoll) - Tool changer - B-axis - Pallet changer - Oil mist separator - Tool breakage control (magazines) - Thread milling
