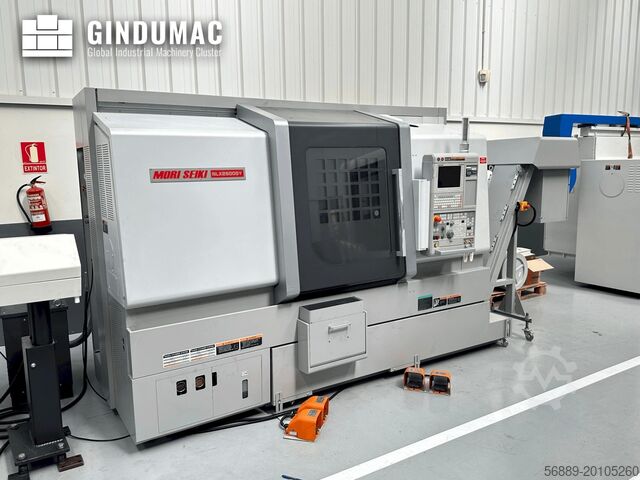

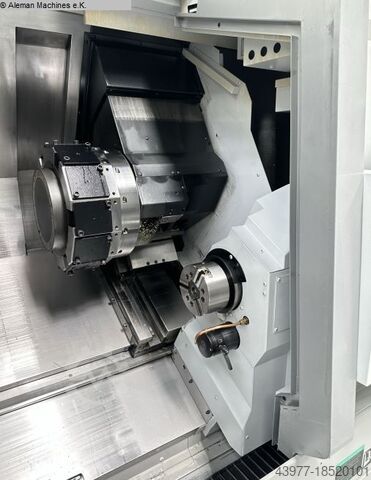

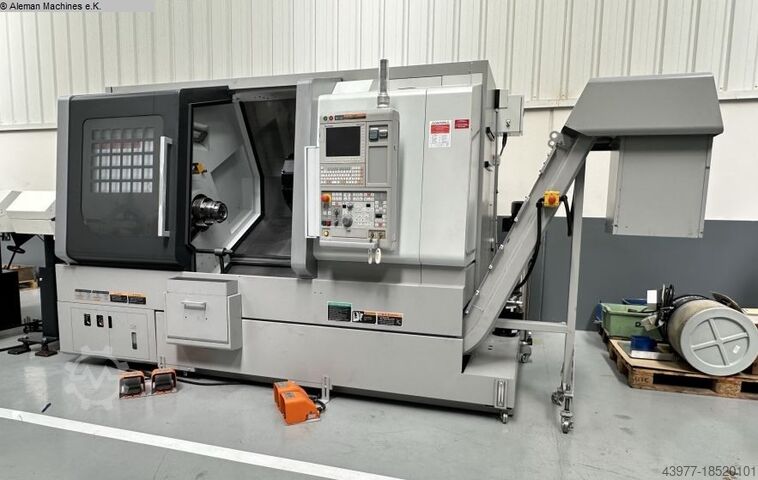

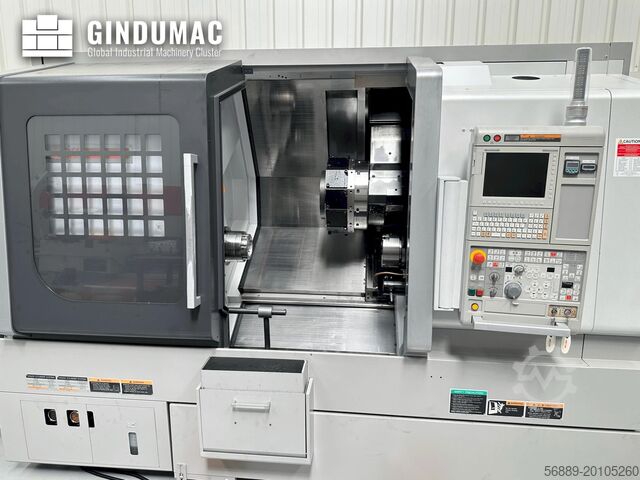

CNC LatheMori Seiki
NLX 2500 SY 700
Machine data
- Machine type:
- CNC Lathe
- Manufacturer:
- Mori Seiki
- Model:
- NLX 2500 SY 700
- Year of construction:
- 2011
- Condition:
- excellent (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Ctra. Castellón KM 5.2, 50720 Zaragoza, España
Details about the offer
- Listing ID:
- A177-77011
- Update:
- 21.11.2024
Description
Model NLX2500SY/700
Month / Year 12/2011
CNC MORI SEIKI M730 BM
Capacities
Swing over bed 590 mm.
Swing over cross slide 360 mm.
Max cutting diameter 460 mm.
Max cutting length 795 mm.
Bar work capacity 80 mm.
Y axis INCLUDED
Travels and feeds
X axis travel 260 mm.
Y Axis travel ±50 mm.
Z axis travel 795 mm.
Spindle 2 B axis travel 734 mm.
Rapid traverse rate X, Z, B axis 30.0000 mm/min
Rapid traverse rate Y axis 10.0000 mm/min
Jog feedrate X, Z, B, Y axis 0-5.000 mm/min
Spindle
C axis in spindle INCLUDED
C axis index in spindle 0.001º
Spindle speed 4.000 rpm
Fodpfxeu Tunxj Aa Nopp
Spindle speed ranges 2
Spindle nose JIS A2-8
Through-spindle hole diameter 91 mm.
Spindle drive motor 18.5 kW
Spindle 2
C axis in spindle 2 INCLUDED
C axis index in spindle 2 0.001º
Spindle 2 speed 6.000 rpm
Spindle 2 speed ranges 1
Spindle 2 nose JIS A2-5
Through-spindle 2-hole diameter 43 mm.
Spindle 2 drive motor 11/7,5 kW
Rotary tool
Rotary tool INCLUDED
Rotary tool positions in turret 12
Rotary tool spindle rate 6000 rpm
Milling motor power 5.5 kW
Tool size 25×25 mm.
Equipment
Head chuck Ø250 mm. INCLUDED
Sub spindle chuck Ø170 mm. INCLUDED
Head collect chuck HAINBUCH
Spindle – automatic tool setter INCLUDED
Sub -spindle tool setter INCLUDED
High pressure coolant INCLUDED
Chip conveyor INCLUDED
Fume extractor INCLUDED
Automatic barfeed Hydrafeed Multiservo mod MSV INCLUDED
Part catcher INCLUDED
1 radial driven tool holder INCLUDED
1 axial driven tool holder INCLUDED
Others
Total power 40 kVA
Machine Dimension – incl chip conveyor 3.994 x 3.056 x 2.187 mm
Machine weight 6.360 kg.
