CNC Turning- and Milling Center

MORI SEIKI NZ 1500 T2Y

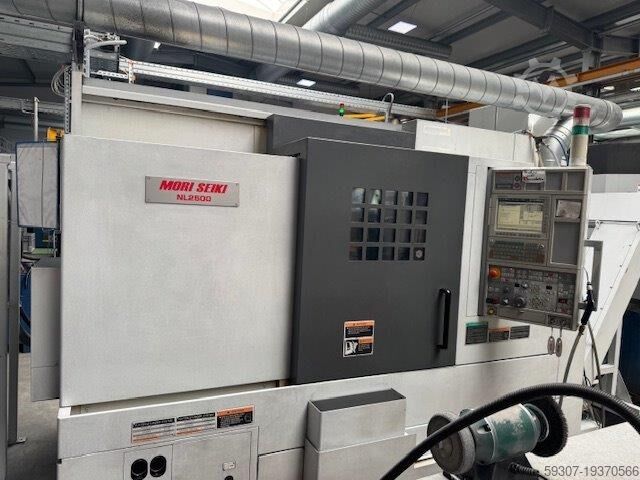

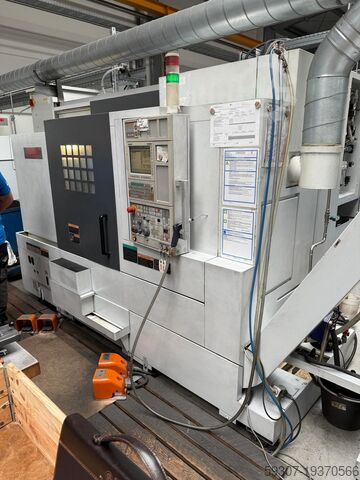

Condition: excellent (used), Year of construction: 2011, operating hours: 17,813 h, functionality: fully functional, turning length: 700 mm, turning diameter over cross slide: 750 mm, turning diameter: 366 mm, spindle motor power: 26 W, spindle speed (max.): 4,000 rpm, spindle bore: 80 mm, mount diameter: 12 mm, rotational speed (max.): 6,000 rpm, Make Mori-Seiki Moderl NL 2500SY/700 Year of manufacture 2011 Control system MXS 850 IV Data: Max Swing over bed 755 mm Max swing over support 740 mm Max Turning diam. 366 mm Turning length 785 mm Movements X 260 mm Y 100 +-50 mm Z 795 mm Rapid transport X/Y/Z 30/20/50 m/min Spindle power 26/22 kW Spindle speed 4,000 rpm Bar Capacity 80 mm Chuck diameter 250 mm Spindle nose JIS A2-8 Spindle indexing 0.001° Sub Spindle power 11/7,5 kW Sub Spindle speed 6,000 rpm Sub Bar cap. 80 mm Sub spindle Chuck diameter 150 mm Sub Spindle nose JIS A2-5 Sub Spindle indexing 0.001° Number of tools in turret/driven 12/12 pcs. Power driven tools 5.5 kW Spindle speed driven tools 6,000 rpm Machine weight 6,200 kg Machine dimensions LxWxH 4.34 x 2.00 x 2.120 m Equipment: Chip conveyor, 3-jaw chuck Kitagawa BB-210 in main Spindle and a Kitagawa B 206 in Sub Spindle, Part catcher, Various tool holders, Parts catcher, Interface for Bar-Feed, Synchronised threading, The machine has 17800 work hours. Fsdpfxjwtfwhs Aa Nsgi

Condition: good (used), Year of construction: 2003, Main spindle: Speed range - main spindle max. 6,000 min/-1 Drive power - main spindle 16 kW Max. torque 155 Nm C-axis 360 ° Tool turret: Number of tool positions 12 pos. Number of driven tool stations 12 pos. Speed range - driven tools max. 5,000 min -1 Drive power - driven Tools 10 kW Tool holder (VDI 30) Tool shaft 20 x 20 mm Travel paths: x-axis 160 mm z-axis 450 mm Feed rates: Rapid traverse X: 60 m/min Fgedpfev Drigex Aa Nei Rapid traverse Z: 45 m/min Feed force X: 2.5 kN Feed force Z: 4 kN Rapid traverse C: 200 1/min Max. torque C: 155 Nm Total power requirement Machine weight approx. 3.7 t Space requirement approx. 4.5 x 2.5 x 2.5 m Heidenhain control Hollow clamping cylinder C-axis and tool drive a Chip conveyor Oil and emulsion mist separator with electrostatic filter

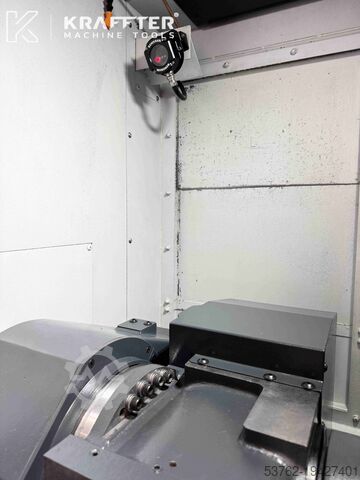

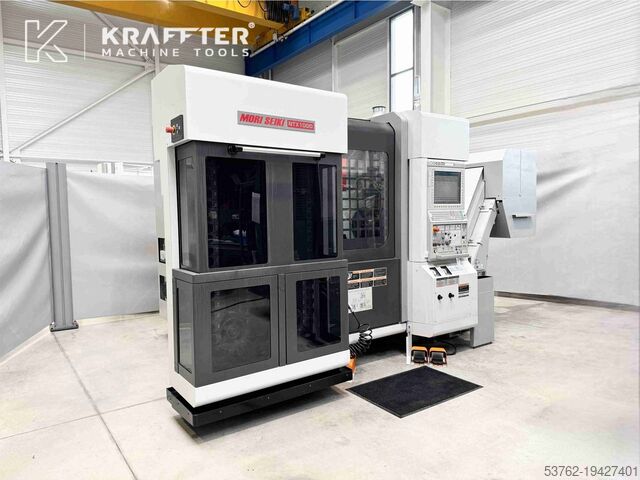

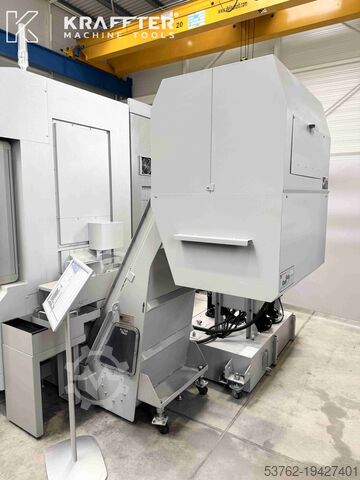

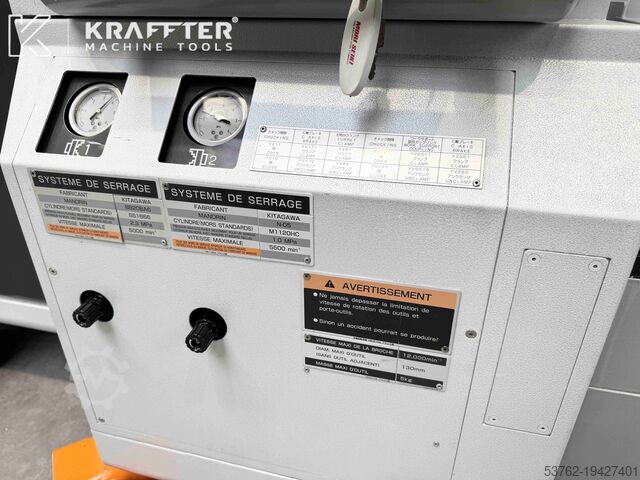

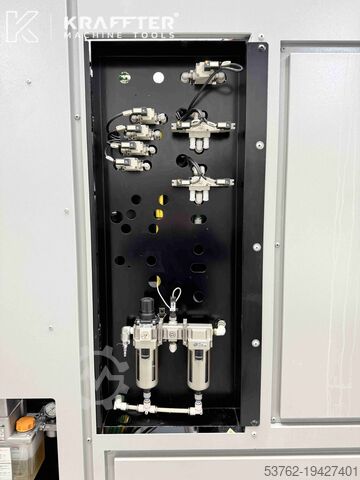

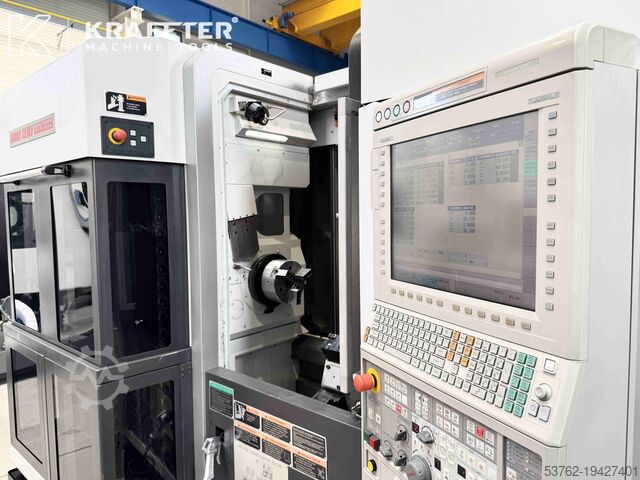

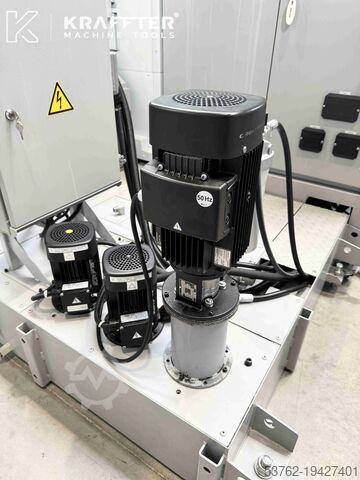

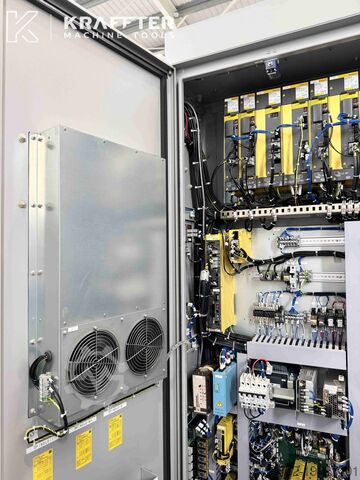

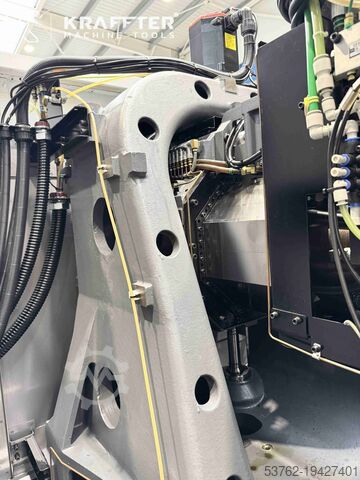

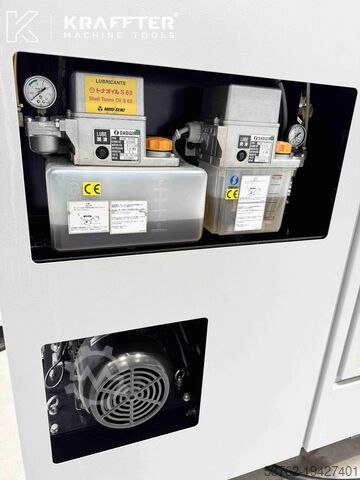

Condition: reconditioned (used), Year of construction: 2011, functionality: fully functional, turning diameter: 370 mm, spindle speed (max.): 6,000 rpm, spindle bore: 73 mm, type of input current: three-phase, overall weight: 8,950 kg, Equipment: documentation/manual, Turn Mill Center MORI SEIKI NTX1000 SZ TECHNICAL CHARACTERISTICS : Year of manufacturing : 2011 CNC control: FANUC MSX-711 IV Number of simultaneous axes: 5 Max. cutting diameter: 370 [mm] Max. turning length: 424 [mm] Stroke Y axis : 105 Stroke Z1 axis : 460 [mm] Stroke X1 axis : 380 [mm] Stroke Z2 axis : 610 [mm] Stroke X2 axis : 155 [mm] B axis swivelling stroke : 120 [°] B axis indexing precision : 0.0001 [°] Milling head max. speed : 12000 [rpm] Milling head spindle attachment : Capto C5 Max. milling spindle power : 9 [kW] Tool magazine capacity : 76 Max. tool lenght : 250 [mm] Max. tool diameter : 130 [mm] Max. weight of single tool : 5 [Kg] Rapid traverse rate X1 axis : 40000 [mm/min] Rapid traverse rate X2 axis : 20000 [mm/min] Rapid traverse rate Z axis : 50000 [mm/min] Rapid traverse rate Z2 axis : 36000 [mm/min] Rapid traverse rate Y axis : 40000 [mm/min] Spindle nose : JIS A2-6 Spindle throughbore : 73 [mm] Max. spindle speed : 6000 [rpm] Increment C-axis : 0.0001 [°] Spindle power : 11 [kW] Counter spindle nose : G6 flat nose Counter spindle throughbore : 38 [mm] Max. counter spindle speed : 6000 [rpm] Counter spindle increment C-axis : 0.0001 [°] Counter spindle power : 7.5 [kW] Counter spindle torque : 37 [Nm] Max. tool holder cross-section : 20 [mm] Number of tool stations : 10 Total power required : 48 [kVA] Number of cutting hours : 9867 [h] Weight : 8950 [Kg] EQUIPMENT INCLUDED: x1 MAPPS IV operating system x1 KITAGAWA BB208 - Ø208 [mm] chuck x1 blowing spindle chuck x1 KITAGAWA N05 chuck - Ø135 [mm] x1 blowing of counter-spindle chuck x1 through tool spindle coolant x1 chip conveyor (right exit) x1 coolant gun x4 foot pedals (clamping/unclamping chucks 1 and 2) x6 static tool holders x1 3-colours status lamp x1 electrical transformer x1 high pressure collant pump x1 set of axle clamps for transporting the machine x1 set of technical manuals FANUC OPTIONS INCLUDED : x1 A02B-0306-J713 - 31i-A5 3-D Coordinate System Conversion x1 A02B-0306-J815 - 31i-A5 Polar Coordinate Interpolation x1 A02B-0306-J819 - 31i-A5 Helical Interpolation x1 A02B-0306-J828 - 31i-A5 Rigid Tapping x1 A02B-0306-J852 - 31i-A5 CS Contour Control x1 A02B-0306-J926 - 31i-A5 Tool Offset, 99 Pairs x1 A02B-0306-J930 - 31i-A5 Tool Radius (Cutter) Compensation and Tool Nose Radius Compensation x1 A02B-0306-J947 - 31i-A5 Part Program Memory, 1 MB x1 A02B-0306-R512 - 31i-A5 Nano Smoothing II x1 A02B-0306-S676 - 31i-A5 Tilted Working Plane Command - Conventional x1 A02B-0306-S687 - 31i-A5 Nano Smoothing x1 A02B-0306-S737 - 31i-A5 Data Server Function x1 A02B-0306-S808 - 31i-A5 AI Contour Control II Fodpjwu Rcljfx Aa Negi Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine similar to brands mazak , dmg mori , index traub , doosan , hermle , chiron , biglia see also cnc lathe , lathe-milling , milling machine

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, turning length: 810 mm, turning diameter over cross slide: 800 mm, turning diameter: 320 mm, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, spindle bore: 73 mm, travel distance X-axis: 210 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 810 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 50 m/min, rotational speed (max.): 6,000 rpm, CNC FANUC MSX-701 / MAPPS IV CAPACITY Swing diameter over bed: mm 800 Swing diameter over cross slide: mm 800 Maximum turning diameter: mm 320 Standard turning diameter: mm 200 Maximum distance between the center: mm 1.130 Maximum turning length: mm 810 Maximum workpiece size: mm 300 TRAVELS X axis turret 1 and 2: mm 210 Y axis turret 1 and 2: mm +65 / -45 Z axis turret 1 and 2: mm 810 B axis headstock 2: mm 920 MAIN SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 SUB SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 FEED DRIVES Fgsdpfx Aewlvlgoa Nsi Rapid traverse turret 1 X/Y/Z: m/min 30/20/50 Rapid traverse turret 2 X/Y/Z: m/min 30/20/50 TOOL TURRET Number of turrets: 2 Number of tool stations per turret: 16 Shaft cross – section for turning tools: mm 20 x 20 Maximum shaft diameter for boring bars: mm 32 Turret switching time (1 station): s 0,18 Maximum speed of the driven tools: rpm 6.000 Drive power for driven tools (5 min/continuous operation): kW 7,5/5,5 DIMENSIONS Installation area with chip conveyor: mm 5.120 x 2.720 Net weight: kg 8.300 Macchina equipped with: • High pressure cooling system • Bar loader interface • Gantry-type piece unloading arm • Cutting effort management system and load monitor • No. 1 double radial motorized tool holder • No. 3 axial motorized tool holders • No. 2 external tool holders • No. 2 double boring bar holders • No. 2 single radial motorized tool holders • No. 2 internal boring bar holders • No. 2 Kitagawa BD 208 self-centering chucks diam. Mm 210 • No. 1 set of jaws for each self-centering chuck • Instruction manuals and CE declaration Year of manufacturing: 2010

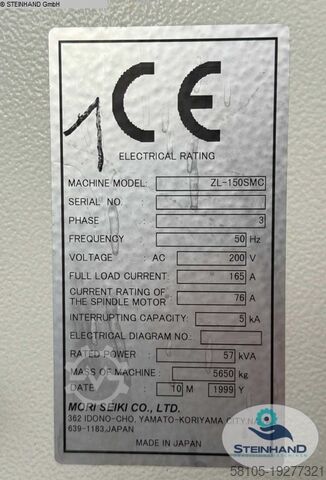

Condition: used, Year of construction: 1999, swing dia. 680 mm max. turning diameter 429 mm turning length 440 mm control MORI SEIKI - MSC-501 turning speeds 5.000 U/min max. bar material dia. 56 mm travel -x axis 233 mm travel -z axis 510 mm number of tapers in turret head 2x12 CNC Turning- and Milling Center | MORI SEIKI - ZL-150SMC equipped with main/counter spindle, c- axis, 2x turret for driven tools, bar feeder and chip conveyor. Fsdpfxowplulj Aa Njgi The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: ZL 150SMC | ZL150SMC | ZL-150 SMC | ZL 150 SMC

Condition: good (used), Year of construction: 2002, operating hours: 18,000 h, CNC MULTITASKING LATHE MORI SEI MOD. MT 2000 SZ Main Spindle Kw 22 6,000 RPM X/y/z/b Travels: 565 - +/- 80 - 1077 - +/- 120° Milling Head Capto C6 6,000 RPM Motorized Lower Turret 12 Stations Tool Magazine 40 Posts Year 2002 Fgedpsu Sg Auefx Aa Nei

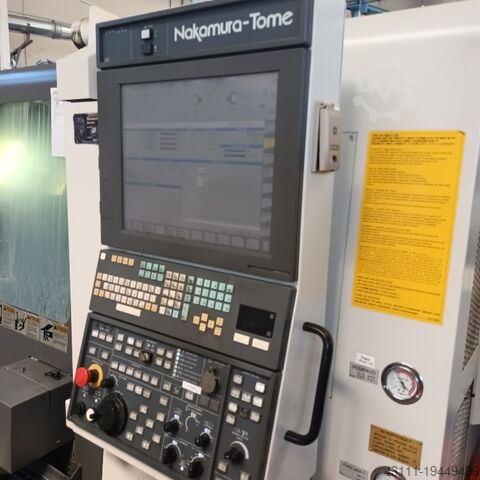

Condition: used, Year of construction: 2011, functionality: limited functionality, bar passage: 51 mm, overall weight: 6,000 kg, bar capacity 51 mm – three turrets – three Y axes – fixed/driven tool holders – LNS Sprint 552 bar feeder new in 2011 – Fanuc Control Fodpfx Aajwvvyro Negi

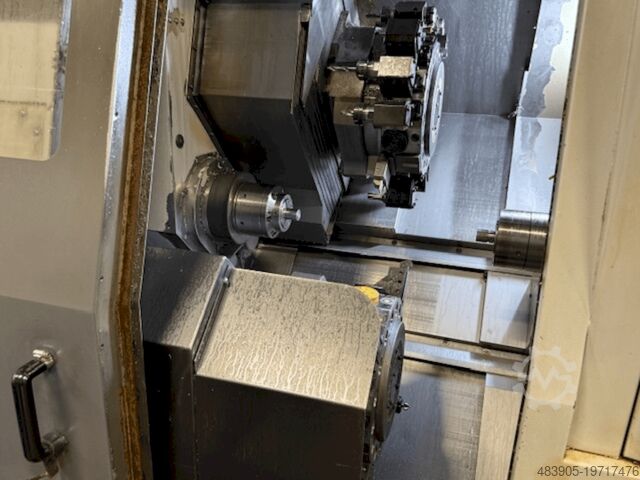

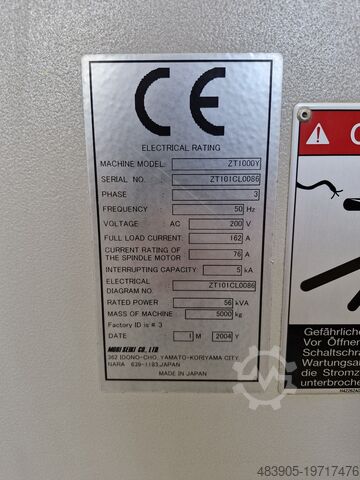

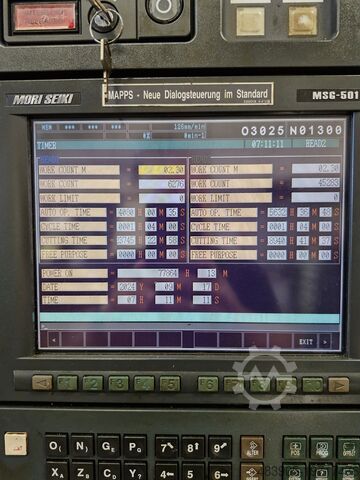

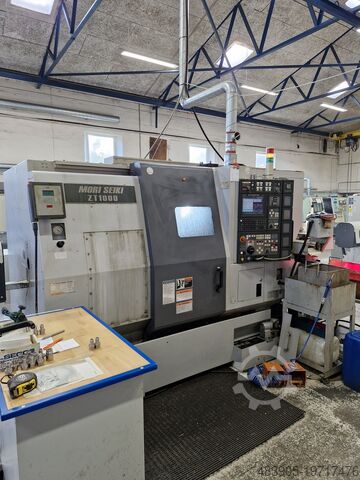

Condition: good (used), Year of construction: 2004, operating hours: 19,400 h, functionality: fully functional, turning length: 750 mm, turning diameter over cross slide: 250 mm, turning diameter: 190 mm, spindle bore: 49 mm, travel distance X-axis: 270 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 880 mm, rapid traverse X-axis: 18 m/min, rapid traverse Y-axis: 6 m/min, rapid traverse Z-axis: 24 m/min, milling spindle length: 60 mm, rotational speed (max.): 6,000 rpm, Equipment: bar feeder, chip conveyor, Multi Axis Mori Seiki ZT-1000Y Year 2004 8-axis turning milling machine With LNS bar feeder Many tool-holders and live-tools included Max. workpiece turning diameter: 250 mm Fedpfx Aasw H Dnfs Nsgi Max. distance between spindles: 750 mm Max. turning diameter: 190 mm Max. turning length: 190 mm Standard bar diameter: 170 mm Max. bar capacity: 120 mm X-axis travel: ±135 mm Z-axis travel: ±440 mm Y-axis travel: ±40 mm B-axis (spindle 2) travel: 510 mm Spindle speed range: 60–6000 rpm Spindle bore: 49 mm Spindle nose diameter: 80 mm Min. spindle indexing angle: 0.001° Turret type: 12 stations Tool shank diameter: 20 mm Max. live tool speed: 6000 rpm Live tool machining capacity: Ø13 mm drill / M12 tap Live tool motor power: 3.7 / 2.2 kW Rapid traverse speed: X1/X2: 18000 mm/min, Z1/Z2: 24000 mm/min, Y: 6000 mm/min Main spindle motor power: 7.5 / 5.5 kW Machine dimensions (L×W×H): 2797 × 2010 × 1995 mm Machine weight: 5000 kg Power requirement: 46 kVA

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, spindle bore: 81 mm, TAKISAWA TM 4000 Y2 ! Very few operating hours ! Control: FANUC 31iB Standard turning diameter on both spindles: 215 mm Spindle bore: 81 mm 2 x Y-axis -50mm +70mm / -50mm +30mm Z-axis travel: 800 mm Max. main spindle speed: 4,200 rpm Max. sub spindle speed: 5,000 rpm Revolver: 2 x 12-position, driven tools up to 6,000 rpm 1 x power chuck 250 mm / 200 mm 1 x collet chuck Fodpsw Hxidofx Aa Negi Signal lamp Tool presetting device Helical interpolation Raku-Raku tool monitoring Parts ejector Direct path measurement Y1 axis X1 Air blast sub spindle Bar feeder magazine BK 105L High-pressure coolant system KNOLL 30 bar
