CNC Turning- and Milling Center

MORI SEIKI SL 204 MC

Condition: used, TECHNICAL DETAILS Godpfx Aqjyxr U Rjgjuh - Number of axes : 4 MAIN SPINDLE - Spindle nose : A2-8 - Spindle power : 18,5 [kW] - Spindle speeds : 4000 [rpm] - Max. bar diameter : 80 [mm] - Max. turning diameter : 366 [mm] - C axis indexing precision : 0.001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 280 x 785 [mm] - Y stroke : +/- 50 [mm] - Live tools speed : 6000 [rpm] * Live tools power : 5,5 [kW] TAILSTOCK - Tailstock type : Numérique - Type of cone : CM5 - Distance between centers : 705 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 39 [kVA] MACHINE HOURS - Number of working hours : 7261 [h] WEIGHT & DIMENSIONS - Machine floor space : 3800 x 2143 [mm] - Machine height : 2232 [mm] - Machine weight : 6100 [kg] EQUIPMENT - CNC : MORI MSX-850 III (Mitsubishi 720BM) - Tool probe - 3 colors status lamp - Coolant tank - Chips conveyor - Chuck 3 jaws : hydraulique - Number of turning tool holders : 3

Condition: excellent (used), Year of construction: 2014, operating hours: 60 h, functionality: fully functional, machine/vehicle number: NL202140731, spindle motor power: 15,000 W, spindle speed (max.): 5,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 590 mm, type of input current: three-phase, total height: 2,145 mm, total length: 3,820 mm, total width: 2,081 mm, spindle nose: A2-6, overall weight: 5,100 kg, CNC Lathes with Milling NLX2000Y-500, Mori Seiki Year: 2014 Bar Capacity 65mm C axis 0.001 degree Control MORI M730B Machine Dimensions 3820 x 2081 x 2145mm Machine Weight 5100kg Maximum Cutting Diameter 366mm Maximum Cutting Length 510mm Milling Motor Power 5.5/3.7kW Milling RPM 10000rpm Gsdpfxozua Ege Aqgsuh Rapid Feedrates 30m/minute Spindle Motor Power 15/11kW Spindle Nose A2-6 Spindle Speed 5000rpm Spindle Taper MT #4 Standard Cutting Diameter 271mm Swing 923.8mm Swing 755mm Tailstock Body Travel 564mm Tailstock Quill Diameter 80mm Tool Size 25 x 25mm Turret Positions 12 Station X axis Travel 260mm Y axis Travel +/-50mm Z axis Travel 590mm

Condition: used, Year of construction: 2011, Technical details: standard turning dia.: 200 turning length: max. 810 mm control: MSX-701 MAPPS IV greates pass round over bed: 800 mm Max. distance between centres: 1130 mm max. turning diameter: 320 mm max. workpiecediameter: 300 mm bar material dia.: 65 mm Traverse X-Axis 1: 210 Traverse X-Axis 2: 210 mm Traverse X-Axis 3: 210 mm Traverse Y-Axis 1: 110 (+65/-45) mm Traverse Y-Axis 2: 110 (+45,/-65) mm Traverse Z-Axis 1: 300 mm Traverse Z-Axis 3: 300 mm Traverse Z-Axis 2: 810 mm Traverse B-Axis: 870 mm turning speed range - spindle: 5.000 1/min Number of spindle speed ranges: 2 . spindle nose: JIS A2-6 spindle bore: 73 mm spindle bearing diameter: 120 mm C-Axis: 0,001 ° turning speed range - spindle: 5.000 1/min spindle nose: JIS A2-6 spindle bore: 73 mm bar material dia. max: 65/52 mm spindle bearing diameter: 120 mm C-Axis: 0,001 ° Number of Turrets: 3 . Number of tool stations: 16 x 3=48 pos Schank height for square tool: 20 mm Diameter of boring bar: 32 mm turret changing time (4-stations): 0,18 sec Number of driven tools: 16 x 3=48 pos max. spindle speed driven tools: 6.000 U/min. Rotary tool machining ability: M16 / Ø16 . rapid traverse X-axis: 30 m/min rapid traverse Y-axis: 20 m/min rapid traverse Z-axis: 50 m/min drive capacity - spindle motor: 25 / 22 kW power capacity - driven tools: 7,5 / 5,5 kW total power requirement: 92,7 kVA weight of the machine ca.: 9,4 t dimensions of the machine ca.: 4,0 x 2,8 x 2,4 m Accerories Chip conveyor Coolantsystem C-axis in main and sub spindle part counter total counter tool setting Overhead partsgripper with conveyor belt. Spindle 1 Chuck SMW KNCS-N 210 / 52 mm Spindle 2 Collet Chuck Hainbuch Spanntop nova Kombi Axfix 65 Robot interface CNC Turning- and Milling Center MORI SEIKI NZ 2000 T3Y2 Gusdpfx Aozk U Rpjqgeh The NZ2000 T3Y has 2 spindles and 3 turrets, and 2 turrets have the Y-axis function and built-in milling motors. This not only allows synchronized machining using 3 turrets, but also achieves heavy-duty cutting and high-speed machining using rotary tools thanks to the built-in motor turrets. The robot cell has been diemanteled, it is now a stand alone machine. A bar feeder can be added. *

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, We are selling a CNC turning machine, model SL2500SY/650. Year of manufacture: 2002 Gjdpfx Aqjzv N Nqjgjuh Control system: MSG 805 V Software: MAPPS Spindle motor: 22 / 18.5 kW Counter-spindle motor: 11 / 7.5 kW VDI turret Chip conveyor 2-stage clamping system Interface for a bar feeder Travel distances: X 305 mm Z 690 mm Y 120 mm Max. turning diameter: 490 mm Standard turning diameter: 260 mm Max. turning length: 650 mm Max. spindle speed: 4000 rpm Spindle bore: 88 mm

Condition: excellent (used), Year of construction: 2009, CNC Control: MSX 850II X axis mm: 260 Z axis mm: 590 Godsx Eh Nujpfx Aqgsuh Y axis mm: 100 (+/- 50) Maximum Turning Diameter mm: 356 C Axis Increment: 0.001° Maximum Turning Length: 510 Cutting Feed mm/min X,Z,Y: - Swing over Bed mm: Ø 923.8 Swing over Carriage mm: Ø 755 Bar Capacity mm: Ø 65 (main) Max. Rapid Traverse mm/min X,Z,Y: 30,000 / 10,000 Main Spindle (Chuck): 10” Spindle Speed rpm: 6,000 Spindle Power kW: 11 / 7.5 Torque Nm: - Main Spindle Bore mm: - Main Spindle Nose: A2-8 Turret Positions: 16 Number of Live Tool Stations: 16 Live Tool Speed rpm: 6,000 Live Tool Power kW: 5.5 EQUIPMENT Automatic Tailstock 3-color Status Lamp Fixed Tool Holders Parts Extractor

Condition: ready for operation (used), Year of construction: 2009, spindle motor power: 18,000 W, spindle speed (max.): 4,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 795 mm, overall weight: 5,800 kg, number of axes: 5, This 5-axis MORI SEIKI NL 2500 SY was manufactured in 2009. It features a maximum spindle speed of 4,000 rpm, a Y-axis travel of ±60 mm, and a Z-axis travel of 795 mm. The machine is equipped with a robust turret capacity of 12 stations and offers simultaneous turning and milling capabilities. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NL 2500 SY turn-mill centre we have for sale. Contact us for further details. • Rapid traverse rates: • X: 30 m/min • Z: 30 m/min • Y: 10 m/min • Main spindle: • Spindle nose: A2-8 • Max bar capacity: 80 mm • Chuck: Kitagawa B-210, Ø250 mm • C-axis: 360° positioning • Sub-spindle: • Spindle nose: A2-6 • Integrated motor power: 15 kW • Chuck: Kitagawa B-208, Ø210 mm • C-axis: 360° positioning • Parts transfer capability: Yes • Milling/driven tools: • Turret capacity: 12 stations • Driven tool stations: 12 • Driven tool motor power: 5.5 kW • Max driven tool speed: 6,000 rpm • Direct drive tooling, live tool milling, off-centre machining • Turret and tooling: • Turret indexing time: 0.2 sec • Automatic tool measurement: Dual Renishaw tool measuring arms • Mechanical construction: • Guideways: Hardened box ways (prismatic) on all axes • Spindle drive: Built-in integrated motors • Transmission: Direct drive (no belts/gearboxes) • Starting torque: 640 Nm • CNC control: • Control: Mori Seiki MAPPS IV • Conversational programming, load monitoring, tool wear/consumption monitoring • Cooling and lubrication: • Main spindle oil cooler: Daikin • Sub-spindle oil cooler: Daikin • Connectivity: • USB, PCMCIA, RS-232 • Bar feeder interface: Included • Machining capabilities: Godpfx Aqjzcp Hqsgjuh • Simultaneous turning and milling • Y-axis machining • Polar coordinate interpolation • Off-centre drilling and tapping • Front and back working with sub-spindle • Complete part machining in a single setup • Complex multi-axis machining • Typical applications: • Precision turned components • Aerospace parts • Automotive components • Hydraulic components • Medical components • General precision engineering Additional equipment • LNS automatic bar feeder, 1.5 m capacity • Automatic parts catcher • Chip conveyor: Side-mounted hinge belt type • Independent chuck foot pedals (main and sub-spindle) • Electrical transformer • Documentation package: • Operation manual • Programming manual • Parts list • Electrical schematics • Tool holders: Static and driven tool holders included • Other optional equipment: Not included Technical Specification Counter Spindle Yes Driven Tools Yes

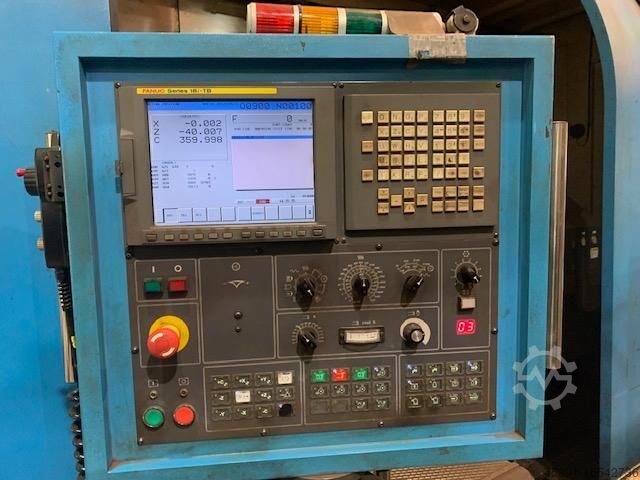

Condition: good (used), Year of construction: 2009, JOHNFORD CNC lathe Type GT-80D-2S Year 2009 CNC Control Fanuc Series 18i-TB Country of origin Taiwan Turret amount of positions 12 Bar passage 165 mm Serial no. TDF9007 Turning Length 2000 mm Turning Diameter Over Bed 1550 mm Spindle Speeds 1000 RPM Swing Diameter Over Bed Slide 1270 mm Longitudinal Travel (Z-Axis) 2000 mm Spindle Diameter In Front Bearing 240 mm Spindle Bore 185 mm Spindle power 37/30 kW Cross Travel 685 mm Gujdpfx Aqjt E Nauegsh Rapid Travel Speed X-Axis 10 m / min Rapid Travel Speed Z-Axis 12 m / min Turret head 12 positions Machine length 9800 mm Machine width 3695 mm Machine Height 5292 mm Weight of the Machine Ca. 40 t

Condition: good (used), Year of construction: 2006, functionality: fully functional, Technical details turning diameter 660/275 mm turning length 1498 mm control Fanuc/Mori Seiki MSX 701 total power requirement 90 kVA weight of the machine ca. 26,6 t dimensions of the machine ca. 5301 x 2997 x 2788 mm Additional information 9-axis CNC turning and milling centre * Fanuc MSX-701 CNC control * Milling spindle at top (B axis), as full 4th axis, positioning 0.0001 deg. * 40-position tool magazine * 10-position turret at bottom, all positions driven * 2 x 3-jaw quick-change chuck KNCS-N 315/91 * KNOLL high-pressure coolant system, pressure setting 12/25/35/45/55/62 and 72 bar, with maintenance-free rotary filter system * Chip conveyor * Drain system for main spindle chuck (controlled via M function) * Drain system for tool cutting edge (controlled via M function) * Coolant gun incl. accessories * Oil mist extraction * Direct measuring system X1, X2, Y-axis * Bar loader interface * Double foot switch for both spindles * Islands and pocket programming for MAPPS * High-speed fixed cycle for MAPPS * Programm memory extension to 8 MB * Programm restart * 3-stage signal lamp * 512 MB memory card (CF card) Swing diameter over cross slide (tool spindle 1): 750 mm Swing diameter over cross slide (turret 2): 400 mm Max. turning diameter (tool spindle 1): 660 mm Max. turning diameter (turret 2): 275 mm Max. machined workpiece length: 1498 mm Max. bar material: 90 mm Travels: X1 axis (tool spindle): 750 mm Y axis (tool spindle): 420 (+/- 210) mm Z1 axis (tool spindle): 1635 + 100 mm for tool change B axis (tool spindle): +/- 120 deg., full B-axis 1 deg. indexed and 0.0001 deg. braked X2 axis (turret): 195 mm Z2 axis (turret): 1525 mm SZ axis (subspindle): 1610 mm Rapid traverse: (X1,Z1) 50 m/min. / (Y,X2,Z2,SZ) 30 m/min. Main and subspindle: Spindle speeds infinitely variable (spindle 1 + 2): 30-3000 rpm. C axis (spindle 1 + 2): 0.001 deg. Main spindle motor: 22/18.5 kW Subspindle motor: 22/18.5 kW Torque (spindle 1 + 2): 1000 Nm Disc turret: Number of tool positions: 10 Speed of driven tools: 6000 rpm. Drive power: 5.5/3.7 kW Milling spindle head: Tool holder: HSK A63 Max. speed: 12,000 rpm Drive power: 18.5/11 kW Torque: 120/44 Nm Tool changer: 40-stations Tool diameter 70/140 mm Tool length 400 mm Tool weight 8/10 kg Total power requirement 90 kVA Main dimensions Length x width x height 5301 x 2997 x 2788 mm Machine weight 26.6 t Accessories: Measuring arm (picture) tool measurement in machine Tool holder + box, reduction sleeves, driven tools Clamping jaws package Collets package Guedezr Hgxspfx Aqgjh

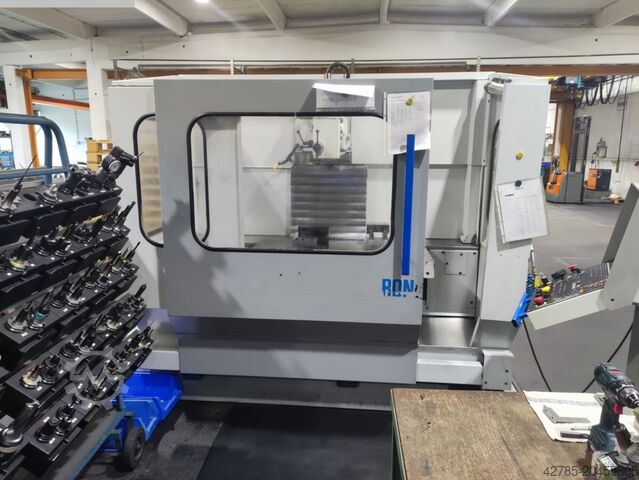

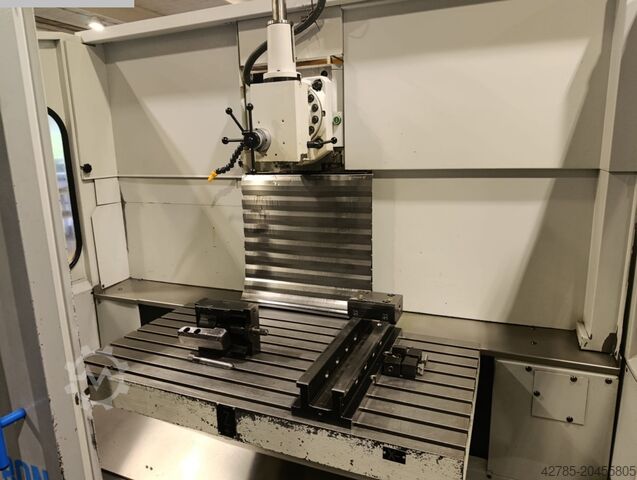

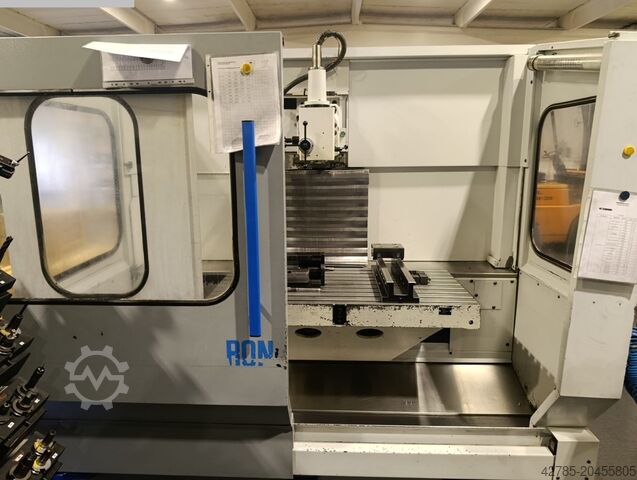

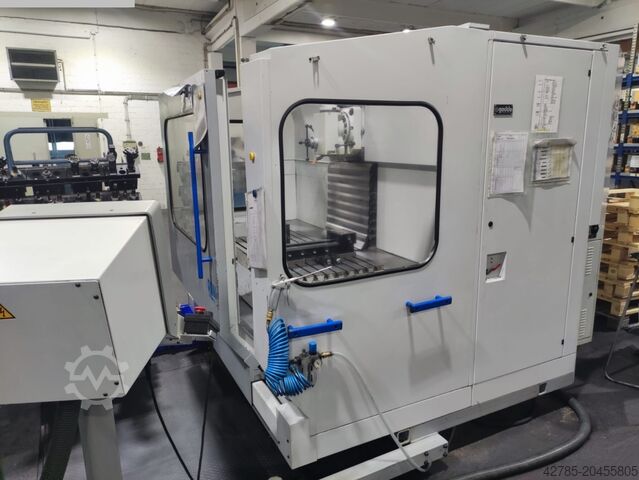

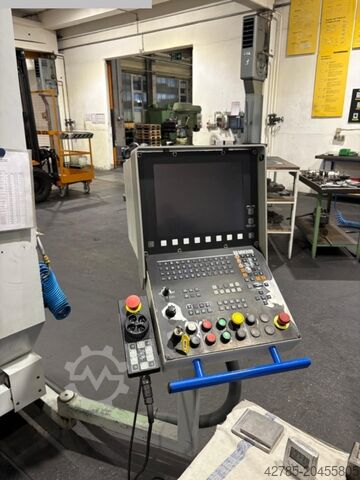

Condition: used, Year of construction: 1996, Technical details: x-travel: 600 mm y-travel: 450 mm z-travel: 400 mm control: Heidenhain TNC 425 spindle taper ISO: SK 40 DIN 69871 quill stroke vertical: 75 mm distance between column - table edge: 190 (fest) vertikal mm spindle head swivable left - right: 90° Vertikal-Spindel ° distance between table/spindle: min./max.: 165/565 Vertikal-Spindel mm distance between table/spindle: min./max.: 165/565 Horizontal-Spindel mm turning speed range: 20 ... 4500 U/min tool changer with: 32 tools (Typ HTC 32) feed:: 1 ... 5000 mm/min Gsdpfx Aju Nc T Rjqgeuh Table dimensions: 850x440 mm table swivelabel +/-: nein = starr ° table load: 500 kg total power requirement: 15 kW weight approx.: 3500 kg dimension machine xH: 2,5 x 3,0 x 2,1 m dimensions electric cabinet LxWxH: 1,6 x 0,6 x 1,7 m Universal Milling and Drilling Machine Equipment: - cooling tank capacity 100 litres, flow rate 16 l/min - control panel with jib length arm - hand wheel control unit - 8 pieces machine base The machine can be demonstrated under power. i.D. *

Condition: used, Year of construction: 2012, turning diameter max. 356 mm turning length 1.255 mm Gjdjz Dbqtopfx Aqgjuh control M 730 BM MAPPS IV greates pass round over bed 920 mm Swing dia. over traverse guideway 742 mm distance between spindles 1.511 mm turning speed range - main spindle 4.000 min/-1 power capacity - main spindel 18,5 / 15 kW spindle nose JIS A2-8 spindle bore 91 mm max. bar capacity 80 mm Spindle speed range subspindle 6.000 min/-1 power capacity - Sub spindle 11 / 7,5 kW spindle bore 43 mm x-travel 260 mm z-travel 1.345 mm Y - Axis +/-50 mm rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min number of toolpositions 12 pos. Schank height for square tool 25 mm Drill shank diameter 50 mm turret change time 0,27 sec. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 5,5 / 3,7 kW total power requirement 50 kVA weight of the machine ca. 7,8 t dimensions of the machine ca. 6,0 x 3,0 x 2,3 m CNC - Turning- and MillingCenter DMG MORI SEIKI - NLX 2500 SY / 1250 - Subspindle - WITHOUT extraction system
