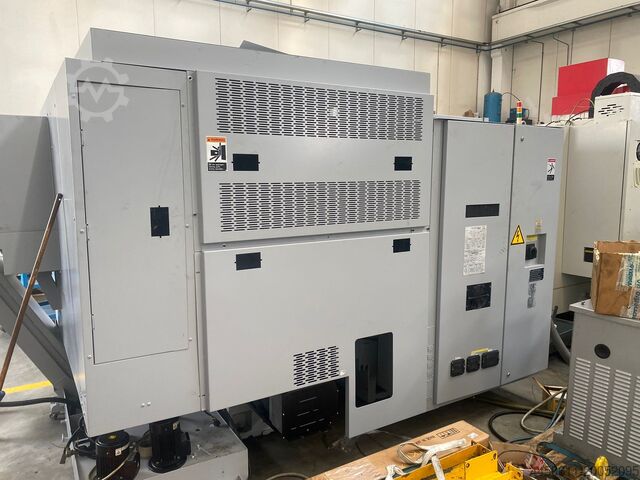

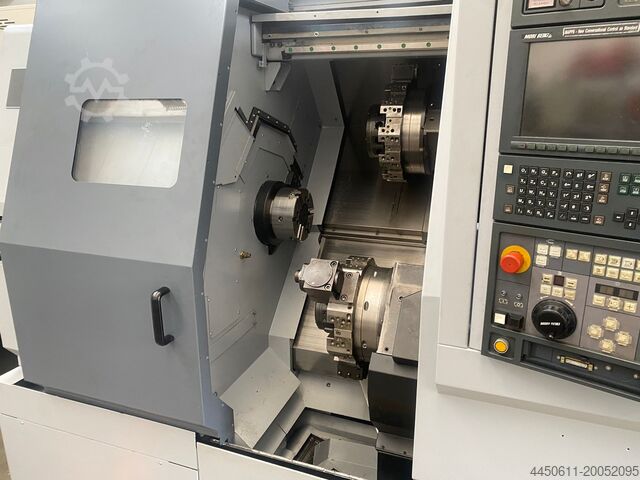

CNC LATHE

Mori Seiki ZL-203/SMC

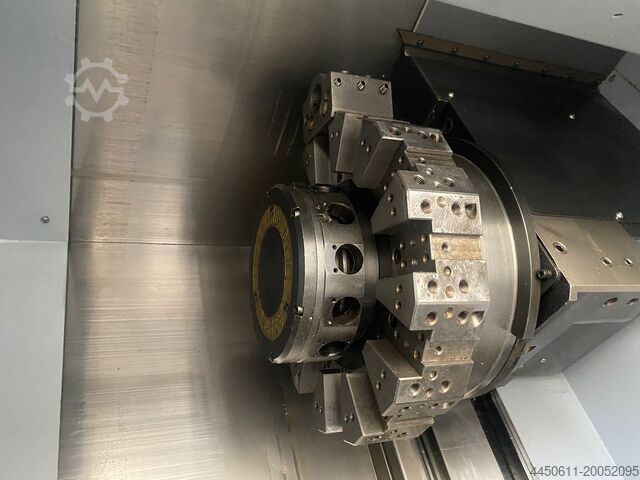

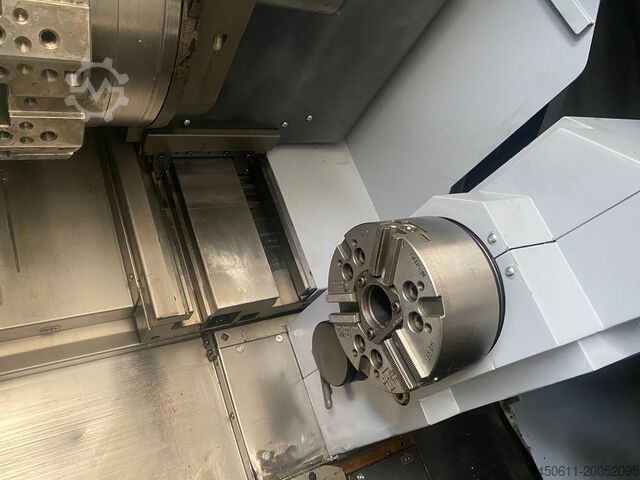

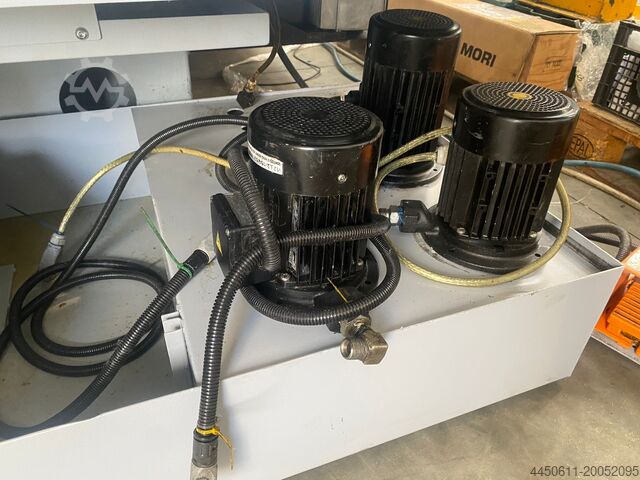

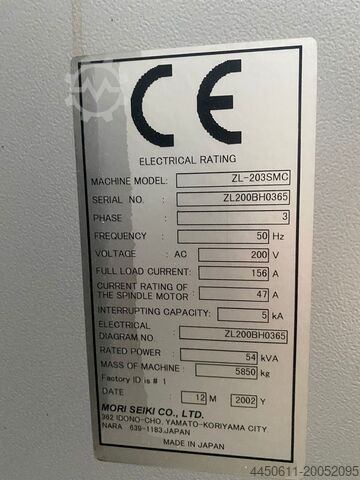

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MAIN SPINDLE - Spindle nose : A2-8 - Spindle power : 18,5 [kW] - Spindle speeds : 4000 [rpm] - Max. bar diameter : 80 [mm] - Max. turning diameter : 366 [mm] - C axis indexing precision : 0.001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 280 x 785 [mm] - Y stroke : +/- 50 [mm] - Live tools speed : 6000 [rpm] * Live tools power : 5,5 [kW] TAILSTOCK - Tailstock type : Numérique - Type of cone : CM5 - Distance between centers : 705 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 39 [kVA] MACHINE HOURS - Number of working hours : 7261 [h] WEIGHT & DIMENSIONS - Machine floor space : 3800 x 2143 [mm] - Machine height : 2232 [mm] - Machine weight : 6100 [kg] EQUIPMENT - CNC : MORI MSX-850 III (Mitsubishi 720BM) - Tool probe - 3 colors status lamp - Coolant tank - Chips conveyor - Chuck 3 jaws : hydraulique Bsdpfxoyxr U Rj Alzelp - Number of turning tool holders : 3

Condition: excellent (used), Year of construction: 2012, Technical data: 3-axis machine: X, Y, Z Travel ranges (X/Y/Z): 635 / 510 / 460 mm CNC control: SIEMENS 840D Bsdpfxozn Rane Alzolp Table size: 790 x 560 mm Max. workpiece weight: 600 kg Tool holder: SK 40 Number of positions in the tool changer: 30 Spindle speed: 20 – 12000 rpm Motor power: 13 kW Dimensions (length x width x height): approx. 3400 x 2450 x 2800 mm Machine weight: approx. 4.3 tons Condition: very good condition, little use The seller is not liable for typographical or data transmission errors. The machine's appearance, technology, and wear are consistent with its age; used machines are sold without any warranty.

Condition: used, Year of construction: 2011, Technical details: standard turning dia.: 200 turning length: max. 810 mm control: MSX-701 MAPPS IV greates pass round over bed: 800 mm Max. distance between centres: 1130 mm max. turning diameter: 320 mm max. workpiecediameter: 300 mm bar material dia.: 65 mm Traverse X-Axis 1: 210 Traverse X-Axis 2: 210 mm Traverse X-Axis 3: 210 mm Traverse Y-Axis 1: 110 (+65/-45) mm Traverse Y-Axis 2: 110 (+45,/-65) mm Traverse Z-Axis 1: 300 mm Traverse Z-Axis 3: 300 mm Traverse Z-Axis 2: 810 mm Traverse B-Axis: 870 mm turning speed range - spindle: 5.000 1/min Number of spindle speed ranges: 2 . spindle nose: JIS A2-6 spindle bore: 73 mm spindle bearing diameter: 120 mm C-Axis: 0,001 ° turning speed range - spindle: 5.000 1/min spindle nose: JIS A2-6 spindle bore: 73 mm bar material dia. max: 65/52 mm spindle bearing diameter: 120 mm C-Axis: 0,001 ° Number of Turrets: 3 . Number of tool stations: 16 x 3=48 pos Schank height for square tool: 20 mm Diameter of boring bar: 32 mm turret changing time (4-stations): 0,18 sec Number of driven tools: 16 x 3=48 pos max. spindle speed driven tools: 6.000 U/min. Rotary tool machining ability: M16 / Ø16 . rapid traverse X-axis: 30 m/min rapid traverse Y-axis: 20 m/min rapid traverse Z-axis: 50 m/min drive capacity - spindle motor: 25 / 22 kW power capacity - driven tools: 7,5 / 5,5 kW total power requirement: 92,7 kVA weight of the machine ca.: 9,4 t dimensions of the machine ca.: 4,0 x 2,8 x 2,4 m Accerories Chip conveyor Coolantsystem C-axis in main and sub spindle part counter total counter tool setting Overhead partsgripper with conveyor belt. Spindle 1 Chuck SMW KNCS-N 210 / 52 mm Spindle 2 Collet Chuck Hainbuch Spanntop nova Kombi Axfix 65 Robot interface Bljdpfx Alszk U Rpozep CNC Turning- and Milling Center MORI SEIKI NZ 2000 T3Y2 The NZ2000 T3Y has 2 spindles and 3 turrets, and 2 turrets have the Y-axis function and built-in milling motors. This not only allows synchronized machining using 3 turrets, but also achieves heavy-duty cutting and high-speed machining using rotary tools thanks to the built-in motor turrets. The robot cell has been diemanteled, it is now a stand alone machine. A bar feeder can be added. *

Condition: good (used), Year of construction: 2006, functionality: fully functional, Technical details turning diameter 660/275 mm turning length 1498 mm control Fanuc/Mori Seiki MSX 701 total power requirement 90 kVA weight of the machine ca. 26,6 t dimensions of the machine ca. 5301 x 2997 x 2788 mm Additional information 9-axis CNC turning and milling centre * Fanuc MSX-701 CNC control * Milling spindle at top (B axis), as full 4th axis, positioning 0.0001 deg. * 40-position tool magazine * 10-position turret at bottom, all positions driven * 2 x 3-jaw quick-change chuck KNCS-N 315/91 * KNOLL high-pressure coolant system, pressure setting 12/25/35/45/55/62 and 72 bar, with maintenance-free rotary filter system * Chip conveyor * Drain system for main spindle chuck (controlled via M function) * Drain system for tool cutting edge (controlled via M function) * Coolant gun incl. accessories * Oil mist extraction * Direct measuring system X1, X2, Y-axis * Bar loader interface * Double foot switch for both spindles * Islands and pocket programming for MAPPS * High-speed fixed cycle for MAPPS * Programm memory extension to 8 MB * Programm restart * 3-stage signal lamp * 512 MB memory card (CF card) Swing diameter over cross slide (tool spindle 1): 750 mm Swing diameter over cross slide (turret 2): 400 mm Max. turning diameter (tool spindle 1): 660 mm Max. turning diameter (turret 2): 275 mm Max. machined workpiece length: 1498 mm Max. bar material: 90 mm Travels: X1 axis (tool spindle): 750 mm Y axis (tool spindle): 420 (+/- 210) mm Z1 axis (tool spindle): 1635 + 100 mm for tool change B axis (tool spindle): +/- 120 deg., full B-axis 1 deg. indexed and 0.0001 deg. braked X2 axis (turret): 195 mm Z2 axis (turret): 1525 mm SZ axis (subspindle): 1610 mm Rapid traverse: (X1,Z1) 50 m/min. / (Y,X2,Z2,SZ) 30 m/min. Main and subspindle: Spindle speeds infinitely variable (spindle 1 + 2): 30-3000 rpm. C axis (spindle 1 + 2): 0.001 deg. Main spindle motor: 22/18.5 kW Subspindle motor: 22/18.5 kW Torque (spindle 1 + 2): 1000 Nm Disc turret: Number of tool positions: 10 Speed of driven tools: 6000 rpm. Drive power: 5.5/3.7 kW Milling spindle head: Tool holder: HSK A63 Max. speed: 12,000 rpm Drive power: 18.5/11 kW Torque: 120/44 Nm Tool changer: 40-stations Tool diameter 70/140 mm Tool length 400 mm Tool weight 8/10 kg Total power requirement 90 kVA Main dimensions Length x width x height 5301 x 2997 x 2788 mm Machine weight 26.6 t Accessories: Measuring arm (picture) tool measurement in machine Tool holder + box, reduction sleeves, driven tools Clamping jaws package Collets package Bledpfszr Hgxjx Alzsp

Condition: excellent (used), Year of construction: 2009, CNC Control: MSX 850II X axis mm: 260 Z axis mm: 590 Y axis mm: 100 (+/- 50) Maximum Turning Diameter mm: 356 C Axis Increment: 0.001° Maximum Turning Length: 510 Cutting Feed mm/min X,Z,Y: - Swing over Bed mm: Ø 923.8 Swing over Carriage mm: Ø 755 Bledpfxox Eh Nuo Alzsp Bar Capacity mm: Ø 65 (main) Max. Rapid Traverse mm/min X,Z,Y: 30,000 / 10,000 Main Spindle (Chuck): 10” Spindle Speed rpm: 6,000 Spindle Power kW: 11 / 7.5 Torque Nm: - Main Spindle Bore mm: - Main Spindle Nose: A2-8 Turret Positions: 16 Number of Live Tool Stations: 16 Live Tool Speed rpm: 6,000 Live Tool Power kW: 5.5 EQUIPMENT Automatic Tailstock 3-color Status Lamp Fixed Tool Holders Parts Extractor

Condition: ready for operation (used), Year of construction: 2009, spindle motor power: 18,000 W, spindle speed (max.): 4,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 795 mm, overall weight: 5,800 kg, number of axes: 5, This 5-axis MORI SEIKI NL 2500 SY was manufactured in 2009. It features a maximum spindle speed of 4,000 rpm, a Y-axis travel of ±60 mm, and a Z-axis travel of 795 mm. The machine is equipped with a robust turret capacity of 12 stations and offers simultaneous turning and milling capabilities. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NL 2500 SY turn-mill centre we have for sale. Contact us for further details. • Rapid traverse rates: • X: 30 m/min • Z: 30 m/min • Y: 10 m/min • Main spindle: • Spindle nose: A2-8 • Max bar capacity: 80 mm • Chuck: Kitagawa B-210, Ø250 mm • C-axis: 360° positioning • Sub-spindle: • Spindle nose: A2-6 • Integrated motor power: 15 kW • Chuck: Kitagawa B-208, Ø210 mm • C-axis: 360° positioning • Parts transfer capability: Yes • Milling/driven tools: • Turret capacity: 12 stations • Driven tool stations: 12 • Driven tool motor power: 5.5 kW • Max driven tool speed: 6,000 rpm • Direct drive tooling, live tool milling, off-centre machining • Turret and tooling: • Turret indexing time: 0.2 sec • Automatic tool measurement: Dual Renishaw tool measuring arms • Mechanical construction: • Guideways: Hardened box ways (prismatic) on all axes • Spindle drive: Built-in integrated motors • Transmission: Direct drive (no belts/gearboxes) • Starting torque: 640 Nm • CNC control: • Control: Mori Seiki MAPPS IV • Conversational programming, load monitoring, tool wear/consumption monitoring • Cooling and lubrication: • Main spindle oil cooler: Daikin • Sub-spindle oil cooler: Daikin • Connectivity: • USB, PCMCIA, RS-232 • Bar feeder interface: Included • Machining capabilities: Bodpfx Alezcp Hqozolp • Simultaneous turning and milling • Y-axis machining • Polar coordinate interpolation • Off-centre drilling and tapping • Front and back working with sub-spindle • Complete part machining in a single setup • Complex multi-axis machining • Typical applications: • Precision turned components • Aerospace parts • Automotive components • Hydraulic components • Medical components • General precision engineering Additional equipment • LNS automatic bar feeder, 1.5 m capacity • Automatic parts catcher • Chip conveyor: Side-mounted hinge belt type • Independent chuck foot pedals (main and sub-spindle) • Electrical transformer • Documentation package: • Operation manual • Programming manual • Parts list • Electrical schematics • Tool holders: Static and driven tool holders included • Other optional equipment: Not included Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: excellent (used), Year of construction: 2010, FANUC MSX-711 Mapps 4 control with B + C axis Bsdpfx Alszwt N Dszjlp Working travels 500 x 350 x 510 mm Table swivelling -180°/+160° Table rotating 360° Spindle taper HSK63 Spindle speeds -20'000 rpm tool changer 61 pos. Coolant through spindle 3D tracer M&H Tool lenght measuring device Tool breakage control device MARCELS MASCHINEN CH

Condition: used, Year of construction: 2012, functionality: fully functional, Manufacturer: MORI SEIKI CO., LTD. (Japan) Machine model: NLX2500SY Year / Month of manufacture: August 2012 (08 / 2012) Machine weight: 6,360 kg Electrical connection: 3 phases / 50 Hz / 200 V AC Full load current: 144 A Spindle motor current: 177 A Connected power: 50 kVA Main technical specifications Working area & travels: Max. turning diameter: approx. 366 mm Max. turning length: approx. 705 mm Swinging diameter over bed: 920 mm X-axis travel: 260 mm Y-axis travel: ±50 mm (100 mm) Z-axis travel: 795 mm Max. bar diameter: 80 mm Main spindle: Speed range: max. 4,000 rpm Drive power: 18.5 / 15 kW Spindle nose: JIS A2-8 Bodpfoz Hwknsx Alzelp Chuck size: 10 inches Counter spindle: Speed range: max. 6,000 rpm Drive power: 11 / 7.5 kW Chuck size: 6 inches Tool turret: Number of tool stations: 12 stations (powered) Speed of powered tools: max. 10,000 rpm Power of powered tools: 5.5 / 4.2 kW

Condition: used, Year of construction: 2008, turning diameter 600 mm turning length 1.045 mm control MSX - 711 III MAPPS III swing diameter over support 600 mm distance between spindles 1.255 mm max. bar capacity 65 mm turning speed range - main spindle max. 5.000 min/-1 power capacity - main spindel 25 / 22 kW no. of turning speeds 2 spindle nose JIS A2-6 spindle bore 73 mm internal diameter 120 mm C-Axis 0,0001 ° chucking diameter 200 mm Speed range Tool Spindle max. 12.000 min/-1 Power rating Tool Spindle 5,5 / 3,7 kW tool taper Capto C5 internal diameter 65 mm B - Axis 0,0001 ° swivellable +/- 120 ° x-axis 685 (610 + 75) mm y-axis +/- 125 mm z-axis 1 mm number of toolpositions 12 pos. Shank height for square tool 20 mm Drill shank diameter max. 32 mm tools in tool magazin 40 pos. max. tool diameter 70 mm max. tool-dia with free toolbox 125 mm max. tool length 300 mm Bljdpfez At T Hsx Alzsp max. tool weight 4 kg change-time tool to tool 1,25 sec Rapid traverse X / Z: 50 m/min Rapid traverse Y: 30 m/min Rapid traverse X2 / Z2: 30 m/min total power requirement 88 kVA weight of the machine ca. 16,5 t dimensions of the machine ca. 6,0 x 4,0 x 3,0 m High-Precision 5 Achsen CNC-Turning- and Millingcenter MORI SEIKI - NT 3200 DCG / 1000 SZ - 5 Axis - Swivable Milling-Head (B-Axis) - Subspindle - lower turret - approx. 11,300 power-on hours - approx. 9,200 spindle hours

Condition: like new (used), Year of construction: 2010, operating hours: 14,010 h, turning length: 800 mm, turning diameter: 430 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 455 mm, travel distance Z-axis: 800 mm, rotational speed (max.): 6,000 rpm, feed length X-axis: 455 mm, feed length Z-axis: 430 mm, workpiece weight (max.): 5 kg, total height: 8,500 mm, total length: 2,500 mm, total width: 2,495 mm, overall weight: 8,500 kg, CNC controller: Fanuc FS31IA5 (MAPPS 4) Capacity Turning length mm: 800 Max. turning diameter mm: ø: Ø430 Turn-mill spindle X-axis travel mm: 455 Z-axis travel mm: 800 B-axis degree: ±120 (0.001º) Speed spindle rpm: 12000 Drive power kW: 9/5.5 Y-axis travel mm: ±105 Tool magazine Magazine places: 76 Tool holder: Capto C5 Tool length max. mm: 250 Tool diameter max. mm: 70/130 Tool weight max kg: 5 Lower turret X-axis travel mm: 160 Z-axis travel mm: 730 Number of tool slots St .: 10 Main spindle Speed spindle rpm: 6000 Spindle bore mm: 73 Chuck type: Hollow Chuck (8") Manufacturer: KITAGAWA Counter spindle Speed spindle rpm: 6.000 Drive power spindle kW: 7.5/5.5 Chuck type: Solid Chuck (8") Manufacturer: KITAGAWA Equipment Chip conveyor Signal lamp High pressure pump Chuck foot switch (double) for main and counter spindle Coolant gun Working time hours Under power: 76482 Spindle 1: 14010 Spindle 2: 4306 Potencial nominal kVA: 48 Basic machine dimensions / weight Length mm: 2500 Blsdpfx Ajy Rpq Tolzep Width mm: 2495 Height mm: 8500 Weight kg: 8500
