Strapping machine

MOSCA KPK-121-18

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, A. Ducker Robotics Robofeed II loader Kawasaki robot 200 kg. 6 axes Year 2018 B. EDF FD 618 casemaker Year 2018 Full Servo Introduction Swing no crush N. 6 fixed printing units from above N. 6 IR dryers Vacuum transport between the units Nwjdpowhy Absfx Afcoc Pre-creasing unit with 1:1 diameter wheels Double shaft slitter Rotary die cutter with Serrapid quick coupling Stripping transfer unit between die cutter and folder gluer ERO electronic gluer Vacuum driven folder gluer with automatic adjustment of folding swords and lateral squaring wheels Counter Ejector from above Max mechanical speed 25,000 boxes per hour Max sheet width 1,800 mm. - min. 360 mm. Max sheet length 600 mm. - min. 200 mm C. Ducker Robotics Palletizer Year 2018 with two Kawasaki robots

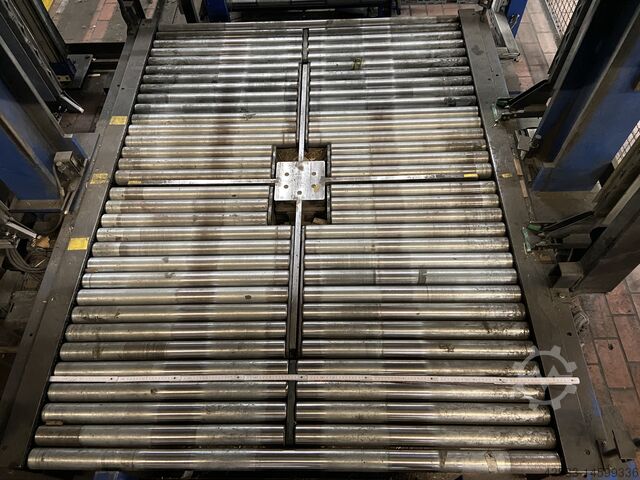

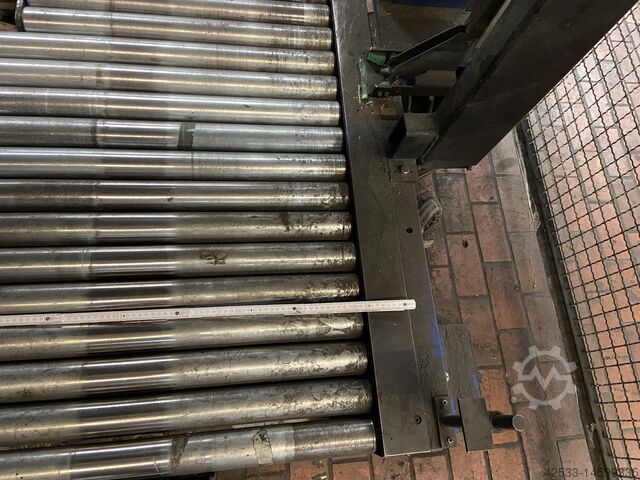

Condition: used, Year of construction: 2002, functionality: fully functional, type of input current: three-phase, Mosca Strapping Press Type: KPK-121 Year of manufacture: 2002 With integrated turntable roller conveyor Turntable diameter: 1,800 mm Suitable for Euro and industrial pallets, pallet runners in the direction of travel Pallet dimensions: Length: min. 1,000 mm / max. 1,600 mm Width: min. 800 mm / max. 1,000 mm Height: 145 mm Package size including pallet: Length: min. 800 mm / max. 1,600 mm Njdpfx Asxk T Dhjfcowc Width: min. 800 mm / max. 1,400 mm Height: min. 500 mm / max. 2,000 mm For cross strapping, the following pallet dimensions are possible: Length: min. 800 mm / max. 1,200 mm Width: min. 1,200 mm / max. 1,200 mm Dimensions of the packing press: Max. clearance height: 1,800 mm Max. clearance width: 1,400 mm Platen length: 1,600 mm Pressing force: up to max. 50,000 N, adjustable via potentiometer Pressing speed: 75 mm/s Performance of pallet packing press: With double strapping: max. 120 pallets/hour With cross strapping: max. 70 pallets/hour Number of position programs: 10 Strapping material: PET strap Size/width: 12 mm

Condition: good (used), Year of construction: 2002, functionality: fully functional, Automatic Pallet Packing Press MOSCA KPK-121 Year of manufacture: 2002 With integrated rotary turntable roller conveyor (diameter: 1,800 mm) Suitable for Euro and industrial pallets, with pallet runners aligned in the conveying direction Pallet dimensions: Length: min. 1,000 mm / max. 1,600 mm Width: min. 800 mm / max. 1,000 mm Height: 145 mm Packed dimension including pallet: Length: min. 800 mm / max. 1,600 mm Width: min. 800 mm / max. 1,400 mm Height: min. 500 mm / max. 2,000 mm For cross-strapping, the following pallet dimensions are possible: Length: min. 800 mm / max. 1,200 mm Width: min. 1,200 mm / max. 1,200 mm Dimensions of the packing press: Max. clearance height: 1,800 mm Max. clearance width: 1,400 mm Length of the pressing plate: 1,600 mm Nwodewlaicspfx Afcec Pressing force: up to max. 50,000 N, selectable via potentiometer Pressing speed: 75 mm/s Capacity of the pallet packing press: With double strapping: max. 120 pallets/hour With cross-strapping: max. 70 pallets/hour Number of position programs: 10 Strapping band: PET strap Dimension/width: 12 mm Pallet wrapper: Max. pallet dimensions: Width: 1,000 mm / Length: 1,200 mm Wrapping dimensions: 1,200 mm x 1,200 mm Roller conveyor under the wrapper: W: 1,000 mm x L: 2,500 mm The system consists of: - Centering roller conveyor - Rotary corner conveyor - MOSCA pallet packing press - Robopac pallet wrapper - 3 x outfeed roller conveyors
