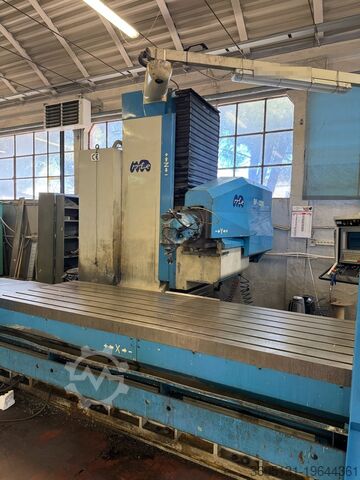

Milling machine MTE BF 3200

MTE BF-3200

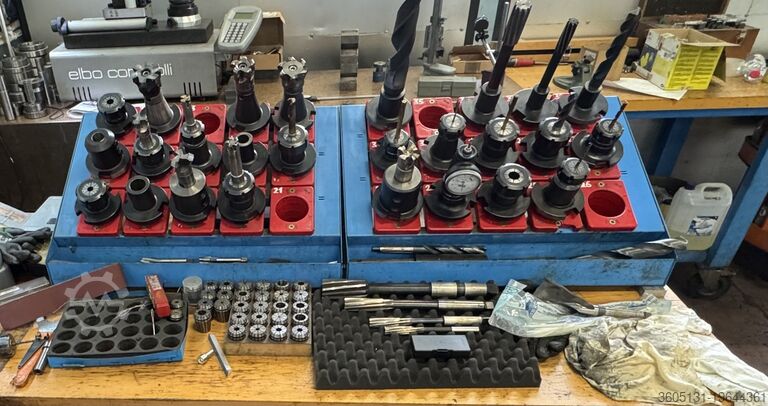

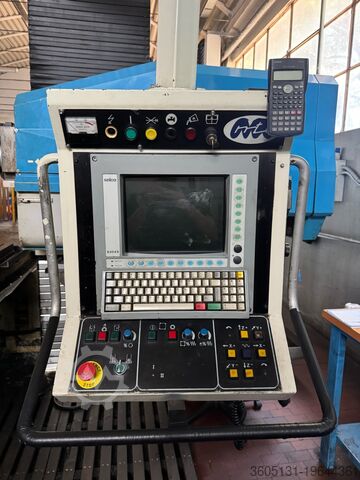

Condition: used, Year of construction: 2006, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, spindle speed (max.): 6,000 rpm, spindle speed (min.): 20 rpm, table width: 1,000 mm, table load: 11,000 kg, table length: 3,200 mm, type of input current: AC, workpiece weight (max.): 11,000 kg, overall weight: 18,500 kg, input voltage: 400 V, Technical Description CNC bed milling machine in very good condition, manufactured by MTE. Year of manufacture: 2006 Control system: HEIDENHAIN iTNC 530 24-position tool changer Chip conveyor Travel range: Longitudinal (X) = 3,000 mm Transverse (Y) = 1,200 mm Vertical (Z) = 1,500 mm Work table/clamping surface: Length = 3,200 mm Width = 1,000 mm Maximum table load: 11,000 kg Tool holder: ISO 50, DIN 69871 AD Draw bolt: DIN 69872 Form A Main drive: Maximum drive power: from 198 rpm, 30 kW Spindle speed range: Spindle speed = 20 to 6,000 rpm Feed rates: X, Y, and Z axes mm/min 2 – 15,000 Maximum rapid traverse rate: X, Y, and Z axes mm/min 25,000 Space requirement: Length approx. mm 8,100 Djdpfx Aozu R Rasdrscn (without transverse conveyor + 1,280 mm) Height approx. = 3,300 mm Width approx. (at Y = 1,200 mm) mm 5,000 Weight: approx. 18,500 kg Connection power: approx. 52 kVA
