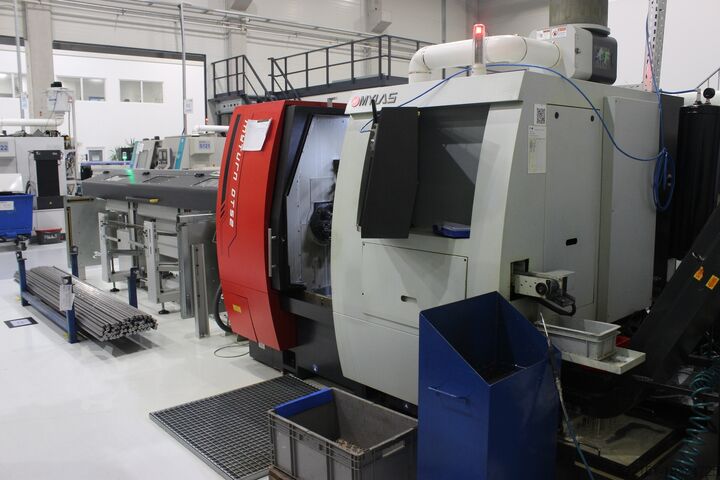

CNC turning and milling center

Mylas MY-TURN DT52

Condition: excellent (used), Year of construction: 2019, operating hours: 34,775 h, functionality: fully functional, machine/vehicle number: BDT5206F0124, turning length: 350 mm, turning diameter over cross slide: 260 mm, turning diameter: 150 mm, spindle motor power: 7,500 W, spindle speed (min.): 50 rpm, spindle speed (max.): 4,500 rpm, spindle bore: 55 mm, travel distance X-axis: 175 mm, travel distance Y-axis: 35 mm, travel distance Z-axis: 450 mm, mount diameter: 20 mm, rapid traverse X-axis: 18 m/min, rapid traverse Y-axis: 18 m/min, rapid traverse Z-axis: 24 m/min, milling spindle length: 13 mm, rotational speed (max.): 4,500 rpm, rotational speed (min.): 50 rpm, type of input current: three-phase, feed length X-axis: 175 mm, feed length Y-axis: 35 mm, feed length Z-axis: 450 mm, torque: 14 Nm, bar passage: 50 mm, feed rate X-axis: 18 m/min, feed rate Y-axis: 18 m/min, feed rate Z-axis: 24 m/min, total height: 1,800 mm, total length: 2,600 mm, total width: 1,950 mm, collet bore: 55 mm, bar diameter (max.): 50 mm, quill travel distance: 450 mm, spindle nose: A2-5, swing diameter over bed slide: 260 mm, overall weight: 5,100 kg, spindle diameter: 55 mm, working range: 350 mm, tool length: 20 mm, turning diameter over bed slide: 260 mm, Capacity Swing Over Saddle: 260 mm Chuck Type: DIN 177E Max. Bar Turning Length: 150 mm Max. Turning Length: 350 mm Max. Turning Diameter: 150 mm Max. Turning Bar Diameter: Ø50 mm Max. Turning Bar Diameter: 175 mm (X1) Travel Z1 / Z2 Axis Travel: 450 mm (Z1) Y1 Axis Travel: ±35 mm X1 / X2 Axis Rapid Traverse: 18 m/min (X1) Z1 / Z2 Axis Rapid Traverse: 24 m/min (Z1) Y1 Axis Rapid Traverse: 18 m/min Spindle Spindle Nose: A2-5 Hole Through: 55 mm Spindle Speed: 50 – 4500 rpm Spindle Motor Type: β8 / 12000i Spindle Motor Power (Continuous/30min): 7.5 / 11 kW Turret Number of Tool Stations: 12 O.D. Tool Size: 20 mm I.D. of Boring Bar Holder: 25 mm Turret Indexing Time: 0.1 – 0.3 sec Tool Spindle Speed: 6000 rpm Tool Spindle Motor Type: α2 / 10000i Tool Spindle Power (Continuous/30min): 2.2 / 3.7 kW Tool Spindle Torque (Continuous/30min): 14 / 23.5 Nm Drilling Capacity: Ø13 mm Endmill Capacity: Ø13 mm Tapping Capacity: M8 mm Sub-Turret Number of Tool Stations: 8 Gedpew Saczofx Abpekd O.D. Tool Size: 20 mm I.D. of Boring Bar Holder: 20 mm Turret Indexing Time: 0.1 – 0.3 sec Tool Spindle Speed: 6000 rpm Tool Spindle Motor Type: α8 / 6000i Tool Spindle Power (Continuous/30min): 2.2 kW Tool Spindle Torque (Continuous/30min): 22 Nm Drilling Capacity: Ø13 mm Endmill Capacity: Ø13 mm Tapping Capacity: M8 mm X1 / X2 Servo Motor: 1.8 kW Z1 / Z2 Servo Motor: 1.8 kW Y1 / Y2 Servo Motor: 1.8 kW Turret Servo Motor: 0.75 kW Coolant Pump: 0.9 kW High Pressure Cutting Fluid Pump: 0.4 kW High Pressure Cutting Fluid Pump: 3.75 kW Parts Conveyor Motor: 0.03 kW Chip Conveyor Motor: 0.2 kW Lubrication Pump: 0.003 kW Oil Mist Collector: 0.75 kW Tank Capacity Hydraulic Tank Capacity: 55 L Lubrication Tank Capacity: 2 L Coolant Tank Capacity: 250 L Machine Machine Dimensions (W × D × H): 2600 × 1950 × 1800 mm Machine Weight: 5100 kg
