CNC lathe

NAKAMURA AS-200

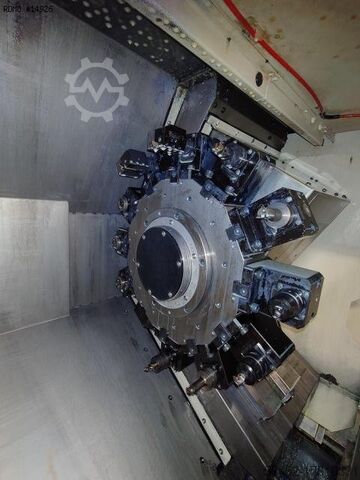

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MAIN SPINDLE - Spindle nose : A2-6" - Spindle power : 11/15 [kW] - Torque : 51/110 [Nm] - Spindle speeds : 4500 [rpm] - Max. bar diameter : 66 [mm] - Max. turning diameter : 340 [mm] - Max. diameter on bench : 400 [mm] - Max. chuck diameter : 190 [mm] - C axis indexing precision : 0.001 [°] TURRET - Number of positions : 12 Hodpfsvzt Hbox Afcei - Number of motorized positions : 12 - X/Z stroke : 227.5 [mm] - Y stroke : +/- 41 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 3.7/5.5 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 21 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2000 X 1600 [mm] - Machine height : 1850 [mm] - Machine weight : 4300 [kg] EQUIPMENT - CNC : Fanuc - Interface : Ethernet / RS232 / USB / PCMCIA - Coolant tank - Chips conveyor - Oil mist extractor : DONALDSON - Tool probe - Parts catcher - Parts conveying strip - Fire extinguisher * : SIEMENS * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Number of turning tool holders : 2 - Number of fixed tool holders : 4 - Collet chuck : EROWA

Condition: good (used), Year of construction: 2020, 5-Axis CNC Machining Center - Universal - Manufacturer: MAZAK Machine Model: Variaxis J-500 Control Unit: Mazatrol SmoothG Year of Manufacture: 2020 Number of Controlled Axes: 5 TECHNICAL DATA Travel - X-Axis (mm): 350 - Y-Axis (mm): 550 - Z-Axis (mm): 510 - Swivel Range A-Axis (degrees): -120 / +30 - C-Axis (rotary axis, rotary and tilt table): (degrees): 360 Feed Rate X/Y/Z (mm/min): 8,000 Rapid Traverse - X-Axis (mm/min): 30,000 - A-/C-Axis: 10,800 degrees/min. Spindle - Max. Spindle Speed (rpm): 12,000 - Drive Power (ED) 100 / 40 (kW): 7.5 / 11.0 Tool Magazine - Tool Holder: BT40/CAT40 - Pull Stud: Yamazaki ANSI Type - Number of Tool Positions: 30 - Tool Diameter (mm): 90 - Tool Length (mm): 300 Machine Table: Swivel rotary table Pallet System - Pallet Changer: 2-position - Clamping Table Dimensions (mm): 500 x 400 Swivel Rotary Table - Rotary Table Diameter (mm): 500 x 400 - Max. Workpiece Weight (kg): 200 FEATURES + Through-spindle coolant 70 bar + Hinged belt chip conveyor + Oil mist extractor + Tool length measurement and breakage control + Additional interior lighting + Signal tower (3-color) Hodpeyabu Ijfx Afcsi Subject to change and errors in technical details and specifications.

Condition: good (used), Year of construction: 2014, Table size 3500 x 820 mm, Traverses XYZ 3000 x 820 x 720 mm, Table load 2500 kgs, Hjdpfx Afow Nwt Ejcoi Spindle taper Din 40, Spindle speed 12000 rpm, spindle power 22Kw, 30 ATC, Mazatrol Matrix Nexus control, through spindle coolant, swarf conveyor

Condition: used, Technical details: operating hours: 2151 h milling spindle operating time: 2 h turning spindle switch on : 709 h swing diameter: 1000 mm turning diameter: 900 mm workpiece height max.: 800 mm control: Mazatrol Smoothg x-axis: 470 mm z-axis: 876 mm c-axis: 20 m/min tool holder / places: 12 Hjdpsydvfcefx Afcoi revolution per minute: Revolver 4000 U/min workpiece weight: 3000 kg rapid power traverse in X-and Z direction: 24 m/min weight of the machine ca.: 14 t dimension machine xH: 3989 x 2375 x 3400 mm

Condition: used, Year of construction: 2016, The Mazak VTC 800 series is a line of powerful, large-format 5-axis turning centers for large workpieces, known for their high precision and rigidity, ideal for aerospace, energy and heavy machinery, with functions such as integrated spindles, fast tool change, and for efficient complete processing. Accessories/Options: Tool magazine for 30 tools Tool length measurement, tool breakage detection Factory-installed preparation for chip conveyor (left) Magazine (HSK) for 155 tools Air blower at the workpiece Signal light (end of machining: yellow) Additional: Work area lighting Coolant gun Air blower through the spindle 70 bar preparation, including interface for high-pressure system Automatic opening/closing of the operator door Mazak Monitoring System B RMP 60 (only/H/V) Collision monitoring by Brankamp 2 Renishaw TS27R tool presetting devices NC rotary table Holding device for vertical use of the NC rotary table Table center partition for pendulum machining 3D model of the work area in STEP format 5-axis milling technology Knoll compact filter KF400/2300 (filtration capacity 400 l/min, tank volume 2300 l/min) 1) High-pressure cooling 70 bar, 7 pressure stages Chip conveyor, hinged belt design Additional M-codes: 1 set = 2 M-codes Preparation for dual extraction system (mechanical nozzle) 0.198 mm Transformer for the European market 1 set of manuals in electronic form on CD 1 set of adjustment tools Hedpfxsx Idwis Afcoi Foundation set (anchor bolts + plates) MAZAK standard paint Work area lighting Additional items: AirFresh FMN V12 extraction system (installed on both sides and coupled with a door sensor) Holding device for vertical operation of the rotary table 2 x Renishaw TS27R integrated tool presetting devices Spare parts: Y-axis motor, tool magazine Linear axis shifter motor Rotary axis shifter motor Cylinder for swivel unit width: 3500 mm length: 820 mm X-axis travel range: 3000 mm Y-axis travel range: 800 mm Traversal range Z-axis: 720 mm min. distance spindle nose to table top: 140 mm max. distance from spindle nose to table top: 860 mm max. table load: 2500 kgf B-axis: ± 110 degrees Working spindle taper: HSK63 Max speed: 18,000 RPM Min. Drehzahl: 35 min-1 Rated power: ( 100 % continuous operation) 33,0 kW Emergency travel speed X-Y & Z axis: 50 m/min Working table width: 3500 mm Worktable length: 820 mm Width of T-slots: 18 mm Number of T-slots: 7 Distance of T-slots: 100 mm Table height from the floor: 870 mm Tool changer number of tool places (Standard): 30 Number of tool stations (optional): 48 Tool selection method: shortest path tool shank: Steep cone 40 With occupied side positions: 80 mm With available spaces: 130 mm max. tool weight: 8kgf Total weight of all magazine tools: 150 kgf max. tool length: 350 mm Tool change time: (Span-to-Span) 4.7 s Connected load: 400 V / 50/60 Hz Air pressure: 5 – 9 bar Air volume: 260 l/min Tank capacity: 500 l Dimensions (Height x Length x Width): 3376 x 5480 x 4051 mm Weight approx: 16300 kg colour: Gray / Black

Condition: ready for operation (used), Year of construction: 2012, controller manufacturer: SIEMENS, controller model: 840 D, number of axes: 4, This 4-axis Mazak VTC 800/30SR was manufactured in 2012. It features a high-pressure coolant system at 15 bar, a 48-tool magazine, and dual auto tool length measurement units. Equipped with Siemens software, a Visiport, and an RMP60 probe, it's ideal for precise vertical machining tasks. If you are looking to get high-quality milling capabilities, consider the Mazak VTC 800/30SR machine we have for sale. Contact us for more information. • High-pressure coolant (15 bar) • Auto tool length measurement x 2 units • Visiport • 19" screen Hjdpfox D I A Sox Afcei • Siemens software P • Signal tower • Additional work light • RMP60 probe • Bracket for NCRT for vertical use • Table centre partition • 48-tool magazine Additional equipment • Consep 2000 (chip conveyor/coolant system) for 15 bar, left-hand discharge

Condition: excellent (used), Year of construction: 2015, Maximum turning diameter: approx. 380 mm Maximum swing over bed: approx. 675 mm Maximum turning length: approx. 500–540 mm Bar capacity (main spindle): approx. 76 mm (3″) MAIN SPINDLE Maximum spindle speed: 4,000 rpm Spindle motor power: 26 kW Spindle bore: approx. 77–88 mm Chuck: 8″ power chuck Hjdpjyg It Dofx Afcji SUB SPINDLE Maximum spindle speed: 6,000 rpm Spindle motor power: approx. 11 kW Chuck: 6″ or 8″ power chuck Part transfer function AXES X-axis travel: approx. 230 mm Z-axis travel: approx. 575 mm C-axis on main spindle (full contouring and interpolation) TURRET / TOOLING Number of tool stations: 12 positions Live tooling capability (drilling and milling) Tool measurement system (Tool Eye) CNC control: Mazatrol Matrix Nexus EIA/ISO programming Conversational Mazatrol programming 19″ color LCD screen (touch screen) COOLING & CHIP HANDLING High pressure coolant through spindle: 15 bar External flood coolant via spindle nozzles Hinged belt chip conveyor with side discharge Complete coolant system with pumps and filters AUTOMATION Automatic bar feeder included Automatic chuck open/close Chuck status feedback via sensors Automatic part transfer between spindles OTHER FEATURES Pitch error compensation (X, Z) 3D tool compensation Helical interpolation Polar coordinate programming Thread cutting (G33) Workpiece coordinate rotation User macro functions Tool breakage detection MACHINE DIMENSIONS & WEIGHT (approx.) Machine weight: 5,000 – 5,500 kg Machine footprint: approx. 2,600 × 2,000 × 1,900 mm

Condition: ready for operation (used), Year of construction: 1991, cutting diameter 220 mm capacity 90 degrees: square 220 x 220 mm turning speed range: 20 - 140 m/min saw band length 3720 x 34 x 1.1 mm height of material-table 825 mm coolant capacity 80.0 l total power requirement 2.5 / 3.5 kW weight of the machine ca. 1500 kg range L-W-H 2350 x 2050 x 1500 mm - in checked conditions - machinevideo - ?v=joc0EbemYC8 Equipment: - electro-hydraulic band saw - FULLY AUTOMATIC - for sawing hollow profiles and solid materials made of steel, stainless steel, Hsdpfx Ajxab R Uefcoi . tool steel, non-ferrous metals and plastic - control panel on the front right * including button for manual operation (setup/individual cut) - electro-hydraulic material clamping - stepless cutting speed .. 20-140 m/min. - electro-motor chip conveyor - manual adjustment of the material feed range * via handwheel including analogue value display - automatic height adjustment of the saw frame * including device for material detection (start of cut) - coolant device

Condition: excellent (used), Year of construction: 2022, Turning diameter 376mm, turning length 760mm, bar capacity 76mm, Y axis -/+ 52.5mm, C axis 0.001 degrees on both spindles, 12 station turret, 22KW Motor, Main spindle 4000rpm, Hedpjyll Txsfx Afcji sub-spindle 4500rpm, 3 jaw chucks, swarf conveyor, tool setter,

Condition: ready for operation (used), Year of construction: 2023, number of axes: 9, This 9-axis NAKAMURA-TOME WY150 was manufactured in 2023, featuring a turn-mill centre with a comprehensive toolholder setup including 6 external, 4 internal, 3 radial rotating, and 12 axial rotating holders, plus a collet chuck and a 3-jaw chuck. Consider the opportunity to buy this NAKAMURA-TOME WY150 turn-mill centre. Contact us for more information. Additional equipment • 6 external toolholders Hsdpfx Afoyb Sakjcoi • 4 internal toolholders • 3 radial rotating (driven) toolholders • 12 axial rotating (driven) toolholders • 1 collet chuck • 1 three-jaw chuck
