NAKAMURA NTJ100

NAKAMURA NTJ100

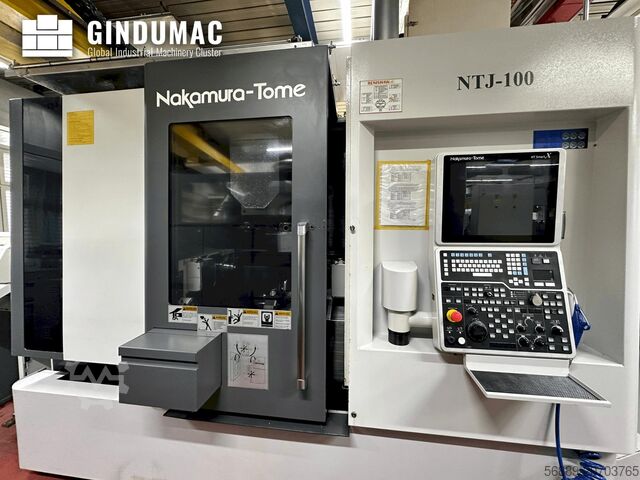

This 9-axis Nakamura NTJ100 turn-mill centre was manufactured in 2017, featuring a bar capacity up to 65 mm and dual spindles with maximum speeds of 4500 and 5000 rpm respectively. It includes a Samsys bar loader, Absolent extraction system, and a variety of automated features such as coolant supply through the spindle, parts catcher, and automatic tool setting devices. Consider the opportunity to buy this Nakamura NTJ100 turn-mill centre. Contact us for more information about this machine.

• Increased bar capacity: 65 mm left, 51 mm right
• Workpiece measurement: han-bei measuring probe for automatic workpiece measurement (infrared or radio type) for left and right spindle
• Left + right, with auto swing-in type and 2x 4 measuring directions for quick and precise tool setting via the nc function.
• Operating time 43399h
• Coolant system: coolant through spindle (CTS); coolant float switch for machine stop on low level; additional coolant flushing via the spindle (left and right)
• Bar capacity: Ø 51 mm
• Parts catcher type A with collecting tray, max. Ø 65 x 150 mm, 3.0 kg, spindle side, left, with plastic lining
Rjdpfx Afjx D Iuzjcsp
• Chuck blow-out device for left spindle
• Automatic power shut-off
• Preparation for oil mist extraction system with connection nozzle Ø 150 mm
• Robot/automation prep: pneumatic flap for robot handling on top of the door, opening approx. 400 x 400 mm
• Handwheel for manual tracking of defined contours
• Data server with 1 GB ATA memory card

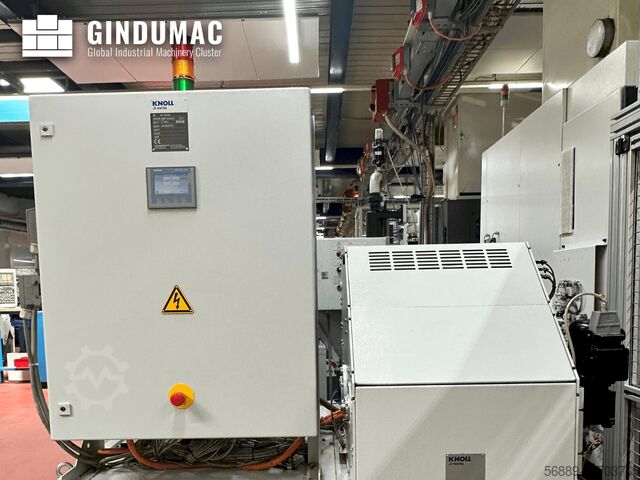

• Interface for KNOLL system
• Triple signal lightSamsys bar loader with a 1.5 m bar loading capacity has the following dimensions: Length: 225 cm + 43 cm intermediate guide Width: 120 cm (including loading ramp and control panel) Height: 145 cm or 180 cm with the flap openThe machine was mainly used to process aluminium (95%).

Additional equipment

• Samsys bar loader, including extension
• Absolent extraction system
• Slat-belt chip conveyor with interface, time-interval control, and alarm evaluation
