Chamber filter press

NETZSCH 25 Platten

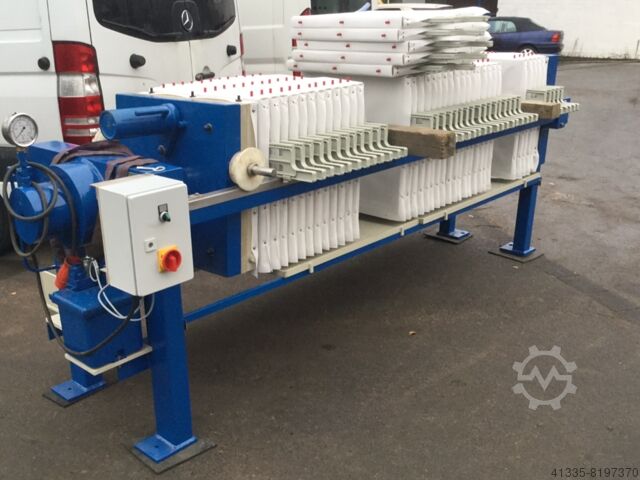

Overhauled and newly painted. The images are example photos of similar machines and are intended to show the design and quality of the overhaul.
All wear parts are replaced.
Filter cloths are new.
1-year warranty on the filter press, excluding wear parts.
Plate size: 630 x 630 mm
Dimensions: approx. 2000 x 1100 x 1500 mm
Chamber depth: 25 mm
Capacity: 210 liters
Operating pressure: 12 / 15 bar
Feed inlet: flange 2“, center
Number of plates: 25 plates
Plate material: polypropylene
Cloth material: PP 5009 (white)
Ljdpfsi Igi Iox Amzjhn
Design: open filtration
Closing pressure: max. 385 bar
Painting: primed and painted in RAL 5010, filtrate trough + drip tray in plastic.
Motor hydraulics with single-acting cylinder.

Optional: double-acting cylinder that retracts the heavy pressure plates.
With the single-acting cylinder, the operator must manually push the pressure plates back.

Optional: filling pump as a piston diaphragm pump or compressed air diaphragm pump.

If the plate size, number of plates, or other features do not meet your requirements, we can offer corresponding modifications!
