Laminating installation

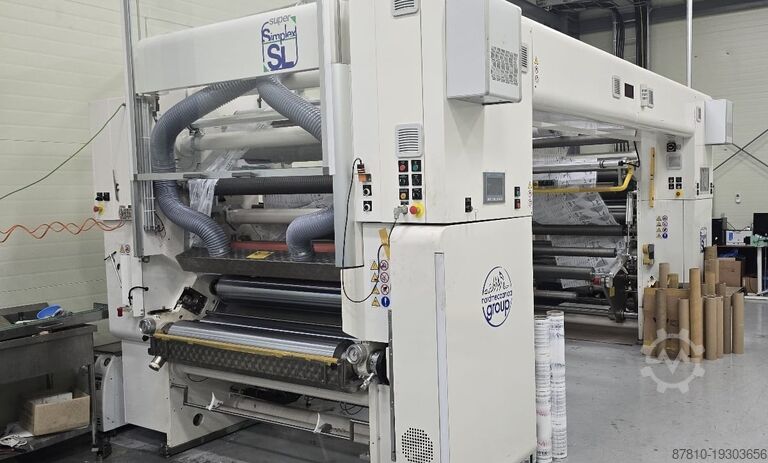

Nordmeccanica SuperSimplex L 1300

Condition: used, Year of construction: 2013, • Web width: 1300 mm • Max mechanical speed: 400 m/min (depending on materials and process) • Substrate types: Film, foil, paper, and combinations thereof Main Components and Features Automatic web tension control across all unwinds and rewinds Motorized adjustment for nip pressure and web alignment Touchscreen HMI for process control and recipe management Modular design for easy access and maintenance Web inspection and defect detection (if installed) Corona Treatment Unit Nordmeccanica Solventless Mixing Unit Continuous, inline mixing of two-component adhesive system Equipped with: Precision gear pumps for both A and B components Automatic ratio control and monitoring Pumps for continuous filling to ensure uninterrupted production Easy-access design for cleaning and maintenance Drying Tunnel Equipped with 2 thermal oil heating batteries Hsdexg Hqaopfx Afcoi Provide stable and efficient heat transfer Maintain consistent tunnel temperature, essential for proper adhesive drying Integrated with 2 modulating valves Automatically adjust the thermal oil flow Enable fine control of tunnel temperature for different lamination applications LEL (Lower Explosive Limit) Monitoring System Zellweger LEL sensor. Continuously monitors solvent vapor concentration

Condition: ready for operation (used), Year of construction: 2012, This is a side seam wicket bag machine Lemo Intermat 850 STN-CP Knoter, production type: wicket bags for bread, chicken, diapers, toilet paper, hygiene products and other types of wicket bags, number of lanes: single lane / lane wicket, processable materials: LDPE, HDPE, PP and recycled extracts, sealing width (bag length): 120-450mm, draw length (bag width): 200-850mm, gripper arm length: 600mm, max. linear speed: 65m/min, output capacity: 140 knot bags/min, max. number of bags per stack: 250, drive system: PLC-controlled, operator interface (terminal), print mark control, servo motor drive, nip feed rollers, sealing bars. Attachments and accessories: bottom gusset (only bottom gusset included), handle unit, longitudinal sealer, pre-sealer, angle sealer, cross sealer, handle punch, photo cell for printed film, automatic one-step conveyor (index conveyor), handle hole punch, G-gusset unit, V-gusset station, web guiding system 1800mm, anti-static bars, automatic labeling system. Machine is in good condition. Hjdpow U T T Ejfx Afcei

Year of construction: 2013, condition: excellent (used), functionality: fully functional, 2013 Maximum width: 370 mm 10 colors Rail Combo laminator on rail Web turn bar Chilled drums Hjdpow Sw Rpofx Afcei Chiller 2 die-cutting stations 5 x Hot Air dryers Tooling

Condition: used, Year of construction: 2014, functionality: fully functional, Coated web width 1315 mm Max. web width 1330 mm primary unwinder: 1000 mm secondary unwinder: 1200 mm rewinder: 1200 mm speed: 400 m/min Accessories: - Solvent-less mixer Nordmeccanica Hjdpfswp R Htjx Afcoi - Continuous filling World Mixer (with 4 tanks of 200 kg) - 5 rolls Materials: COATED WEB BOPP 12 - 80 μ, PETP 10 - 30 μ, LDPE, LLDPE 30 - 200 μ, OPA 12 - 18 μ, NYLON CAST 30 - 80 μ ALU (Foil) 6,3 - 40 μ, PP CAST 60 - 150 μ, PAPER 40 - 150 gr/m2 LAMINATED WEB BOPP 12 - 80 μ, PETP 8 - 30 μ, LDPE, LLDPE 20 - 200 μ, OPA 12 - 18 μ, NYLON CAST 20 - 80 μ ALU (Foil) 6,3 - 40 μ, PP CAST 20 - 150 μ, COEX FILM 25 - 200 μ PAPER 40 - 150 gr/ m2

Condition: like new (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 010/Q, For sale is a paper bag making machine manufactured by the company GAPS from Italy. Hedoww T Naopfx Afcsi Web width: 670–1670 mm Roll diameter: 1200 mm Core diameter: 76 mm Paper weight: 90–140 g/m² Bag width: 240–540 mm Cut-off length with handles: 380–670 mm Gusset: 90–270 mm Handle height: 100 mm Handle width: 16 mm Patch length: 160 mm Patch height: 52 mm Patch roll diameter: 1200 mm Patch roll width: 100 mm Patch roll basis weight: 80–100 g/m² Maximum production speed: 120 cycles Connected load: 30 kW Weight: 24,500 kg Machine dimensions: 16,500 × 3,500 × 2,800 mm

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, COMEXI ML2 Laminating machine, manufactured 2021 for sale! Designed to work with solvent and water-based adhesives or lacquers TECHNICAL INFORMATION The machine general structure · Primary unwinder · Application unit · Drying tunnel · Secondary unwinder · Lamination unit · Rewinder Solvent base and water-based section (Rotogravure application trolley) Flexo printing section (application trolley in flexo) APPLICATION Mechanical speed: 450 m/min (1476 ft/min) (Production speed depends on the support and adhesives used). • Maximum web width: 1.330 mm (52”) • Maximum laminating width: 1.315 mm (51.7”) • Minimum width of web to be laminated: 500 mm (19.6”) PRIMARY & SECONDARY UNWINDERS Maximum roll diameters: 1000 mm (40”) Maximum roll weight: 1000 kg (2204 lb) Mandrel diameters: (76 / 152 mm) 3", 6" Minimum web tension: 20 N Maximum web tension: 550N REWINDER Maximum roll diameters: 1000 mm (40”) Maximum roll weight: 1000 kg (2204 lb) Minimum web tension: 40 N Maximum web tension: 550N DRYAING TUNNEL One blower fan of 7500m3/h One extraction fan of 7500m3/h ELECTRICS Voltage 3x400V+-10%// 50Hz HEATING SYSTEM Gas burners Heating power of each heating source 300kw PNEUMATICS · Pressure 6-9 bar · Consumption with pump and stirrers 420l/min. · Feed line :1/2” HYDRAULICS Hydraulic power source (heating units) · Water pressure 3 bar max. · Consumption in cooling 900l/h max · Feed tube ½” CHILL ROLL · Water pressure 3 bar max · Water temperature 15-20˚C · Temperature difference 4 ˚C · Pressure difference 2.5 bar · Flow rate 2000l/h · Feed tube 1/2” Materials · LDPE, LLDPE 30-200mkm · NYLON CAST 30-80mkm · OPA 10-50mkm · PET 10-50mkm Hsdpfx Aoyhnbkofcoi · PP CAST 30-200mkm · PAPER 40-200gsm · BOPP 12-80mkm ADDITIONALLY INCLUDED 6KW CORONA TREATER for primary unwinder 6KW CORONA TREATER for secondary unwinder ANTISTATIC BARS for primary unwinder ANTISTATIC BARS for secondary unwinder ANTISTATIC BARS for rewinder

Condition: good (used), Year of construction: 1987, functionality: fully functional, Shaftless unwinding with the following parameters Max. jumbo roll width: 1400 mm Hedpfxexlizfs Afcsi Min. jumbo roll width: 480 mm Max. jumbo roll diameter: 1600 mm Clamping head diameter: 150 mm and 300 mm Min. speed: 300 m/min The control system can be renewed by us upon request.

Condition: like new (used), Year of construction: 2022, functionality: fully functional, overall weight: 4,000 kg, power: 17 kW (23.11 HP), total width: 1,510 mm, total length: 6,500 mm, total height: 1,820 mm, Automatic paper roll paper lid machine with inline packing machine for 8oz and 12oz cups Speed - 70~100 pc/minute Raw material - One-side or two side (polyethylene)film coated/laminated paper (Like the PE coated paper; PLA paper; card boad paper with film) Hedpfsxur Hisx Afcoi Paper Lid Size - for 8oz and 12oz Working Power - 12kw Total Power - 17KW, Power Source - 3-phase, 380V, 50/60Hz, User Need To Buy Air Compressor

Condition: excellent (used), Year of construction: 2002, COMEXI solventless laminating machine, year 2002, 1300 mm wide; two Corona VETAPHONE treaters; BST aligners; DOPAG dosing mix; quick sleeve change; touch screen; pneumatic shafts; temperature controllers. Hjdpfx Aet Ipatefcji

Condition: used, Rollenschneider Aufwickler / Slitter Rewinder Kampf Conslit 16/06 ÜK in good working condition. Rollenschneider Aufwickler / Slitter Rewinder Kampf Conslit 16/06 ÜK Baujahr / Year 1999 - Serial-No. 210271 Arbeitsgeschwindigkeit / Speed max. 550m/per Minute Arbeitsbreite / Working width max. 1650mm Schnittbreite min. 50mm bei Hülsen 70 & 76mm /  Cutting width min. 50mm  Cutting width 70 & 76mm Schnittbreite min. 200mm bei Hülsen 152mm /  Cutting width min. 200mm  Cutting width 152mm Zu verarbeitendes Material / Material to be processed: Kunststofffolien aus / plastic films made of: PE, PP, PA, PET, PVC, Papiere und Laminate Hartfolien / hard films ca. 10 - 250 µm Weichfolien / Soft films ca. 20 - 500 µm Aufwicklung / Rewinder Aufwickel-Druchmesser / Rewinder Diameter max. 610mm Hsdpsylw Dijfx Afcsi Aufwickelhülse / Winding Sleeve: Pappe, Kunststoff oder Metall / Cardboard, Plastic or Metal Innendurchmesser d. Hülse / Diameter inside 70mm, 76mm and 152mm Online-Video-Inspection by WhatsApp - MS Zoom - Telegram On Stock Emskirchen/Nürnberg - Available Immediately - Can be test
