Sheet metal deburring machine / Deburring machine

NS Maquinas DM 1100 C

Condition: new, Year of construction: 2026, functionality: fully functional, working width: 1,100 mm, type of input current: three-phase, sheet thickness (max.): 50 mm, sheet thickness steel (max.): 50 mm, sheet thickness aluminum (max.): 50 mm, sheet thickness copper (max.): 50 mm, sheet thickness brass (max.): 50 mm, total length: 2,000 mm, total width: 2,590 mm, total height: 2,150 mm, overall weight: 2,500 kg, input voltage: 400 V, warranty duration: 12 months, table width: 1,100 mm, workpiece height (max.): 50 mm, power: 13 kW (17.68 HP), workpiece width (max.): 1,100 mm, pass-through width: 1,100 mm, DM1100 2C Working capacity (mm): 1100×50 Number of cross-belt stations: 2 Cross-belt speed (m/s): 2-8 Feed speed (m/s): 0.6-3.2 Cross-belt motor (kW): (4x) 3 Dusdpfxoyiyhlo Ag Hsu Feed motor (kW): (3x) 0.18 Total power (kW): 13 Current consumption (A): 30 Dust extraction port per head (Ø mm): 220 Dimensions (mm): 2000X2590x2150 Weight (kg): 2470

Condition: new, Metal Deburring and Edge Rounding Machine (Double Side). DM1100 2C, edge rounds top and bottom sides of metal parts in one single pass. This double sided operation machine deburrs metal sheets rounding its internal and external contours. Featuring 2 sets of double cross belts this machine removes sharp edges on stainless steel, steel and aluminum parts cut by laser, punching or shearing. This metal deburring machine can easily edge round parts with small dimensions, being capable of deburring different shapes and parts sizes from 50mm up to 1100mm. Processes simultaneously both sides of metal sheet parts cut by laser or punching machine, saving time and reducing operation costs. Additional conveyor belt and support table enables single side edge rounding of metal parts down to 50x50mm. DM1100 2C can edge round metal parts with plastic foil, keeping the original finishing and assuring the work purely on the edges. Easy and tool free cross belt replacement. Program for automatic positioning of upper and lower cross belts in order to improve the access, reducing replacement procedure time. Dsdpfxsd Ev Upe Ag Houu High performance on all edges and also on internal holes. Easy to use with an integrated touch screen for monitoring the working settings and the machine alarms. Technical Details: Working capacity (mm) 1100x50 No. Cross belt stations 2 Cross belt speed (m/s) 2-8 Feeding speed (m/m) 0.6-3.2 Cross Belt Motor (kW) (4x) 3 Feeding motor (kW) (3x) 0.18 Total power (kw) 13.1 Consumption (A) 30 Dust extraction connection (Ø mm) 150 Dimensions (mm) 2560x1980x2150 Weight (kg) 2210

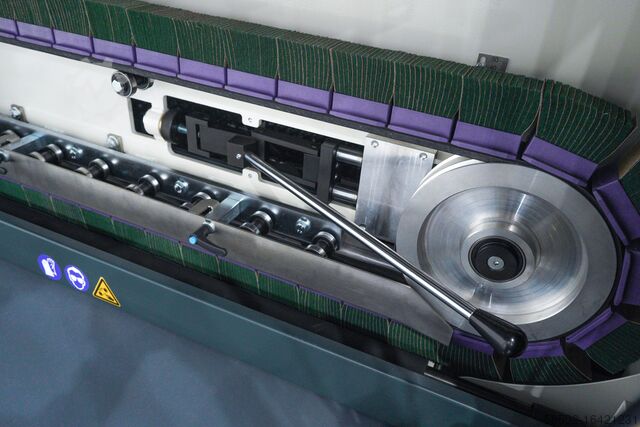

Condition: new, Metal deburring and edge rounding machine – DM1100 C – performs edge rounding and removes sharp edges on both external and internal contours of stainless steel, steel or aluminium parts either cut in laser, shear or punching machine. This machine works metal parts of different dimensions including products as small as 50x50mm. DM1100 C – Metal Deburring Machine has a station with double cross belts for the metal deburring and edge rounding, leaving clean, soft and burr-free edges on the complete parts. High performance on all edges and also on internal holes. Two cross belts mounted with abrasive blocks run in opposite directions, completing edge rounding on the complete area of the part. DM1100 C can edge round parts with plastic foil, keeping the original finishing and assuring the work purely on the edges. Technical Specifications: Working capacity (mm) 1100x50 No. Cross belt stations 2 Cross belt speed (m/s) 8 Feeding speed (m/m) 0.6-3.2 Cross Belt Motor (kW) 3 Feeding motor (kW) 0.18 Total power (kw) 6.2 Dusdsd Evcwopfx Ag Hou Consumption (A) 13 Dust extraction connection per head (Ø mm) 100 Dimensions (mm) 2270x1560x1940 Weight (kg) 1200

Condition: new, DESCRIPTION DM100 Z2C - performs edge rounding and removes sharp burrs from both the inner and outer edges of steel, stainless steel or aluminium parts after laser, shear or punch cutting of metal parts from 50 x 50 mm up to 1100 x 100 mm in size. Ekdjtxp The 1st station processes the products through a contact roller (approx. 55° shore) with an abrasive belt and removes strong burrs in the first step. The 2nd station processes the products with 2 counter-rotating cross belts each from below and from above. The cross belts round off the parts to be machined on both the inner and outer edges. A big advantage is also the deburring of products with surface protection foil, because only the edges are processed without damaging the foil. Technical data - DM1100 Z2C: Dusdpfx Aed Ixadsg Hju Working capacity (Ø mm) 1100x100 No. of belt stations (Z) 1 No. of cross belt stations 2 Abrasive belt, dimensions (mm) 1100x2200 Abrasive belt speed (m/s) 8-22 Cross belt speed (m/s) 2-8 Feed speed (m/s) 0.6-3.2 Sanding belt motor per head (kW) 18.5 Cross belt motor (kW) (2x) 3 Feed motor (kW) (3x) 0.18 Total power (kW) 33 Power consumption (A) 62 Rod suction connection per head (Ø mm) 150+185 Dimensions (mm) 3600x2330x2350 Weight (kg) 5000
