Machining Center - Horizontal

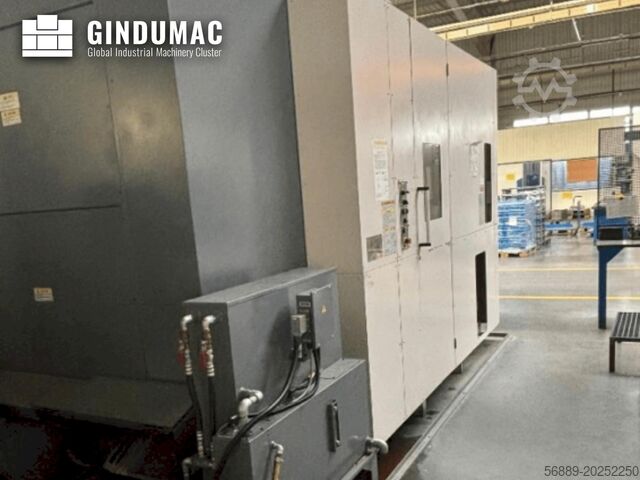

OKUMA MB-5000H

Condition: ready for operation (used), Year of construction: 2010, travel distance X-axis: 760 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 760 mm, total height: 2,864 mm, overall weight: 11,500 kg, spindle speed (max.): 15,000 rpm, tool weight: 10,000 g, number of axes: 4, This 4-axis Okuma MB 5000H was manufactured in 2010. It features a robust 500 × 500 mm pallet, capable of handling a maximum load of 500 kg, and offers a comprehensive range of movements with 760 mm travel in X, Y, and Z axes. Equipped with a high-speed spindle up to 15,000 min⁻¹ and a 64-tool magazine, this horizontal machining centre is ideal for complex machining tasks. Contact us for more information about this machine. • Spindle center to pallet top: 50–810 mm • Spindle nose to pallet center: 135–895 mm • Table/pallet: 500 × 500 mm; max load 500 kg; indexing 1° • Workpiece capacity: max Ø800 × 1,000 mm • cutting feed 1–60,000 mm/min; table indexing motor 3.0 kW • Tooling: tool shank MAS403/BT40; pull stud MAS 2; magazine 64 tools; random selection • floor space 2,700 × 4,710 mm Additional equipment Hnjdpfx Aasx D Rrceisr • Chip conveyor • Through-spindle coolant (CTS) • Tool presetting at table edge • Provision for Renishaw probe • Shower/washdown system

Condition: used, Year of construction: 1984, functionality: fully functional, travel distance X-axis: 1,800 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 2,000 mm, table load: 5,000 kg, spindle diameter: 110 mm, total height: 3,800 mm, total length: 5,000 mm, total width: 3,000 mm, table length: 1,520 mm, table width: 1,225 mm, feed length X-axis: 1,800 mm, feed length Y-axis: 1,500 mm, feed length Z-axis: 2,000 mm, Tool holder SK50, Heidenhain control, machine is ready for collection and immediately operational. Hedpfx Aoxga Tnjaionr

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 760 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 760 mm, table load: 500 kg, spindle speed (max.): 15,000 rpm, TECHNICAL DETAILS X-axis travel: 760 mm Y-axis travel: 760 mm Z-axis travel: 760 mm Spindle center to table surface: 50 to 810 mm Spindle end to table center: 135 to 895 mm Table size: 500 x 500 mm Max. load capacity: 500 kg Index positions: 360 Speed range: 50 to 15,000 rpm Number of speed ranges: stepless Taper: NT No. 40 Spindle diameter: 70 mm Feed Rapid traverse (X/Y/Z): 60,000 mm/min Manual feed (X/Y/Z): 1 to 60,000 mm/min Tool changer Tool holder: Standard MAS BT40 Magazine capacity: 48 stations Hedpfx Aasxvq Hdoienr Max. tool diameter (adjacent positions occupied): 70 mm Max. tool diameter (adjacent positions free): 150 mm Max. tool length: 300 mm Max. tool weight: 10 kg MACHINE DETAILS Total power requirement: 43 kW Dimensions & Weight Space requirement: 2.7 x 4.73 x 2.87 m Machine weight: 11.5 t

Condition: excellent (used), Year of construction: 2011, TECHNICAL DETAILS CNC control: MSX-501III X axis mm: 560 Y axis mm: 560 Z axis mm: 660 B axis deg.: 360.000 Table load capacity kg: 400 Cutting feed rate mm/min X,Y,Z: 60,000 Max. rapid traverse m/min X,Y,Z: 50 Spindle speed rpm: 12,000 Spindle power kW: 15 Taper type: ISO-40 Torque Nm: 120 Tool changer type: Chain Tool changer positions: 60 Max. tool diameter mm: 70 Max. tool diameter with adjacent positions empty mm: 170 Max. tool length mm: 450 Max. tool weight kg: 8 Coolant tank capacity l: 500 Hjdsxfka Nspfx Aaionr Through-spindle coolant (high-pressure): Yes EQUIPMENT Double chip conveyor ISO-40 taper High-pressure through-spindle coolant with pump Tool breakage detection probe Part measuring probe RENISHAW MACHINE DIMENSIONS Length mm: 3,755 Width mm: 2,300 Height mm: 2,610 Weight kg: 7,600

Condition: ready for operation (used), Year of construction: 1988, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,250 mm, table load: 6,300 kg, spindle diameter: 120 mm, spindle speed (min.): 2,000 rpm, quill travel distance: 600 mm, quill stroke: 600 mm, quill diameter: 120 mm, Control: Wotan 1500 Dialog, SK50 DIN 69871, complete documentation available, table size 1600 x 1250, T-slot width 22 H7, Heidenhain linear scales/measurement systems, Siemens feed drive. Hodpfx Aaoyxwwweijnr

Condition: excellent (used), Year of construction: 2009, Hwacheon Cutex 160, Year 2009 CNC Control Fanuc OT i 12-station turret LNS bar feeder (max. bar diameter 42 mm) Tool package (including driven tool holders) Chip conveyor Tailstock Technical data: Swing diameter over bed: 550 mm Max. turning diameter: 300 mm Max. turning length: 300 mm X-axis travel: 170 mm Z-axis travel: 335 mm C-axis Max. bar capacity: 45 mm Spindle speed: 6000 rpm Turret: 12 stations Rapid traverse X: 36 m/min Hsdpfjyc Nryox Aaienr Rapid traverse Z: 36 m/min Drive power: 20 kW Machine weight approx.: 3200 kg

Year of construction: 1989, condition: ready for operation (used), A Maho CNC 4-axis universal bed-type milling machine is available. Travel X/Y/Z: 1600mm/800mm/800mm, table dimensions X/Y: 1250mm/800mm, max. table load: 3000kg, spindle mount: SK50, main spindle speed: 4000rpm, power: 22kW. Tool positions: 36, max. tool diameter: 160mm/210mm, max. tool length: 315mm/400mm, max. tool weight: 15kg, feed rate: 4m/min, rapid traverse: 10m/min. Machine dimensions X/Y/Z: approx. 5000mm/3700mm/3000mm, weight: approx. 16000kg, control: Philips CNC 232. An on-site inspection is possible. Hedpfxov Ubqne Aaisnr

Condition: used, Year of construction: 1971, Technical details: max. diameter of face turning: ca. Ø 900 mm revolution per minute: Spindel: 12,5 - 00 / 24 step U/min revolution per minute: Planscheibe: 8 - 190 / 12 step U/min feed steps: Planscheibe: 0,03 - 3 / step rapid traverse: alle Bewegungen: 2000 / 4000 m/min tool taper: der Arbeitsspindel: ISO 50 / SK50 table clamping surface:: 700 x 800 table rotating: 360° Grad drill table adjustment: quer: 800 mm max. table load: 1500 kg total power requirement: ca. 11,0 kW weight of the machine ca.: 7800 kg dimension machine xH: 3,0 x 2,0 x 2,6 m dimensions electric cabinet: 1800 x 400 x 1950 mm Ø of the face plate 420mm Movement of the face slide 180mm largest Ø during facing approx. 900mm Longitudinal movement of the column 700mm Vertical movement of the headstock 700mm Feed drive of column, headstock and clamping table: -for spindle operation=0,20 - 10 mm/rev with 34 speeds -for operation with faceplate= 0,16 - 16 mm/rev with speeds Equipment: optical fine measuring device/measuring system for axes X/Y/Z/B-axis hydraulics machine feet/footplates control panel with boom * Hodpeu Idtpefx Aaionr

Condition: used, Year of construction: 2001, travel distance X-axis: 2,300 mm, travel distance Y-axis: 2,300 mm, travel distance Z-axis: 1,000 mm, table width: 1,250 mm, table length: 2,500 mm, rotational speed (max.): 18,000 rpm, overall weight: 35,000 kg, CNC Siemens 840D universal head, HSK63 spindle maximum spindle speed 18,000 rpm Hedpfxjy H Av Ie Aaijnr 100-position tool changer table 2500x1250 mm travels 2300x2300x1000 mm chip conveyor tool set

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,250 mm, table load: 2,500 kg, rotational speed (max.): 3,000 rpm, overall weight: 10,000 kg, CNC Heidenhain TNC 530 Maximum spindle speed: 3000 rpm Automatic tool changer SA 50 Power: 22 kW Tool changer Travel: 2000 x 1000 x 1250 mm Chip conveyor Hnjdpjy Nnunsfx Aaijr Machine weight: 12,500 kg
