Cnc lathe

Okuma Multus

Condition: ready for operation (used), Year of construction: 2022, operating hours: 1,771 h, Control Unit Brand OKUMA Model OSP-P300SA Nedoxy Tiiepfx Ah Djli Main Drive Spindle speed range 38-3800 Tool taper HSK 63 Number of axis 4 Movement Y-Axis Movement 160 mm B-Axis Movement 0.001° Tools Slots in storage 40 Media Chip conveyor Yes Additional Equipment HI-Cut Pro high-speed control This 4-axis Okuma Multus B300 II Turn Mill Centre was manufactured in 2022. It features a control unit OKUMA OSP-P300SA, a main spindle with a three-jaw chuck diameter of 304mm, and a counter spindle with a C-axis. The milling spindle supports up to 6000 rpm with a torque of 65.7 Nm. If you are looking to get high-quality milling and turning capabilities, consider the Okuma Multus B300 II machine we have for sale. Contact us for more information. Application Types Milling

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Dear Sir or Madam the details of the Okuma Multus B400 with main and counter spindle tool magazine HSK 63 with 80 places 1500mm turning length main spindle passage 100mm CNC turning/milling center with CNC control OKUMA OSP P200L Enlarged main spindle Ø110mm Ø150/110mm, spindle nose size 11 Speed range 38-2800 1/min. Counter spindle as W-axis incl. hollow clamping device with Ø70mm bore in the draw tube helical interpolation also for thread milling Tool height correction in Y-axis for turning tools Extension kit "M "OSP P200L (Kit One-Touch IGF-M-D) Software multifunction tool for the use of special tools 80-station tool changer instead of 20 stations C-axis synchronization software for simultaneous control of both C-axes Increased speed 10,000 rpm for driven tools 20/14 kW, max. 85 Nm Interlit ISF 540/6670 slat-band chip conveyor with integrated coolant tank Interlit SPB4 gravity belt filter with 900 L clean tank Supply pump TH 90/690 FSI frequency-controlled pump for gravity belt filter SPB 4 Manual rinsing gun for attachment to additional coolant tank SPB4 SMW VNK 250/110 Power clamping cylinder for hollow sp. m. Bore Ø 110.5 mm Chuck Rota THW Plus 315-104 A11 Cylinder SMW VNK 250/110 Nodpfx Aotdg Evjh Deli 2-stage clamping pressure for power clamping device Call by program Door automation Multus B 400 Open/close via M command two doors, both open simultaneously Chuck Rota THW Plu 315-104 A8 Cylinder SMW VNK 225/95 mounted. Year of construction: 2011 Commissioning: June 2011 Warranty: A warranty for the used machine is excluded altogether. However, HAF Präzisionstechnik assures that defects, including hidden defects, are not known. Unknown defects can therefore not be excluded. Machine is under power and in very good condition. Viewing is possible by arrangement. We are also happy to process your acceptance parts in advance.

Condition: excellent (used), Year of construction: 2023, CNC Turning and Milling Center with Sub-Spindle, Y- and B-Axis Only 99 spindle hours Manufacturer: OKUMA Model: MULTUS U3000 1SW 1500 Year of manufacture: 12/2022 – Commissioned in 2023 Control: OKUMA OSP-P3000SA Operating hours, approx.: Spindle run time: 99 h, NC run time: 278 h (as of July 2025) Tooling system: Capto C6 TECHNICAL DATA: Turning diameter: 650 mm Turning length: approx. 1,500 mm Main spindle speed: 5,000 rpm Motor: 22kW, 427 Nm Number of tools: 80 Nledpfx Ahew U Ey Re Dji Spindle nose KK size 6, front bearing Ø 120 mm, spindle bore Ø 80 mm, 2-speed spindle, range shifting at full speed Sub-spindle: front bearing Ø 120 mm, spindle bore Ø 80 mm, 2-speed operation, range shifting at full speed, available on W-axis, spindle synchronization, programmable axial pressure for secure face contact, jaw cleaning with air C-axis 360°, positioning in 0.001° increments Y-axis travel +125 / -125 = 250 mm B-axis 240°, positioning in 0.001° increments Tool spindle (Okuma motor spindle) 22 kW / 120 Nm / 12,000 rpm SPECIAL FEATURES: • Enlarged main spindle KK size 8, front bearing Ø 140 mm, bore Ø 91 mm • Hollow clamping cylinder Ø 86 mm SMW VNK T2 200-86 with bore Ø 86 mm • Cylinder flange • Full-stroke cylinder SMW SIN-S 175 • Tooling system Capto C6 for H1-turret • External and through-tool spindle air supply for turning holders and rotating tools (switchable between air/emulsion) • Tool magazine with 80 positions • Coolant flushing via M-function, for main and sub-spindle • Hinge belt chip conveyor • Drum-type filter TMF 300 • Supply pump TC 160/740 pressure: 8 bar, TH428A690 pressure: 20 bar • Bar feeder interface • Programmable workpiece catcher • Robot-loader interface • Electric door automation • Automatic shutdown • In-process measurement, Renishaw probe • Y-axis measurement • Automatic zero-point shift in Z- and C-axis • Multifunction tool software for radially mounted indexable inserts • Control expansion kit KIT One-Touch IGF-N-D: – Dialog programming Advanced One-touch, automatic job planning – Circular arc tapping – Programmable tool life, call-up of sister tools by time in cut, quantity, correction addition, and tool wear EQUIPMENT: • Sub-spindle, turning length approx. 1,500 mm and H1 turret • Collision Avoidance System (CAS) • 19” color LCD TFT with multi-touch screen • Tool monitoring system • Tool measuring device • Handwheel • MacMan machine management • Part program memory 2GB • 2x USB 2.0 • Ethernet • Remote diagnostics prepared (service costs may apply) • Harmonic spindle speed oscillation via periodic speed variation • Tool height correction in Y for turning tools • Circular thread milling X/Z/Y/B (helical interpolation) including eccentric milling X/Y/C • Hi-Cut Pro high-speed control for rotating tools • 10 workpiece zero points • Coordinate transformation (shifting, rotation) • Electric spindle orientation +/- 0.1° New price: over €530,000 This used machine can be inspected under production conditions. All details are without guarantee – sale excluding any warranties or liability. Subject to prior sale.

Condition: excellent (used), Year of construction: 2014, operating hours: 3,000 h, functionality: fully functional, Year of manufacture: 2014, commissioning: 2017 OSP P300S control system Travel ranges: X1/X2-axis: 695/235 mm Y-axis: 300 mm Z1/Z2-axis: 1,600/1,461 mm B-axis: -30° to +210° Maximum turning diameter: 650 mm Big Bore main spindle 32/22 kW, spindle nose A2-11, max. speed: 3,000 rpm, max. torque: 955 Nm, bore diameter: 112 mm SMW VNK320-127 hollow clamping cylinder, through bore 127 mm 3-jaw chuck Forkardt 3QLK 315-88 Z11 Pressure reducing valve 8-70 bar Milling spindle 22 kW, max. speed: 12,000 rpm Tool magazine with 40 stations, HSK-A63 Lower turret with 12 tool stations Self-centering steady rest on lower turret Hydraulic steady rest SMW SLU-X-3.2-ZS, clamping range: 50-200 mm Programmable tailstock Renishaw RMP probe Drum chip conveyor TMF300 with 980 L tank 8 bar circulation pump 70 bar high-pressure pump Hinged belt chip conveyor Tool monitoring system for tool life and breakage Tool measuring device (with standard chuck) for safe setup MacMan machine management with integrated PDA (production data acquisition) Part program storage: 2 GB Max. length of individual part program: 2 MB 2x USB 2.0 ports Ethernet interface with browser and DNC-T1 for program transfer Harmonic speed oscillation via periodic speed variation Tool height offset in Y-axis for turning tools Circular thread milling X/Z/Y/B (helical interpolation) Including eccentric milling X/Y/C Hi-Cut Pro high-speed control for rotating tools 10 workpiece zero points (coordinate system selection function) Coordinate transformation Nlodpexy I T Asfx Ah Dsi

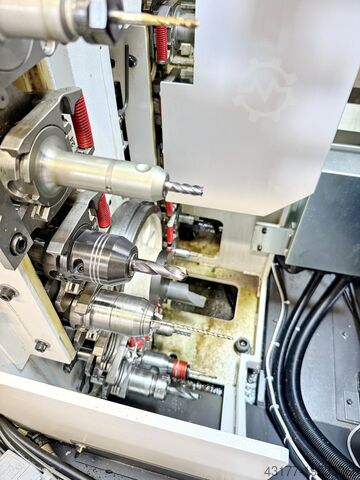

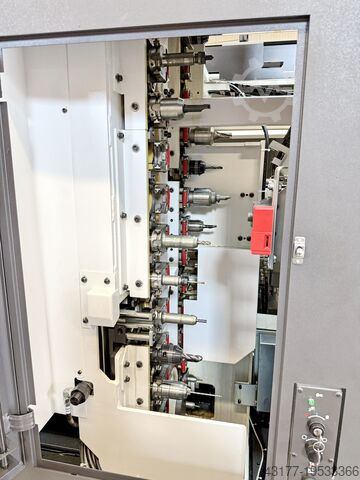

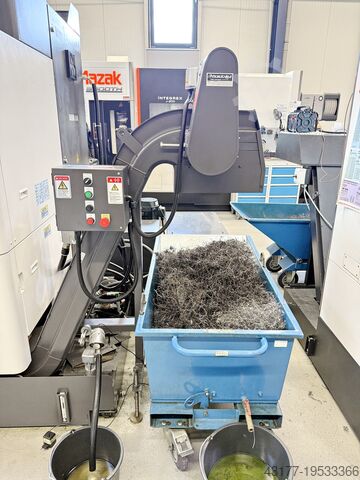

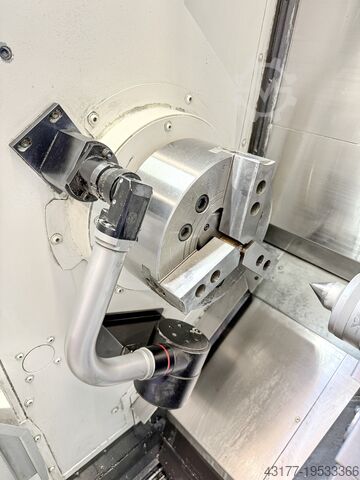

Condition: used, Year of construction: 2022, operating hours: 450 h, CNC Turning and Milling Center, used Well-maintained, lightly used machine. On 15.09.2025, a geometry protocol was conducted by OKUMA Germany, confirming the machine’s 'generally very good condition.' Manufacturer: OKUMA Model: MULTUS B250II – C - 750 Year of manufacture: 2022 Control: OSP-P300SA incl. OSP Suite Operating hours (as of 15.09.2025): Spindle hours (total): 485 h Total power-on hours: 3,340 h Working area: Turning length: 750 mm Z-axis travel: 800 mm X-axis travel: 500 mm Y-axis travel: 200 mm (+/- 100 mm) C-axis: 360,000° Njdpfx Aswydv Ash Deli B-axis: 225° W-axis (tailstock): 810 mm Tool spindle: 360,000° Main spindle: Max. speed: 5,000 rpm Power: 22 kW Milling spindle: Max. speed: 12,000 rpm Power: 12 kW Taper: HSK-A63 Equipment: - 40-position tool changer - 3-jaw Kitagawa chuck - High-pressure coolant system (IKZ) - Electronic handwheel - Right-side chip conveyor - Helical interpolation for thread milling + eccentric milling - Control extension for conversational programming + helical interpolation thread cutting INCLUDES approx. 40 x HSK-A63 tool holders (without tools) This is a well-maintained, regularly serviced machine from a renowned company. The machine has already been professionally dismantled by a specialist company (22.09.2025) and is therefore offered as free loaded.

Condition: excellent (used), functionality: fully functional, Machine type: CNC Turning-Milling Center Manufacturer: Okuma Model: Multus U4000 2SC 1500 Year of Commissioning: 2017 (as ex-stock machine) Control: OSP P300S Spindle Hours: approx. 3,000 Included: Various tools and chuck jaws Condition: Very good Delivery: Short lead time – as agreed Equipment and technical details: ▪ Enlarged main spindle KK size 11 Front bearing Ø 160 mm Speed range: 3,000 rpm Bore diameter: Ø 112 mm Motor power: 32 kW Torque: 955 Nm Nledpfx Aexw Thmsh Dei ▪ Hollow power chuck cylinder Ø 127mm, SMW VNK 320-127 with Ø 127 mm bore ▪ Pressure reducing valve, adjustable range 8-70 bar ▪ Tailstock ▪ Turning length approx. 1,500 mm ▪ H1 turret (1 station) ▪ Y-axis ▪ B-axis 0.001° ▪ 40-station tool magazine ▪ Additional lower turret with 12 stations ▪ Tool spindle 12,000 rpm ▪ Hinge belt chip conveyor: Heavy-duty chip conveyor with low-maintenance self-cleaning function ▪ Drum sump filter TMF300 with clean fluid tank 980 L ▪ Supply pump TC160/740, 8 bar ▪ Supply pump RSP 20/32-070-1-1-0, 70 bar ▪ Self-centering steady rest on the lower turret (not possible in combination with driven tools for lower turret) ▪ Door automation ▪ Robot interface Type E for connecting additional loading/unloading systems to single-spindle machines ▪ 3D machine model for simulation in CAM system Main drive (Okuma motor spindle): 22kW / 700 Nm / 50–4,200 rpm Spindle nose KK size 8 Front spindle bearing Ø 140 mm Spindle bore Ø 91 mm Speed range: 2 steps Range switching at full speed ▪ Lower turret: 12 stations ZB-axis with cylindrical roller guide XB-axis with slideways ▪ Real-time Collision Avoidance System (CAS) ▪ 19" color LCD TFT (1280x1024) with 3D color graphics as touch screen/panel with vertical display and adjustable tilt keyboard ▪ Second operating system Windows 7 for operation and data communication, open and freely usable for Windows 7 compatible applications ▪ Programmable tailstock on W-axis with hydraulic quill ▪ Tool magazine 40 stations ▪ C-axis 360°, 0.001° positioning ▪ Y-axis travel +150 mm / -150 mm = 300 mm ▪ B-axis 240°, 0.001° positioning ▪ Tool spindle (Okuma motor spindle): 22 kW / 120 Nm / 12,000 rpm ▪ Internal coolant supply for rotating tools, pump with max. 20 bar pressure Including bag filter, external cooling of tool spindle, pump with max. 3 bar pressure ▪ Tool system: HSK-A63 ▪ Tool monitoring system for tool life and breakage ▪ Tool measurement device (using standard chuck) for safe setup ▪ Machine management MacMan with integrated BDE (operating data acquisition) ▪ Part program memory 2 GB ▪ Max. length of individual part program: 2 MB ▪ 2 USB 2.0 ports ▪ Ethernet interface with browser and DNC-T1 for program transmission ▪ Harmonic speed oscillation via periodic speed change ▪ Tool height correction on Y-axis for turning tools ▪ Circular thread milling X/Z/Y/B (helical interpolation) Including eccentric milling X/Y/C ▪ Hi-Cut Pro high speed control for rotary tools ▪ 10 workpiece zero points (coordinate system selection) ▪ Coordinate conversion (shift, rotate) ▪ Electronic spindle orientation +/- 0.1° Optional: ▪ Transport organization and implementation ▪ Machine installation and setup ▪ Commissioning of the machine

Condition: like new (used), Year of construction: 2015, operating hours: 15,000 h, functionality: fully functional, Year of manufacture: 10-2015 Control: OSP P300S Maximum turning diameter: 650 mm Main spindle Drive power: 32/22 kW Max. spindle speed: 3,000 rpm Max. torque: 955 Nm Spindle nose: A2-11 Spindle bore: 112 mm Hollow clamping cylinder SMW-VNK225-95, bore 95 mm Sub spindle Drive power: 26/22 kW Max. spindle speed: 4,000 rpm Max. torque: 420 Nm Spindle nose: A2-8 Bearing inner diameter: 80 mm Solid clamping cylinder SMW SIN-S175 Milling spindle Drive power: 22/18.5 kW Max. spindle speed: 12,000 rpm B-axis: 0.001° Nljdpjxu Awlofx Ah Doi HSK-A63 Travel paths X1/X2-axis: 695/235 mm Y-axis: 300 mm Z1/Z2-axis: 1,600/1,524 mm B-axis: -30° to +210° Tool magazine / ATC 80 tool positions Max. tool diameter: 90/130 mm Max. tool length: 400 mm Lower turret 12-position tool turret Turning tool: 25 mm Boring bar: 40 mm Special equipment Software for limiting spindle speed to 3,500 rpm Software for multifunctional tools Software extension kit One Touch IGF-M-D Machining Navi M-g for milling operations Tool breakage detection – Renishaw TRS2 laser Machine-side preparation for high-pressure coolant 70 bar Factory-installed door automation Robot interface (Type “E”) Connection for oil mist extraction Separate coolant filtration system TMF300/980, drum-type swarf filter, clean tank 980L Chip conveyor Standard equipment Lower turret with 12 stations, direct mounting system "radial", with cylindrical roller guide on ZB-axis, sliding guide on XB-axis Collision avoidance system (CAS) in real time 19'' color LCD TFT with 3D color graphics as touch screen Second operating system Windows 7 for operation and open data communication, freely usable for Windows 7 compatible applications Tool monitoring system for service life and breakage+ Tool measuring device Machine management MacMan with integrated BDE Ethernet interface with browser and DNC-T1 for program transmission Prepared for remote diagnostics Harmonic spindle speed oscillation by periodic speed variation Tool height correction in Y-axis for rotating tools Circular thread milling X/Z/Y/B including eccentric milling X/Y/C Hi-Cut Pro high-speed control for rotary tools Coordinate transformation Electronic spindle orientation Dimensions and weight L/W/H: 4,480/3,082/3,030 mm, Weight: 18,000 kg

Condition: used, Year of construction: 2003, machine/vehicle number: 247078, Max. turning diameter: 630 mm Max. machinable diameter: 630 mm Max. distance between centers: 900 mm Travel: X-axis: 580 mm (+480 / –20 mm) Z-axis: 935 mm Y-axis: 160 mm (+80 / –80 mm) C-axis: 360° (in 0.001° increments) Nedjxtn Erjpfx Ah Deli B-axis: 225° (–30° / +195°; in 0.001° increments) Spindle speed: 50 – 5,000 rpm Tailstock type: NC-controlled, MT5 Spindle nose: A2-8 Spindle bore: Ø 80 mm Spindle bearing diameter: Ø 120 mm Turret type: H1-ATC Tool holder: HSK-A63 Number of stations: 1 Tool magazine capacity: 40 tools Tool size: 25 × 25 mm Shank diameter: Ø 32 mm Max. tool diameter: Ø 90 mm Max. tool length: 300 mm Max. tool weight: 8 kg Driven tool power (5 min / continuous): VAC 11 / 7.5 kW Milling spindle speed: 50 – 6,000 rpm Milling spindle torque (5 min / continuous): 65.7 / 44.8 Nm Feed rate: 0.001 – 1,000 mm/rev Rapid traverse: X-axis: 40 m/min Z-axis: 40 m/min Y-axis: 26 m/min C-axis: 200 rpm B-axis: 30 rpm Spindle motor power (30 min / continuous): OKUMA PREX 15 / 11 kW Spindle motor torque (10 / 20 min / continuous): 412 / 281 Nm Feed axis motor power: Z-axis: OKUMA BL 2.8 kW X-axis: OKUMA BL 3.5 kW Y-axis: OKUMA BL 2.9 kW W-axis (tailstock): OKUMA BL 2.9 kW Coolant pressure through milling spindle: 20 bar Coolant pump capacity: 0.8 kW Machine dimensions (L × W × H): 4,035 × 2,257 × 2,587 mm Machine weight: 10,000 kg Control system: OKUMA OSP-P300SA Display: 15" touchscreen (OSP Suite)

Condition: good (used), Year of construction: 2015, controller manufacturer: OKUMA, controller model: OSP P300S, number of spindles: 2, CONTROLS .. CNC controls OKUMA OSP P300S BASIC FUNCTIONS .. number of spindles: 2 .. number of turrets: 1 .. live positions: yes .. number of c-axes: 2 .. number of y-axes: 1 .. number of b-axes: 1 WORKING RANGE TURNING .. swing diameter (max): 650 mm .. turning diameter (max): 650 mm .. bar diameter (max): 112 mm .. worpiece length max.: 2100 mm MAIN SPINDLE .. spindle revolutions (min): 30 /min .. spindle revolutions (max): 3000 /min .. spindle torque: 700 Nm .. spindle diameter: 112 mm .. spindle positioning: 0.001 ° .. c-axis: yes COUNTER SPINDLE .. spindle revolutions (max): 3800 /min .. spindle positioning: 0.001 ° .. c-axis: yes X/Z SLIDE .. Z-axis travel: 2100 mm .. X-axis travel: 695 mm .. Y-axis travel: 300 mm .. rotating range B-axis up to: 240 ° .. traverse velocity Z (max): 1000 mm/min .. traverse velocity X (max): 1000 mm/min .. traverse velocity Y (max): 1000 mm/min .. tool fixture: Milling Spindle .. - rotation speeds (max): 12000 /min .. - drive power: 22 kW TOOL MAGAZINE .. number of positions: 40 .. tool length max.: 400 mm Nljdpfexm Rtlox Ah Dsi .. tool weight max.: 10 kg X/Z SLIDE .. Z-axis travel: 1584 mm .. X-axis travel: 235 mm .. - counter spindle: yes ELECTRICAL SPECIFICATIONS .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 6000 mm .. space requirements -front/back-: 3050 mm .. total height: 3030 mm .. total weight approx.: 19000 kg -Big Bore left spindle: Spindle holder A11 (Din 55026) Chuck is a SMW KNCS-N 325-104 - Tool holder (top) Milling spindle (Capto C6)

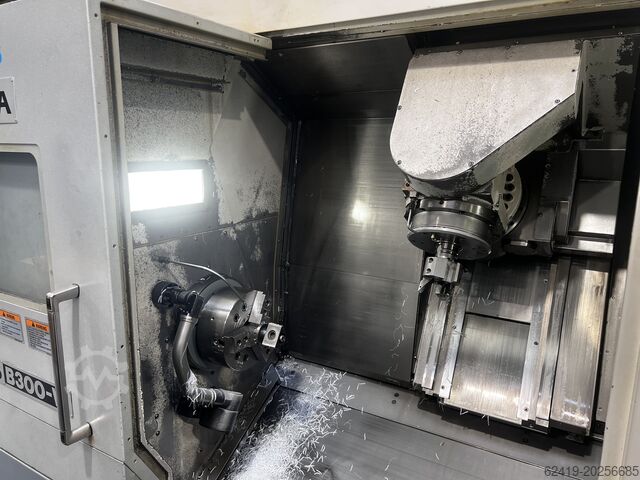

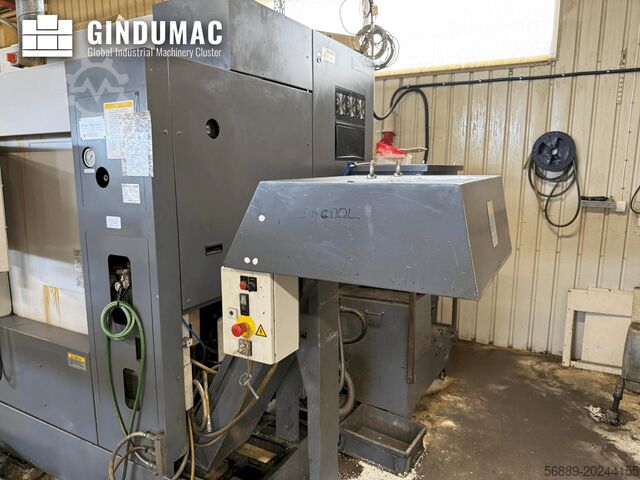

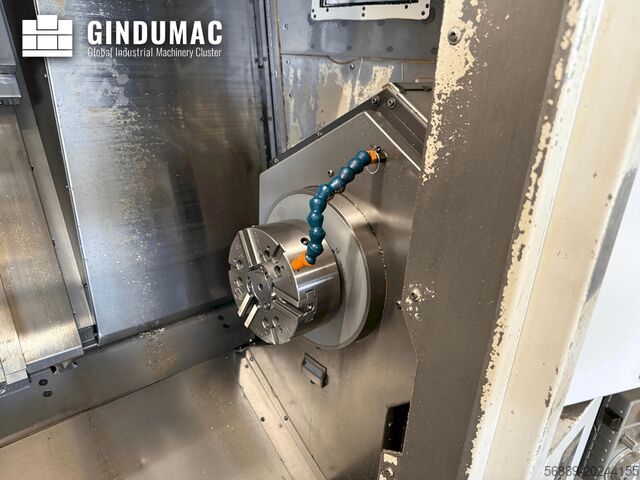

Condition: ready for operation (used), Year of construction: 2006, Control Unit Brand OKUMA Model OSP-P200L Main Drive Spindle speed range 38–5000 Spindle bore 100 mm Number of axis 5 Movement X-Axis Movement 580 mm Y-Axis Movement ±80 mm Z-Axis Movement 935 mm W-Axis Movement 1000 mm Workpiece Workpiece drm over bed 630 mm Nljdpoxl Hz Nefx Ah Dji This 5-axis Okuma Multus B300-W was manufactured in 2006. It features a robust turn-mill center with a swing over bed of 630 mm and a maximum turning diameter of 450 mm. Equipped with a bar feeder, toolsetter, and a tool magazine holding 40 tools, it ensures efficient operation. The control system is an advanced Okuma OSP-P200L. If you are looking to get high-quality turning capabilities consider the Okuma Multus B300-W machine we have for sale. Contact us for more information. Application Types Turning
