Sandblasting container

Oliver Fritz GmbH & Co. KG

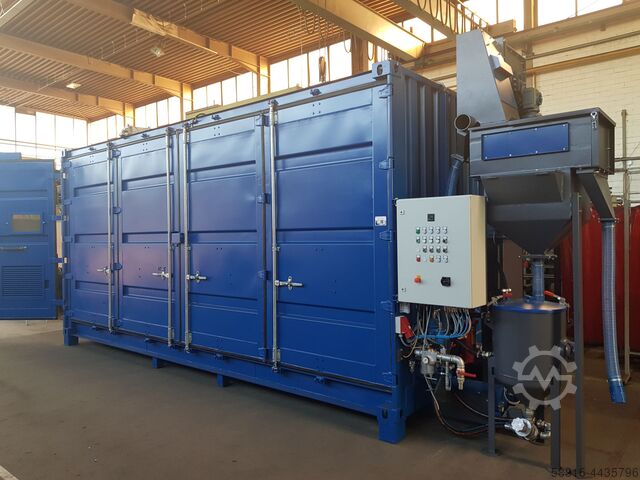

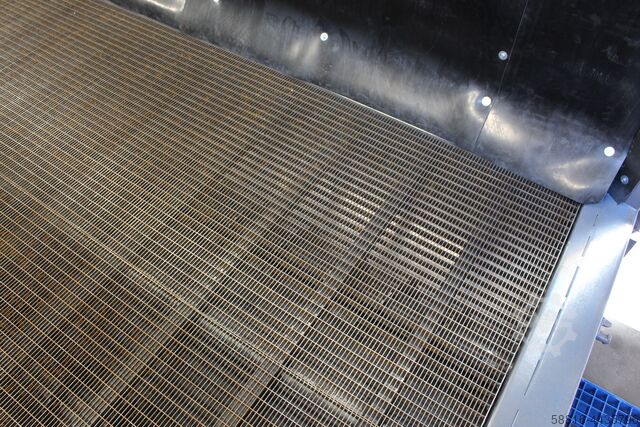

Condition: new, Year of construction: 2026, functionality: fully functional, Blasting container, 40 ft, with 9 m blasting chamber, screw conveyor floor (very low maintenance), blasting media preparation, and filtration system. Chamber dimensions (internal): approx. length = 8850 mm, height = 2485 mm, width = 2250 mm. Option: width including widening = 3240 mm. Transport height: approx. 3000 mm. Floor height: approx. 440 mm. Options: - Side container opening for 9 m and 3 m machine room Hedpezbztaefx Ai Tjw - Side extension for widening the blasting chamber - Crane roof opening (not possible with side opening) - Crane track, 500 kg and much more upon request.

Condition: excellent (used), functionality: fully functional, Sandblasting machine for stone slabs, width 200 cm (including dust extraction system) Hsdpoxxlwpofx Ai Tsw

Condition: new, Year of construction: 2026, Maintenance-friendly dedusting system specially developed for aggressive sandblasting dusts with pre-chamber impact separator, complete essentially consisting of: Hjdpjw Ivqmofx Ai Tow a) 1 cartridge dry filter, type PF 2.16.B250 for 30,000m³/h (other sizes available) each consisting of a stable, vacuum-tight 3 mm sheet steel housing, divided into the raw gas chamber with filter cartridges, filter pre-chamber impact separator and clean gas chamber with filter cleaning by means of compressed air, each with separate Easy Open maintenance door. Dust collection hopper with slotted valve or rotary valve for dust disposal using big bags. Solenoid valve control with differential pressure display for optimum adjustment of filter cartridge cleaning. Maintenance doors as swing doors Maintenance easy.

Condition: new, Year of construction: 2026, functionality: fully functional, pressure: 6 bar, warranty duration: 60 months, inner dimension width: 5,000 mm, inner dimension length: 10,000 mm, inner dimension height: 5,000 mm, filter area: 250 m², volume flow: 16 m³/h, Equipment: documentation/manual, lighting, Blasting house *up to 5 years warranty* for all blasting media made of a steel construction/isopanels with filter system, air circulation system, blasting media preparation, pressure blasting pot 200l automatically refilling, blasting hose with dead man's control, breathing air system, LED lighting, wall cladding 70shore 4mm fabric rubber, sweep pit bucket elevator. Hodpfx Aisu Ey Dlo Tew Blast media recirculation via sweeping pit with bucket elevator can be upgraded to cross conveyor screw with dosing hood across the entire width as sweeping pit or complete flat conveyor floor. Workpiece transport can be retrofitted: blasting carriage with track bed, crane system, crane roof opening, etc. For glass bead blasting for stainless steel, can be upgraded with the correct magnetic drawer or electrically driven magnetic drum separator. When blasting with 2 different blasting media (ferritic and mineral), upgradeable with magnetic drum separator, final magnetization stage and second air separator for blasting media separation, cleaning. Safety equipment: Emergency lighting battery, emergency stop switch in the cabin and outside, viewing window to the blasting chamber, door/door limit switch, dead man's control, pressure vessel quick venting Warranty up to 5 years on various components. 50 years of experience and more than 3000 systems in blasting machine construction

Condition: new, Year of construction: 2026, Shot blasting booth components: flat conveyor bed, transverse screw conveyor, bucket elevator, dust extraction system, screen, shot media hopper, shot blasting machine, filter system, fan, air ducts, lamella extraction hood, inlet box, electrical control system as a kit without assembly. Alternatively, the system components can also be assembled by our specialized technicians in your premises. Hodohc T Nljpfx Ai Tjw

Condition: new, Year of construction: 2026, Blasting trolley 5t battery-powered for blasting system - Load capacity: 5t - For rail installation Hedeyyxidjpfx Ai Tow - Battery drive - Remote control - Size: Length = 3000 mm, Width = 1000 mm - Surfaces for workpiece fixture mounts

Condition: new, Year of construction: 2025, functionality: fully functional, volume flow: 16,000 m³/h, power: 15 kW (20.39 HP), Mobile filtration unit 15 kW with 16,000 m³/h extraction capacity for aggressive dusts with pre-chamber separator. Assembly in approx. 10 minutes. Cartridge cleaning by compressed air pulse jet. 16 filter cartridges, 15.6 m², Bio Class M. Dust collection via big bag. The filter consists of 2 separate parts that are assembled using a forklift. Connection is made using 6 quick-release locks and 2 connector plugs. A duct or extraction hose can be connected at the rear of the filter. Hedpfjw Ivpvjx Ai Tew

Condition: new, Year of construction: 2025, Dedusting system with pre-chamber separator specially developed for aggressive sandblasting dusts, complete essentially consisting of: a) 1 cartridge dry filter, type PF 1.16.B250 15,000m³ (other sizes available) each consisting of a stable, vacuum-tight 3 mm sheet steel housing, divided into the raw gas compartment with filter cartridges and clean gas compartment with filter cleaning by means of compressed air, each with separate maintenance doors that are easy to open. Dust collection hopper with slotted valve for dust disposal using big bags. Solenoid valve control with differential pressure display for optimum adjustment of the 16 filter cartridges - cleaning. Technical data, approx. Type PF 1.16.B250 Hodpjw Ivrqjfx Ai Tjw W x D x H 1.6 x 1.9 x 4.2m Air flow rate 15000 cbm/h Filter cartridges 16x 15,6m² Filter area 249.6 m² Filter medium PE fiber fleece Residual dust content 99.9%

Condition: new, Year of construction: 2025, Dedusting system with pre-chamber separator specially developed for aggressive sandblasting dusts, complete essentially consisting of: a) 1 cartridge dry filter, type PF 1.16.B250 15,000m³ (other sizes available) each consisting of a stable, vacuum-tight 3 mm sheet steel housing, divided into the raw gas compartment with filter cartridges and clean gas compartment with filter cleaning by means of compressed air, each with separate maintenance doors that are easy to open. Dust collection hopper with slotted valve for dust disposal using big bags. Solenoid valve control with differential pressure display for optimum adjustment of the 16 filter cartridges - cleaning. Technical data, approx. Type PF 1.16.B250 W x D x H 1.6 x 1.9 x 4.2m Air flow rate 15000 cbm/h Filter cartridges 16x 15,6m² Hodpfjw Ivrwsx Ai Tjw Filter area 249.6 m² Filter medium PE fiber fleece Residual dust content 99.9%

Condition: new, Year of construction: 2026, Pressure blasting pot, 140L, mobile for construction site or stationary use. Fittings securely mounted under the handle. Very well suited for tough construction site applications. Includes: - 140L pressure vessel - Pre-filter - Weather protection cover - Water separator - Pressure regulator - Adjustment for conveying air (tank air volume and blast hose) - Blasting hose Ø25mm, 10m - Venturi blasting nozzle Ø8mm (air consumption at 6 bar approx: 3.57 m³/min) - Abrasive mixing valve Y-piece, rubber-coated for reduced wear - Breathing air filter with 10m air hose Hjdpoynr E Hefx Ai Tsw - Blasting helmet Safety features: - Dead man’s switch with control cable - Controlled quick venting Optional: - Larger handle with hose holder - Wet blasting head - Breathing air heater - Transport frame with drum and lid as attachment for multi-hour blasting without refilling - etc. Made in Germany

Condition: new, Year of construction: 2026, 200L mobile pressure-blasting vessel for construction sites or stationary use. Fittings are securely mounted under the handle. Very well suited for robust site applications. Comprising: - 200L pressure vessel - Pre-sieve - Weather protection lid - Water separator - Pressure regulator - Adjustable conveying air control (air quantity for vessel and blast hose) - Blast hose Ø25mm, 10m - Venturi blasting nozzle Ø8mm (air consumption at 6 bar approx: 3.57m³/min) - Abrasive metering valve, Y-piece rubber coated for reduced wear - Breathing air filter with 10m air hose Hedpoynr E Tefx Ai Tew - Blasting helmet Safety equipment: - Dead man's switch with control cable - Controlled quick venting Optional: - Larger handle with hose holder - Wet blasting head - Breathing air heater - Transport frame with bucket (Hobbock) and lid as an attachment for extended blasting without refilling - etc. Manufactured in Germany
