Blasting container with crane runway

Oliver Fritz GmbH & Co. KG

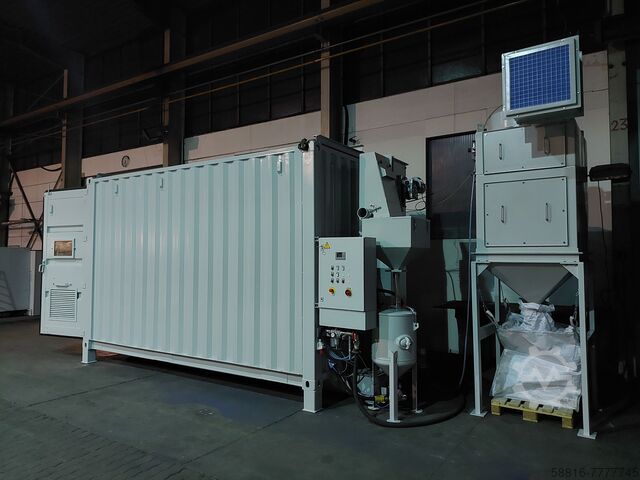

Condition: new, Year of construction: 2026, functionality: fully functional, Blasting container, 40 ft, with 9 m blasting chamber, screw conveyor floor (very low maintenance), blasting media preparation, and filtration system. Chamber dimensions (internal): approx. length = 8850 mm, height = 2485 mm, width = 2250 mm. Option: width including widening = 3240 mm. Transport height: approx. 3000 mm. Floor height: approx. 440 mm. Options: - Side container opening for 9 m and 3 m machine room - Side extension for widening the blasting chamber Fodpfozbztasx Accogc - Crane roof opening (not possible with side opening) - Crane track, 500 kg and much more upon request.

Condition: used, Year of construction: 2007, System: Mobile sludge dewatering system, mobile decanter/centrifuge Manufacturer: Hiller Model: Solid bowl screw centrifuge Type: DP51 Mach. no.: H3991 Year of manufacture: 2007 Maximum drum speed: 3400 l/min Drum inner diameter: approx. 505 mm Drum material: ST52.0 Fgedovz Dnpepfx Accsc Drum wall thickness: 13.0 mm Other: Steel exchange case with reinforced base, Accessories: Pump for sludge inlet, flocculant suction pump, flocculant solution pump Flocculant station: 2 chamber system for liquid polymers with agitator, adjustable Double shaft paddle mixer: galvanized steel Total weight: approx. 4200 kg Purchase and rental possible.

Condition: new, Year of construction: 2026, Maintenance-friendly dedusting system specially developed for aggressive sandblasting dusts with pre-chamber impact separator, complete essentially consisting of: a) 1 cartridge dry filter, type PF 2.16.B250 for 30,000m³/h (other sizes available) each consisting of a stable, vacuum-tight 3 mm sheet steel housing, divided into the raw gas chamber with filter cartridges, filter pre-chamber impact separator and clean gas chamber with filter cleaning by means of compressed air, each with separate Easy Open maintenance door. Dust collection hopper with slotted valve or rotary valve for dust disposal using big bags. Fsdow Ivqmjpfx Accogc Solenoid valve control with differential pressure display for optimum adjustment of filter cartridge cleaning. Maintenance doors as swing doors Maintenance easy.

Condition: new, Year of construction: 2026, functionality: fully functional, pressure: 6 bar, warranty duration: 60 months, inner dimension width: 5,000 mm, inner dimension length: 10,000 mm, inner dimension height: 5,000 mm, filter area: 250 m², volume flow: 16 m³/h, Equipment: documentation/manual, lighting, Blasting house *up to 5 years warranty* for all blasting media made of a steel construction/isopanels with filter system, air circulation system, blasting media preparation, pressure blasting pot 200l automatically refilling, blasting hose with dead man's control, breathing air system, LED lighting, wall cladding 70shore 4mm fabric rubber, sweep pit bucket elevator. Blast media recirculation via sweeping pit with bucket elevator can be upgraded to cross conveyor screw with dosing hood across the entire width as sweeping pit or complete flat conveyor floor. Workpiece transport can be retrofitted: blasting carriage with track bed, crane system, crane roof opening, etc. For glass bead blasting for stainless steel, can be upgraded with the correct magnetic drawer or electrically driven magnetic drum separator. Fjdpfx Acsu Ey Dlocsgc When blasting with 2 different blasting media (ferritic and mineral), upgradeable with magnetic drum separator, final magnetization stage and second air separator for blasting media separation, cleaning. Safety equipment: Emergency lighting battery, emergency stop switch in the cabin and outside, viewing window to the blasting chamber, door/door limit switch, dead man's control, pressure vessel quick venting Warranty up to 5 years on various components. 50 years of experience and more than 3000 systems in blasting machine construction

Condition: used, Plant: Mobile sludge dewatering plant, decanter / centrifuge mobile Manufacturer: Hiller Model: Solid bowl screw centrifuge Type: DP45-422 Fgjdpfjppddyex Accsc Machine No.: H3480 Year of construction: 2006 Maximum permissible: Drum speed 3800 I/min Inner diameter: Drum 450 mm Drum material: H2/St52 Electric motor: yes Other: steel exchange case with reinforced bottom, accessories: pump for sludge inlet, flocculant suction pump, flocculant release pump Flocculant station 2 chamber system for liquid polymers with agitator , adjustable Double shaft paddle mixer galvanized steel Total mass : approx. 3200 kg Purchase and rent : possible.

Condition: new, Year of construction: 2026, Blast house components. Flat conveyor floor, cross conveyor screw, bucket elevator, air sifting, sieve, blasting medium hopper, blasting unit, filter system, fan, air ducts, lamella suction wall, blow box, electrical control as a kit without assembly. Alternatively, the plant components can also be assembled by our specialist fitters on your premises. Fgjdpfxjhc T Nlo Accoc

Condition: new, Year of construction: 2025, Abrasive Media Preparation 1x Sweeping Pit 1x Bucket Elevator 1x Air Separator 1x Electric Vibrating Sieve 1x Abrasive Media Hopper 1x 200l Pressure Blast Unit 1x Blast Hose, Blast Nozzle, Deadman Switch, Control Line 1x Control Cabinet Optional Accessories: - Cross Conveyor Screw over the entire blast room width (also serves as additional buffer storage for several hours of blasting) - Extension for 2 abrasive media types, ferritic and mineral - Drum Magnetic Separator - Final Demagnetizing Stage - Magnetic Drawer Fodpfx Acsw Ivvcocogc

Condition: excellent (used), Year of construction: 2018, operating hours: 3,200 h, functionality: fully functional, repeat accuracy: 0.01 mm, travel distance X-axis: 3,002 mm, travel distance Y-axis: 1,502 mm, travel distance Z-axis: 300 mm, positioning accuracy: 0.02 mm, workpiece weight (max.): 4,500 kg, type of input current: three-phase, input voltage: 400 V, sheet thickness aluminum (max.): 300 mm, operating pressure: 4,000 bar, cutting speed: 8,000 mm/min, power of the servo motor: 2,000 W, table load: 4,500 kg, compressed air connection: 6 bar, product height (max.): 300 mm, power: 37 kW (50.31 HP), Equipment: safety light barrier, Machine: STM 1530 PremiumCut 3D 12° angle compensation Pump: BFT ECOTRON® 40.37 (37 kW, 4000 bar) Great condition, fully functional, purchased new in October 2018. Machine is located in EU, Zagreb, Croatia, possible cutting test at our place. Only 3200 pump operating hours, automatic pressure control, automatic abrasive control, cutting angle compensation, possible upgrade with turning machine and drilling unit for piercing sensitive materials, durable machine frame (aluminium alloy + stainless steel), equipped with high quality parts. 1. Waterjet cutting system STM 1530 PremiumCut 3D 12° angle compensation Robust CNC milled absolutely rust-proof construction in aluminium and stainless steel High-precision robust rack and pinion drive with helically toothed racks Premium guide X & Y axis with Bosch Rexroth™ with high-precision ball-bearing carriage and stainless steel balls Threefold dirt scraper package Working area accessible from 3 sides for simplified loading and unloading Underwater cutting is possible CNC milled workpiece holder with heavy-duty frame for parts with weights of up to 1,000 kg/m² The scope of supply contains the required lubricants and special tools for servicing and maintenance 1.1 CNC operating range X axis: ..... 1,502 mm Y axis: ..... 3,002 mm (bridge) Z axis clearance: ..... 300 mm A axis: ..... 12 degrees B axis: ..... +/- ∞ 1.2 Precision and feed Positioning precision: ..... ± 0.02 mm (per metre at 20°C) Repeatable precision: ..... ± 0.01 mm (per metre at 20°C) Max. feed: ..... 60 m/min A axis feed: ..... 360 deg/s B axis feed: ..... 360 deg/s 1.3 Dimensions & weight Length: ..... approx. 3,750 mm (incl. high-pressure tubing) Width: ..... approx. 4,700 mm Height: ..... approx. 3,400 mm (incl. high-pressure tubing) Weight: ..... 1,500 kg (without water) 2. High pressure pump ECOTRON® 40.37 420 MPa max. design pressure 400 MPa max. permissible operating pressure Fodpfsvla U Tjx Accsgc 380 MPa max. continuous operating pressure 3.8 l/min max. flow rate 37 kW driving power 2.1 Technical details Drive hydraulics with axial piston pump and hydraulic pressure/flow rate control Gear pump for separate cooler/filter circuit Pressure intensifier with drive cylinder and high pressure cylinder 2.49 litre pulsation damper according to Pressure Equipment Directive 97/23/EC Connection for external emergency stop circuit Electrical and electronic components fitted in control cabinet Hydraulic and high pressure components mounted on a common base frame Compact design, all tubing fitted, all pipework fitted and wired 2.2 Options Included Automatic pressure adjustment from 50 - 400 MPa Cooling via oil/water heat exchanger Pressure relief valve with pneumatic control Check valve on the feed water inlet Double filter element for pre-filtration of the feed water Sound insulation casing Special tools for fitting the high pressure seals incl. torque wrench Water stop check valve Included: machine, high pressure pump, control unit (PC in electronic box), abrasive, spare parts

Condition: new, Year of construction: 2025, Blast Container High Cube Basic with Sweeping Floor Shovel Hopper for approx. 4 pressure vessel fillings + extra blasting vessel filling, enabling extended blasting time without refilling. Fsdpfx Ajw Ivk Teccjgc Type SC.20FHC.5800 Basic Standard Equipment, ready for operation (just add abrasive and connect power and compressed air): 1x Control cabinet with emergency stop, Siemens Logo controller 1x Pressure blasting vessel 1x Pressure regulator and water separator 1x Blasting hose DN 25 with 8mm blasting nozzle 1x Remote control with dead man's switch 1x Abrasive inlet box/hopper 1x Abrasive media sieve + collection container for coarse particles 1x Airwash separator for blast dust extraction (dust reduction during blasting) 1x Filter unit with pre-chamber separator 1x Suction wall with louvre-type impact separator 1x 4mm rubber wall lining with fabric insert 1x Tread plate floor 3/5 1x LED lighting 1x Emergency lighting, door-end switch, emergency stop 1x Breathing air filter 1x Blasting helmet 1x Blasting gloves 1x Coverall/suit Options: - Side Door Open: blast container can be fully opened from the side for easy forklift loading - Container widening - Container extension - Crane roof hatch - 500kg crane runway - C-profile rail for powder coating - Blasting trolley - Filter with big bag - HEPA secondary filter for hazardous dust, e.g. when blasting stainless steel - Stainless steel tread plate floor for stainless steel blasting - Aluminum tread plate floor and much more upon request!

Condition: new, Year of construction: 2025, functionality: fully functional, pressure: 6 bar, warranty duration: 60 months, inner dimension width: 5,000 mm, inner dimension length: 15,000 mm, inner dimension height: 5,000 mm, filter area: 352 m², volume flow: 22 m³/h, Equipment: documentation/manual, lighting, Blasting house *up to 5 years warranty* for all blasting media made of a steel construction/isopanels with filter system, air circulation system, blasting media preparation, pressure blasting pot 200l automatically refilling, blasting hose with dead man's control, breathing air system, LED lighting, wall cladding 70shore 4mm fabric rubber, sweep pit bucket elevator. Blast media recirculation via sweeping pit with bucket elevator can be upgraded to cross conveyor screw with dosing hood across the entire width as sweeping pit or complete flat conveyor floor. Workpiece transport can be retrofitted: blasting carriage with track bed, crane system, crane roof opening, etc. For glass bead blasting for stainless steel, can be upgraded with the correct magnetic drawer or electrically driven magnetic drum separator. When blasting with 2 different blasting media (ferritic and mineral), upgradeable with magnetic drum separator, final magnetization stage and second air separator for blasting media separation, cleaning. Safety equipment: Emergency lighting battery, emergency stop switch in the cabin and outside, viewing window to the blasting chamber, door/door limit switch, dead man's control, pressure vessel quick venting Fodpfx Asu Hy Tpjccegc Warranty up to 5 years on various components. 50 years of experience and more than 3000 systems in blasting machine construction

Condition: good (used), Year of construction: 1995, shredding by 3 HARDOX-coils (spirals) diameter x length: approx. 500 x 1.700 mm Fjdpfx Ael I Dx Noccsgc opening: approx. 1.100 x 1.700 mm new base frame with steel construction new feed-hopper 8 m³ new control cabinet incl. 7 unused spare coils

Condition: new, Year of construction: 2026, Blasting trolley 5t battery-powered for blasting system - Load capacity: 5t - For rail installation - Battery drive - Remote control - Size: Length = 3000 mm, Width = 1000 mm - Surfaces for workpiece fixture mounts Fgsdpfxjyyxide Accoc

Condition: new, Year of construction: 2026, Blast carriage 10t for blasting system with pneumatic drive. - Pneumatic drive for 10t load capacity - Load capacity: 10 t Fgedpfx Acjyyxfrscsc - Dimensions: L=2000mm W=2000mm H=500mm - For rail system - With mounting surfaces for workpiece holders - Rotary table as an option

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, inner diameter: 260 mm, wall thickness: 10 mm, overall weight: 870 kg, year of last overhaul: 2025, operating temperature: 100 °C, Decanter centrifuge, 5500 RPM, 1.5 m³/h, 11 kW, refurbished, bearings replaced, liquid discharge under pressure, in excellent working condition, documentation available. WESTFALIA Decanter CA 22.00.00 (green one), in excellent condition, excellent working order. Fjdpoxlpwtjfx Accogc Live video call demonstration or personal inspection possible.

Condition: new, Year of construction: 2026, functionality: fully functional, Manual blasting carriage for blasting plant, 5t loading capacity - L = 3000mm W = 1500mm H = 500mm Fgedpfx Acjyyxa Njcec - Load capacity: 5t - Carriage with flanged wheels for rails in the blasting chamber - Upright profiles to allow blasting media to drain off - Tow eyes for forklift - Rotary table available as an option
