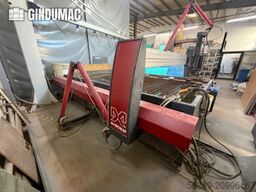

OMAX MAXIEM 2030 30 HP AJet

OMAX MAXIEM 2030 30 HP AJet

This 3-axis OMAX MAXIEM 2030 30 HP AJet was manufactured in 2018, featuring a CNC Waterjet Cutting System with a 5-axis cutting capability. It includes a robust 30 HP pump, MAXJET® 5i cutting head, and a cutting envelope of 3,061 mm by 2,019 mm. Ideal for high-precision applications, it supports a maximum material load of 1,465 kg/m². Consider the opportunity to buy this OMAX MAXIEM 2030 waterjet cutting machine. Contact us for more information about this machine.

• Work envelope / cutting table:
• Cutting X-axis travel: 10’ 0’’ (3,061 mm)
• Cutting Y-axis travel: 6’ 7’’ (2,019 mm)
• X-axis table size: 12’ 2’’ (3,708 mm)
• Y-axis table size: 7’ 0’’ (2,134 mm)
• Material support slats: 4’’ × 14 ga galvanized steel (102 mm × 2 mm)
• Performance:
• Traverse speed: 500 in/min (12,700 mm/min)
• Repeatability: ±0.001’’ (±0.025 mm)
• Accuracy: ±0.003’’ (±0.076 mm)
• Pump & cutting head:
Iedpfx Ahjya Ecijuetb
• Pump power: 30 HP
• Cutting head: MAXJET 5i with A-Jet (5-axis cutting)
• Nozzle life: Diamond orifice, approx. 500 hours (guaranteed)
• Dimensions & weight:
• Operating weight: 20,500 lb (9,299 kg)
• Overall height: 8’ 10’’ (2,692 mm)
• Footprint (without controller): 14’ 1’’ × 14’ 1’’ (4,293 × 4,293 mm)
• Slat bed:
• Standard configuration: 34 slats
• Maximum slat configuration (optional): 117 slats
• Maximum material load: 300 lb/ft² (1,465 kg/m²)
• Standard features:
• Intelli-TRAX abrasive-jet linear drive system (1 micron resolution)
• Brushless servo motors and drives
• Abrasive feed system (15 lb capacity)
• Rugged catcher tank (300 lb/ft² load capacity)
• Industrial steel protection covers on X-axis
• Modular bridge control and power centers
• Low-noise pump and system design
• Windows-based control system
• IntelliMAX Standard Software (2 seats)
• Mobile control station with widescreen display
• No special foundation required
• Ergonomic full table access
• Made in the USA
