Die-sinking edmOPS INGERSOLL
Gantry Eagle 1200 EDM
Die-sinking edm
OPS INGERSOLL
Gantry Eagle 1200 EDM
Year of construction
2017
Condition
Used
Location
Su Zhou Shi

Show images
Show map
Machine data
- Machine type:
- Die-sinking edm
- Manufacturer:
- OPS INGERSOLL
- Model:
- Gantry Eagle 1200 EDM
- Machine number:
- 576409
- Year of construction:
- 2017
- Condition:
- used
- Functionality:
- fully functional
Price & Location
- Location:
- No.58 Wangshan South Road, 215300 Kunshan, Jiangsu, CN
Call
Details about the offer
- Listing ID:
- A194-24316
- Reference number:
- S20250615
- Update:
- 24.06.2025
Description

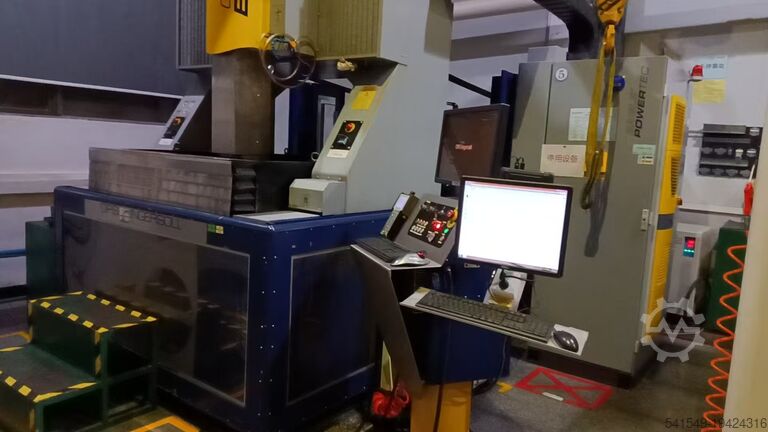

OPS INGERSOLL GANTRY EAGLE 1200
Year of construction 2017

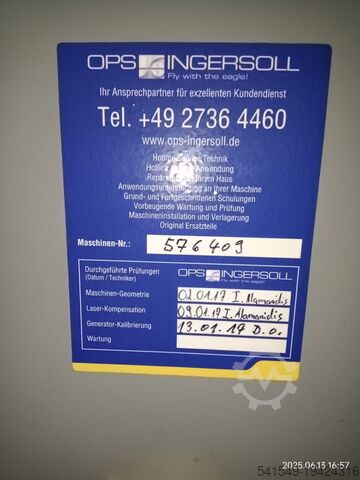

Machine No. 576409
Standard Specifications
1.01 Eagle Powertec PC/NC
* Multiprog Powertec technology programming on PC/NC and as CD (external programming place)
* Powertec Easy Burn high-speed programming
* Powertec Handheld - multi-functional hand control device
Fjdowu Hb Repfx Afpsgh
* Manual eroding with Powertec Handheld
* Interfaces Ethernet and USB
* Multi-control light (remote maintenance via Internet), free of charge during the guarantee period
1.02 Eagle Powertec fine finish generator PT60
1.03 Eagle Power Jump with 18m/min interval speed in the Z-axis
1.04 Pressure flushing programmable, suction connection manually
1.05 Filter unit, 32m² paper filter
1.06 Compressor cooler
1.07 CO2 fire-extinguishing system
1.08 Color: Structural lacquer in cobalt-blue (RAL5013), grey (ral 7045), yellow (RAL1021)
1.09 Machine shoes
Feature Specification
XYZ travels 1 000 × 1 500 × 700 mm
Tank size 1 270 × 1 770 × 680 mm
Table size 1140 ×1640mm
Table load capacity 7 500 kg
Max head load 300 kg
Rapid traverse 5 000 mm/min
High-speed Z jump 18 000 mm/min (18 m/min)
CNC Control Dual 32-bit PC, touchscreen, USB/Ethernet
Generator (PT60) Adaptive current, 60 A
Dielectric volume & filter 2 400 L, 32 m² filter
Machine size & weight 2 950 × 3 950 × 3 440 mm, ~12 000 kg
Year of construction 2017
Machine No. 576409
Standard Specifications
1.01 Eagle Powertec PC/NC
* Multiprog Powertec technology programming on PC/NC and as CD (external programming place)
* Powertec Easy Burn high-speed programming
* Powertec Handheld - multi-functional hand control device
Fjdowu Hb Repfx Afpsgh
* Manual eroding with Powertec Handheld
* Interfaces Ethernet and USB
* Multi-control light (remote maintenance via Internet), free of charge during the guarantee period
1.02 Eagle Powertec fine finish generator PT60
1.03 Eagle Power Jump with 18m/min interval speed in the Z-axis
1.04 Pressure flushing programmable, suction connection manually
1.05 Filter unit, 32m² paper filter
1.06 Compressor cooler
1.07 CO2 fire-extinguishing system
1.08 Color: Structural lacquer in cobalt-blue (RAL5013), grey (ral 7045), yellow (RAL1021)
1.09 Machine shoes
Feature Specification
XYZ travels 1 000 × 1 500 × 700 mm
Tank size 1 270 × 1 770 × 680 mm
Table size 1140 ×1640mm
Table load capacity 7 500 kg
Max head load 300 kg
Rapid traverse 5 000 mm/min
High-speed Z jump 18 000 mm/min (18 m/min)
CNC Control Dual 32-bit PC, touchscreen, USB/Ethernet
Generator (PT60) Adaptive current, 60 A
Dielectric volume & filter 2 400 L, 32 m² filter
Machine size & weight 2 950 × 3 950 × 3 440 mm, ~12 000 kg
