Zinc spark erosion

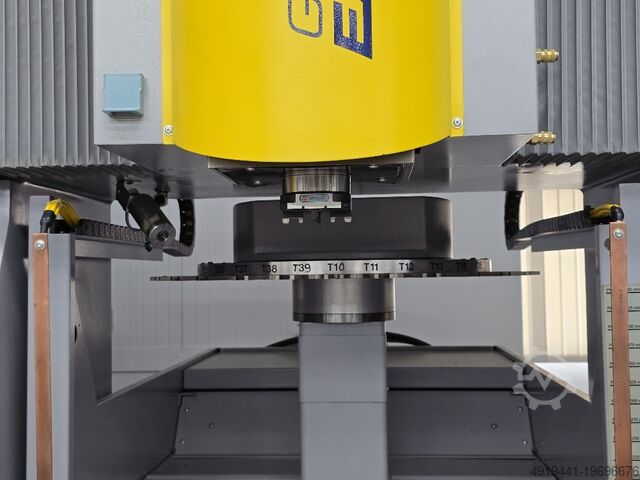

OPS INGERSOLL Gantry Eagle 800

Condition: refurbished (used), Year of construction: 2008, functionality: fully functional, Completely overhauled OPS Ingersoll Gantry 800 Eagle die-sinking EDM machine – mechanically and visually in top condition The machine has been thoroughly and professionally overhauled in our facility and is in excellent condition both technically and visually. During the overhaul, more than 70% of the machine was disassembled. All relevant wear parts were carefully inspected and replaced as necessary, including but not limited to ball rollers and drive spindles. A comprehensive geometric measurement, alignment, and additional verification using a laser measurement system were carried out afterwards. The machine bed as well as the entire base were thoroughly cleaned. All pumps were disassembled, cleaned, and overhauled. All hoses, including hydraulic and pneumatic hoses, have been completely renewed. Additionally, the machine has been completely repainted and is also visually in an extremely well-maintained condition. The generator and control system have been cleaned and technically checked. The generator’s climate control unit has also been cleaned to ensure reliable cooling and stable operation. Finally, the machine underwent extensive EDM testing in accordance with OPS Ingersoll’s quality and inspection standards. The machine is immediately ready for operation and ideally suited for reliable production use. Technical data: - Manufacturer: Ingersoll (OPS Ingersoll) - Type: Die-sinking EDM machine - Model: OPS INGERSOLL GANTRY EAGLE 800 - Year of manufacture: 2008 - Control system: EAGLE Powertec PC/NC 2060 - MultiProg Powertec technology programming on PC/NC - Powertec Easy Burn fast programming - Powertec Handheld – multifunctional manual control unit - Manual eroding with Powertec Handheld - High Speed Jump max. 18 m/min - Generator output: 60 Amperes, EAGLE Powertec - Travel distances (X, Y, Z): 550 x 850 x 450 mm - Electrode changer: 20-position pick-up carousel changer - Work tank (W x D x H): 800 x 1100 x 480 mm Bjdpfxoykn Nge Ah Iold - Work table (W x D): 760 x 1000 mm - Table load capacity: 2,000 kg Accessories: - CO2 fire extinguishing system - Integrated cartridge filter system Special features: - Linear measuring system on all axes (Z-axis standard on series model)

Condition: refurbished (used), Year of construction: 2013, travel distance X-axis: 550 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 2,000 kg, table width: 760 mm, distance table to quill: 585 mm, table length: 1,000 mm, workpiece length (max.): 1,095 mm, workpiece width (max.): 795 mm, workpiece height (max.): 480 mm, overall weight: 6,800 kg, year of last overhaul: 2025, table load: 2,000 kg, rapid traverse Z-axis: 18 m/min, Equipment: documentation/manual, OPS INGERSOLL GANTRY EAGLE 800 Overhauled Year of construction 2013 EAGLE Powertec PC/NC control 3060 22" screen with touchscreen operation MultiProg Powertec technology programming on PC/NC Powertec Easy Burn quick programming Powertec Handheld multifunctional manual control unit Manual eroding with Powertec Handheld EAGLE Powertec - PT 60 fine finishing generator, 60 amps High Speed Jump max. 18,000 mm / min. Travel (X, Y, Z) 550 x 850 x 450 mm Distance table / electrode chuck min. 135 mm / max. 585 mm Electrode changer 20-fold pick-up disk magazine Work bowl (W x D x H) 800 x 1,100 x 480 mm Work table (W x D) 760 x 1,000 mm Load capacity 2,000 kg Top load 200 kg Machine dimensions W x D x H 1,436 x 2,940 x 2,730 mm Integrated cartridge filter system Accessories: Bedpfx Ahjyi Uaie Isld CO2 fire extinguishing system Electrode clamping system EROWA ITS , Hirschmann or System 3R (customer request) ECOTEC energy-saving function Standby mode for Gantry Eagle Multiprog Powertec technology programming on CD for external programming station

Year of construction: 2008, condition: used, machine/vehicle number: 575415, Weight: 6,700 kg, various peripherals, control unit, 1 handling system OPS INGERSOLL IMC 5, year of manufacture: 2008, serial no.: 583080, weight: 1,800 kg, 1 chiller unit M.T.A. TAE EVO M10, year of manufacture: 2012, 1 fire extinguishing system KRAFT & BAUER FB 703 Bljdpeyidk Iefx Ah Ied

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 1,010 mm, travel distance Y-axis: 1,510 mm, travel distance Z-axis: 700 mm, workpiece weight (max.): 2,000 kg, OPS Ingersoll Gantry 800 Eagle Year of manufacture: 2014, overhauled in 2024 Control: Eagle powertec 3036 Bjdpfx Ajw Hdbfeh Ield Generator: Eagle Powertec PT 60 Travel paths: 1010x1510x700mm Clamping table: 760x1000mm Load capacity: 2000kg Max. dielectric height: 450mm 30-position EROWA tool changer Integrated C-axis 0.001° Max. head load: 200kg High Speed Jump max. 18m/min interval on Z axis Multi Prog Powertes - technology programming Powertec handheld unit Manual eroding with Powertec Dielectric cooler
