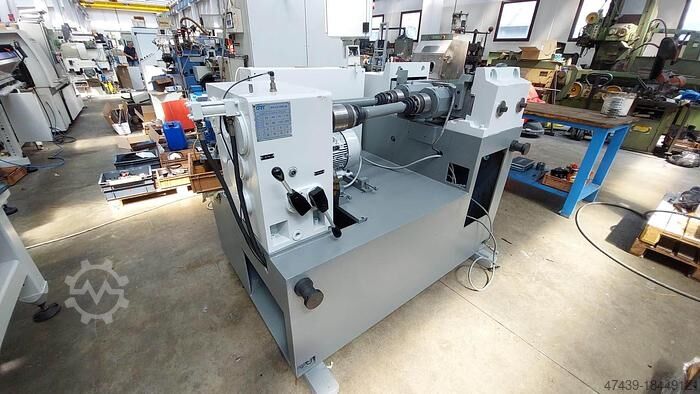

Overhauled ORT RP18 B PLC

ORT RP18 B PLC

Condition: used, Thread Rolling Machine, Cold Rolling Machine, Thread Rolling Machine, Profile Rolling Machine Manufacturer: PEE-WEE Model: UPW 24 Serial No.: P07 Year of manufacture: 2007 Maximum rolling force: 24 tons Maximum tool diameter: 270 mm Roll spindle diameter: 69.85 mm Dledpfxouz If No Admsa Tool bore diameter: 70 mm (nominal diameter) Maximum tool/reception length: 180 mm Maximum workpiece diameter: 50 mm Hydraulic motor power: 3 kW Roll drive motor power: approx. 5.5 kW Electrical connection: 400 Volt, 50 Hz, 10 kW - Pivotable roll spindle for through-feed thread rolling - Roll spindle speed adjustable in 4 steps via gearbox shift - Hydraulic unit integrated in the machine base - Operating manual with electrical schematic Space requirements (L x W x H): 2,000 x 1,450 x 1,900 mm Weight: approx. 3 tons Very good condition Plunge Rolling: The thread rolling tools, having the same pitch as the workpiece, form the thread by penetrating the workpiece up to the nominal diameter. The maximum thread length is limited to the width of the rolling dies. Through-feed Rolling: Used when the thread length is greater than the width of the rolling dies. Through-feed tools are divided into three sections – entry, calibration, and exit. Knurling rolls have no pitch and are swiveled at the lead angle corresponding to that of the profile to be rolled. Lead angle rolls differ from knurling rolls by having a pitch in the profile. The sum of the lead angle and swivel angle results in the effective lead angle in the workpiece.

Condition: used, ORT RP18B overhauled Dlodpfx Asuua H Rjdmoa

Condition: new, Year of construction: 2025, functionality: fully functional, thread length: 12,000 mm, overall weight: 5,000 kg, workpiece diameter (max.): 90 mm, spindle diameter: 80 mm, type of input current: three-phase, roll diameter: 250 mm, spindle speed (max.): 50 rpm, spindle speed (min.): 20 rpm, total height: 2,000 mm, total length: 2,400 mm, total width: 2,000 mm, 60 ton hydraulic thread rolling machine with swivel spindles for infeed and thru-feed rolling Djdpjv Rb Apsfx Admola Download PDF file for photographs

Condition: used, TECHNICAL DETAILS - Min./max. diameter of workpieces : 2 / 18 [mm] - Max. thread : 2 [mm] Dledpoxbt Izefx Admsa - Max. plunge length : 40 [mm] - Power : 6 [t] - Min./max. diameters of the rollers : 70 / 100 [mm] - Standard cam travel : 5 [mm] WEIGHT & DIMENSIONS - Machine floor space : 775 x 555 [mm] - Machine height : 1100 [mm] - Machine weight : 650 [kg]
