Multi slot machine

Pade

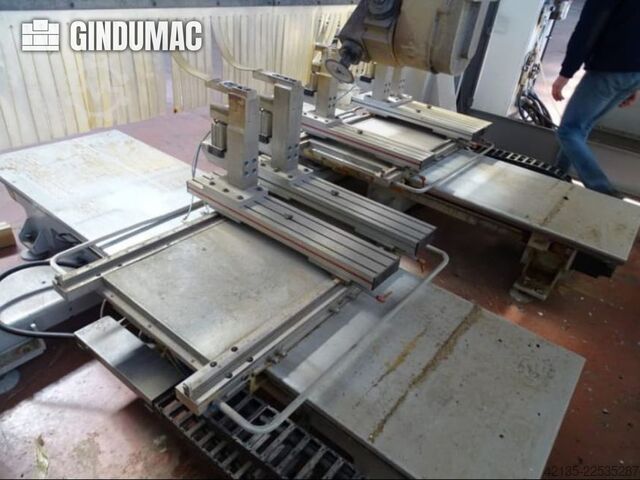

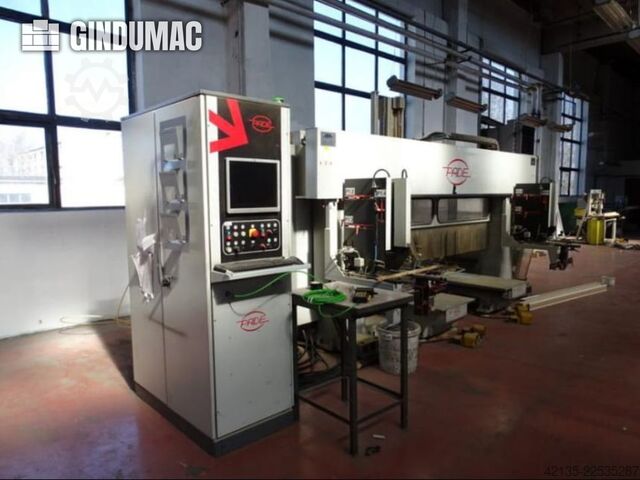

Condition: ready for operation (used), Year of construction: 2011, travel distance X-axis: 3,550 mm, travel distance Y-axis: 1,800 mm, travel distance Z-axis: 750 mm, number of axes: 5, spindle motor power: 7,500 W, spindle speed (max.): 18,000 rpm, This 5-axis PADE VELUX CNC Wood Machining Centre was manufactured in 2011. It features an impressive X-axis travel of 3,550 mm, Y-axis travel of 1,800 mm, and Z-axis travel of 750 mm. The machine includes two tandem worktables with six pneumatic clamps, along with two electrospindles for enhanced performance. If you are looking to get high-quality wood machining capabilities, consider the PADE VELUX machine we have for sale. Contact us for further details. • Worktables: 2 tandem worktables with 6 pneumatic clamps • A-axis: continuous rotation • C-axis: ±370° rotation • Rapid speeds: X 100 m/min; Y/Z 60 m/min • Tool positions: 2 + 2 with collet tool holders • Tool holder standard: EN430E / DIN 6499 Fodpfozt Dd Djx Akhjpk • Tool interface: cylindrical • Collet size: ER32 (tool diameter 1–20 mm) • Spindles: 2 electrospindles, 7.5 kW each • Operating air pressure: 6 bar • Compressed air consumption: 300 Nl/min

Condition: used, Year of construction: 2014, Maximized productivity with two heads and two autoloaders. The exclusive design of hopperfeeders (Pade patent) allow the manual loading of the pieces without any barrier in front of the operator. The piece-holder magazine can be easily “parked” to the side to allow the manual loading of the pieces. Pneumatic clamps with locking from bottom to top that can be easily positioned on the TANDEM pods in order to quickly change the configuration from manual to automatic loading. Fedpfjxw Ty Nex Akhjpk Main features: - Working heads with the possibility of choosing between 1, 2 and 4 spindles - 2 working tables with pods, vacuum table or combined with customizable dimensions - Possibility to add single or multiple clamping systems and CNC lathe - Automatic workpiece loaders with magazine - E-LAB programming system, automatic trajectories manager Main functions: - Mortising - Drilling - Milling - Cutting - Tenoning

Condition: excellent (used), Catalogue number 6462 Fsdpfx Aezr U Evokhepk TECHNICAL DATA - 2.2kW motor - 380V power supply - Head traverse motor 0.9kW - Extraction port diameter 2x100mm - Dimensions (L/W/H): 1330x1100x1220mm - Weight: 920kg Machine equipped with: – 2 tables with angle stops, size 385x330mm – 2 pneumatic clamps – Tables angle-adjustable in two planes – Capability for machining longitudinal and round tenons on the tables – Height-adjustable tables – Tenon width adjustment – Central lubrication – Unpainted – Made in Italy – Used tenoning machine, very good condition Net price: 23,900 PLN Net price: 5,690 EUR Net price calculated at the exchange rate 4.2 PLN/EUR (In case of significant exchange rate fluctuations, the price may change)

Condition: like new (used), Double-sided profiling milling and grinding machine, model Uinze 4T2500STD - Year of manufacture: 2023 - New price: €64,000 - Machine is equipped with 2 special carbide milling heads and 2 grinding units - Weight: 4300 kg - Safety fence: 800 kg, safety roller gate: 300 kg - Working length: 2500 mm, working width: 170 mm - Motor power: milling unit 4.5 kW, grinding unit 4.5 kW - Table return speed: 80-100 m/min Fpjdpfezqgmcex Akhek - Milling speed: 4000 rpm

Condition: like new (used), MZ Universal 013 Fedpfx Aszqgkzokhjpk - Year of manufacture: 2023 - Band saw with copying function - 7.5 kW - 400 volts - Laser cutting angle +45°/-45° - New price: €54,000 - Dimensions: 3800 x 2300 x 2470 H - Weight: 2000 kg

Condition: excellent (used), functionality: fully functional, COPY SHAPER and SANDER machine , automatic , model PADE UINZE 2+2 second hand machine working condition : Excellent CE mark : YES the machine has been designed for the production of parts of tables , chairs , furniture , etc. the machine executes shaping and sanding operations simultaneously on two sides of a workpiece , with the aid of a template prepared according to the desired shape with accident prevention cabin as shown in the photo machine composed by n.04 working units : 1+1 shaping units . motor power Hp 10 each one 1+1 shaping / sanding units . motor power each one Hp 5 / 6,5 ( 2 speeds ) max. working width mm.350 max. workinh heigth mm.180 max. working length mm.2500 hydraulic carriage . pump motor power Hp 5,5 Fpjdpfx Akezk I Egjhjk adjustable hydraulic carriage advance speed: 1:15 m/min. hydraulic carriage return speed: 40 m/min. volt. 380/50 total installed power Kw 30 weight kg. 3500

Condition: used, Year of construction: 1998, Colour: Grey - Year: 1998 - Documentation available: No - CE certificate present: No Fpedpfsych I Tox Akhsk Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: excellent (used), Drill Pade Model: 3L MATIC Fjdottlbgepfx Akhopk

Condition: not inspected (used), Maximum working length: 1500 mm Tilting capacity of heads: from −10∘ to +45∘ Swivelling capacity of heads: from −10∘ to +90∘ Motor power, machining unit: 2×2.25 kW (3 HP) Motor power, drilling unit: 2×2.25 kW (3 HP) Longitudinal movement motor power: 1×2.25 kW (3 HP) Saw blade diameter: 400 mm Saw/drill rotational speed: approx. 3000 rpm Fpsdpfx Aksxz Um Sohsk CONDITION UNKNOWN – NOT TESTED

Condition: good (used), Year of construction: 1991, Double-sided, fully automatic hydraulic trimming, milling, and drilling machine PADE NST Double-sided, fully automatic hydraulic trimming, milling, and drilling machine M2fi2 Production of chairs, tables, frames, and furniture components Max. working length 2100 mm Tilt -10° – +45° Rotation -10° – +50° 2 saw blades, diameter 400 mm 2 drilling heads, rotatable 360° left and right, 8 spindles in a cross-shaped grid 2 additional horizontal drilling heads, rotatable 360° from the rear, 8 spindles in a cross-shaped grid Fjdpedqc T Eefx Akhspk 2 milling spindles, drilling shaft 30 mm 1 motor for longitudinal adjustment, 1.5 kW 2 saw motors, 2.2 kW 4 drilling motors, 2.2 kW
