Slot boring machine

Panhans 116

Condition: used, Year of construction: 2005, devel device: Teilung 16, 22 25, 32 Bodpfx Ajw Dd N Rjbmoww boring depht: 145 mm boring length: 240 mm height adjustment: 135 mm motor power: 1,5kW speed: 1500 / 3000 U/min hold down: manuell suction connection: 100 mm machine length: 1280 mm machine width: 960 mm weight: 300 kg

Condition: new, Year of construction: 2023, New machine Year of construction 2023 Equipment and technical data: - Solid German machine construction - Professional slot milling and precise dowel drilling Fixed table, smooth-running mobile drill motor - Travel device for greater mobility - Cast iron table 700 x 380 mm thick-walled and highly ribbed - 2 manual eccentric clamps with solid steel columns for clamping the workpieces - Smooth-running cross support with adjustable ball guides for lateral and depth adjustment - 2-lever operation - Height adjustment via handwheel and scale, drilling depth stop via scale, drilling length limit adjustable via left and right side stops - Drill motor power 1.3/1.7 kW, pole-changing, speed 1500/3000 rpm with mechanical motor brake and practical tool tray - incl. emergency stop button - High-precision two-jaw drill chuck with protective sleeve, clamping range 1-20 mm - Dowel drilling device for drilling holes in rows with 16, 22, 25 and 32 mm raster roller high-precision milled raster, fixed via spring-loaded raster bolt Bsdpfxjw I Uzkj Abmoww - Plug-in frame stop with index bolt for the positions: center, left, right Mitre fence, plug-in with index bolt for 45° and 22.5° - Workpiece fence up to 1500 mm for series processing - CE-compliant, GS tested - Max. Drilling depth 145 mm - Max. Drilling length 240 mm - Height adjustment 135 mm - Clamping range 5-20 mm - Motor power 1.3 / 1.7 kW - Voltage 400 V / 50 Hz - Suction nozzle 100 mm Ø - Color RAL 7035 light grey and RAL 5000 violet blue Special equipment: - Dial gauge in the handwheel, with 0.1 mm height adjustment display instead of the scale - Single-lever operation with remote locking for longitudinal and transverse movement of the drill motor including loosening and locking of the raster bolt on the dowel drilling device, narrow workpieces can then also be processed from the side of the table - Emergency stop button with key - Safety cover over the drill chuck with electric lock New price with this equipment 12213. Shipping dimensions: 120x80x160 cm Weight: approx. 200 kg Availability: short term Storage location: Hochheim

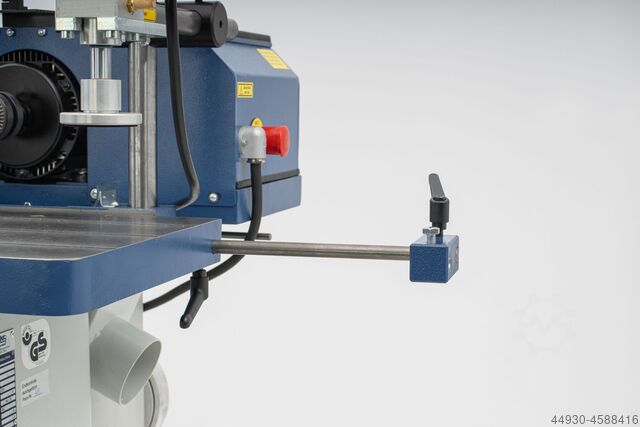

Condition: new, Year of construction: 2024, TECHNICAL DATA Bsdpfxefpa Ras Abmeww -drilling depth max. 145 mm -drilling length max. 240 mm -height adjustment 135 mm -suction port ø 100 mm -speed 1500 / 3000 rpm -ColorRAL 7035 light grayRAL 5000 violet blue -net weight approx. 200 kg Solid German machine construction Professional slot milling and precise dowel drilling Fixed table, smooth running mobile drilling motor Travelling device for more mobility Cast iron table 700 x 380 mm thick-walled and highly ribbed Smooth-running cross support with adjustable ball guides for lateral and depth adjustment Height adjustment via handwheel and scale, drilling depth stop via scale, drilling length limitation adjustable via side stops on left and right side Drilling motor power 1.3 kW/1.8 HP or 1.7 kW/2.3 HP, pole-changing, speed 1500/3000 rpm with motor brake and practical tool tray Incl. emergency stop button High-precision three-jaw drill chuck, clamping range 5 - 20 mm Dowel drilling device for hole line drilling with grid roller 16, 22, 25 and 32 mm high-precision milled grid, fixation via spring-loaded grid pin frame stop pluggable with index bolts for the positions: center, left, right Miter fence pluggable with index bolts for 45° and 22,5°workpiece fence up to 1500 mm for series machining CE-conform GS tested

Condition: excellent (used), Drilling depth 14 cm Drilling height 14 cm Drilling width 23 cm 2 kW motor Bwsdpfxjupz Tze Abmow Very good condition.

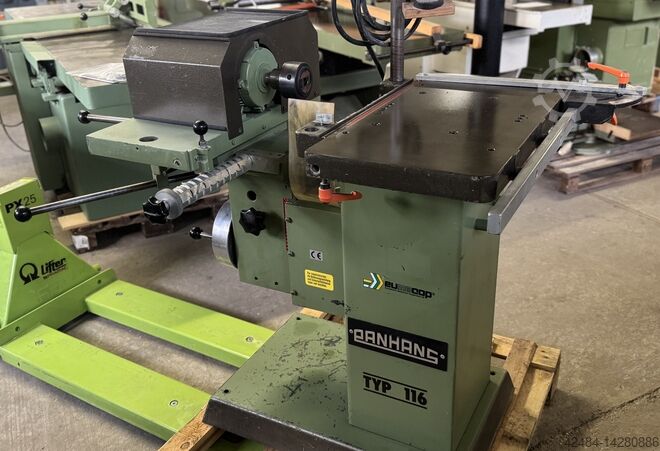

Condition: used, Year of construction: 1988, dowel hole drill device: division 16, 22 25, 32 max depth of the slot: 145 mm max length of the slot: 240 mm height adjustment: 135 mm motor power: 1,5kW speed: 2800 U/min suction connection: 100 mm machine length: 1280 mm machine width: 960 mm weight: 300 kg Bodpfxoqx Ig Aj Abmjww
