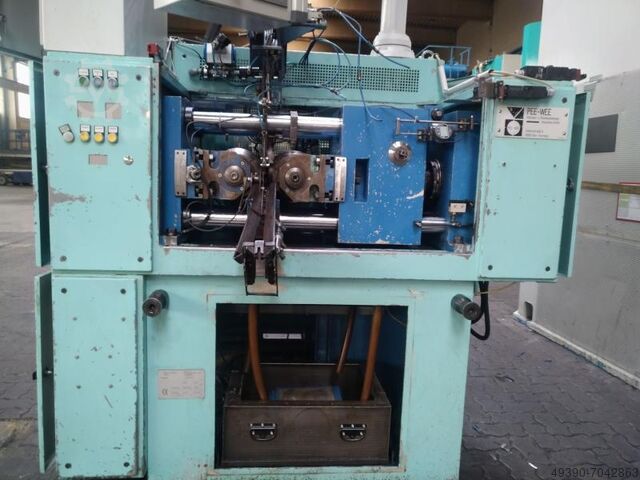

PEE-WEE P 24 Q

Thread rolling machine, cold rolling machine, thread forming machine, profile rolling machine
Manufacturer PEE-WEE, Type P 24 Q
Serial No. LC2403099, Year of manufacture 2004
Rolling force, max. 24 tons
Tool diameter, max. 200 mm
Rolling spindle diameter 69.85 mm
Tool bore diameter 70 mm (nominal diameter)
Receiving length, tool length, max. 180 mm
Workpiece diameter, max. 50 mm
Rolling spindle speed 22 - 44 - 95 - 190 RPM
Hydraulic motor power approx. 3 kW
Rolling drive motor power 5.5 kW
Mains connection 400 Volt, 50 Hz
- Swiveling rolling spindle for thread through-rolling
- Rolling spindle speed in 4 stages via gear change
- Hydraulic system integrated in the machine bed
Space requirement L x W x H 2000 x 1750 x 2550 mm
Weight approx. 3 tons
Good condition

Plunge rollers: The thread rolling tools with the same pitch as the workpiece form the thread by penetrating the workpiece up to the nominal diameter. The thread length is a maximum as long as the rolling tools are wide.

Through-rolling tools: If the thread length is greater than the rolling tool width. Through-rolling tools have 3 sections - the inlet, the calibrating section, and the outlet. Grooved rollers have no pitch and are swiveled with the helix angle of the profile to be rolled.

Dedpfxjh A S Htj Ai Rjck
Helix rollers differ from grooved rollers by having a pitch in the profile. The sum of the helix angle and the swivel angle results in the helix angle in the workpiece.

The listing was translated automatically. Translation errors are possible.
