Lapping machine

Peter Wolters AC500

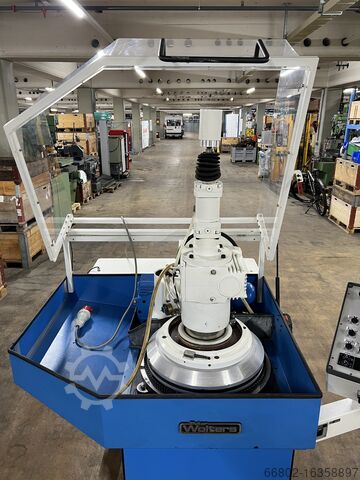

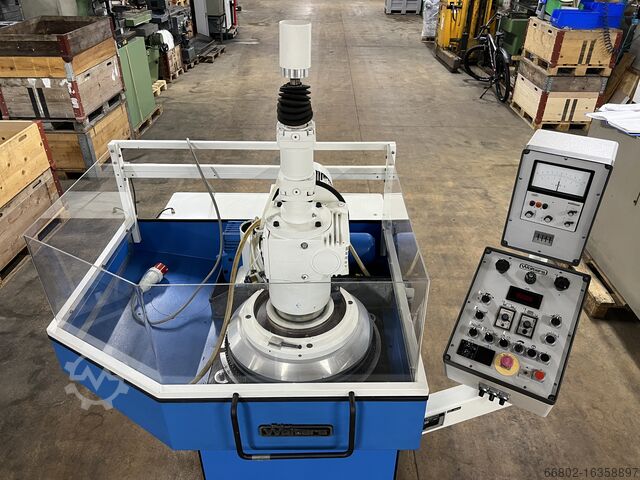

Peter Wolters AC500 lapping machine

TECHNICAL DATA AND SCOPE OF SUPPLY

TECHNICAL DATA

Rolling device size: 42 TS 7/14

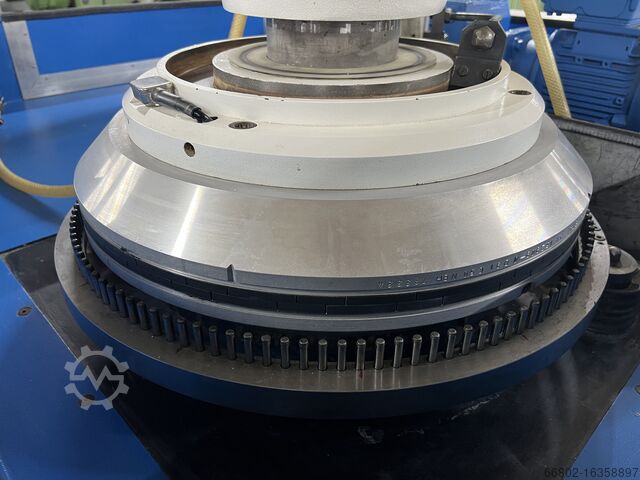

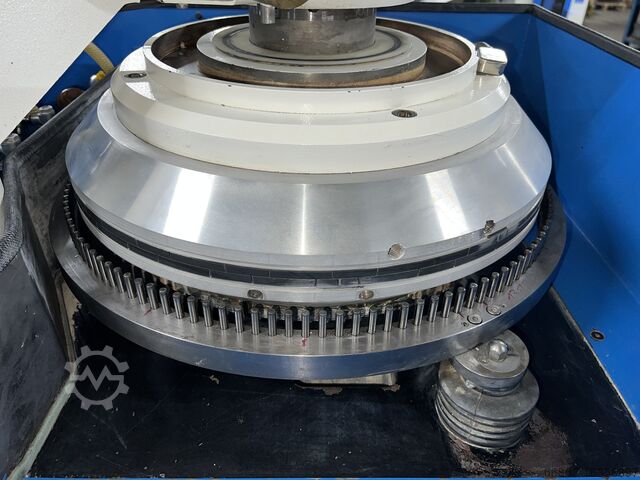

Working disk diameter: 415 mm
Ring width: 54 mm
Working disk thickness: 50 mm
Possible wear of the disks to approx.: 20 mm
Number of rotor disks: 14

Drive data: 380 V / 50 Hz

Upper disk drive: 1.0 / 1.4 kW

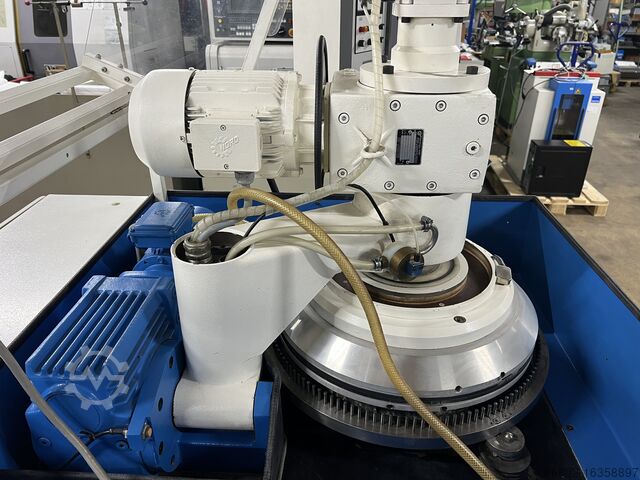

Worm gear motor: 56 / 112 rpm
Lower disk drive: 1.0 / 1.4 kW
Worm gear motor: 500 / 100 rpm
Workpiece drive: 0.5 / 0.7 / 0.9 kW
3-pole worm gear motor: 6 / 18 / 36 rpm
Tilt arm drive: 0.25 kW

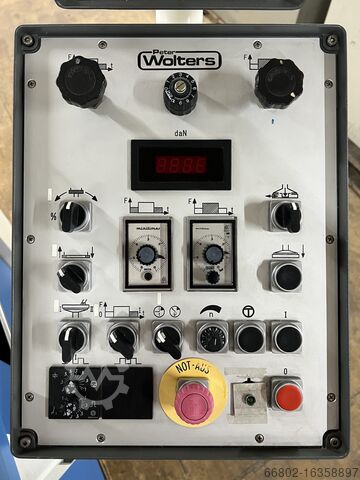

Digital load adjustment of the upper work disk: 0-250 daN

Connection data

Electrical connection: 5.0 kW
Compressed air connection: 5-7 bar
Compressed air consumption: Approx. 8 Nl/min

OFFER SCOPE
Hfodpfxjtxitvs Ahusb

U.A: (list not exhaustive):

Peter Wolters AC 500 lapping machine / fine grinding machine

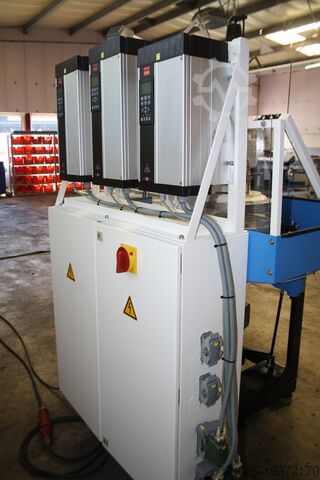

1 inverter per motor
documentation

Exact scope of offer according to photo gallery

No responsibility is taken for the correctness, completeness and up-to-dateness of the information.

The listing was translated automatically. Translation errors are possible.
