Vertical Turning Machine
PITTLER PV 4000

Year of construction
2018
Condition
Used
Location
Germany Germany

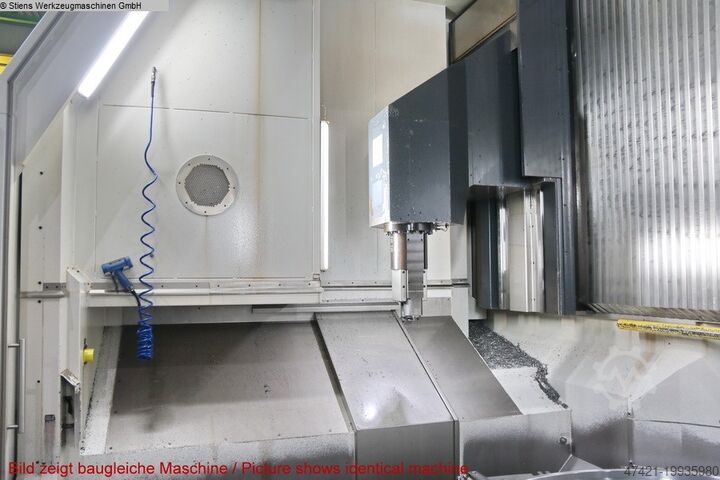

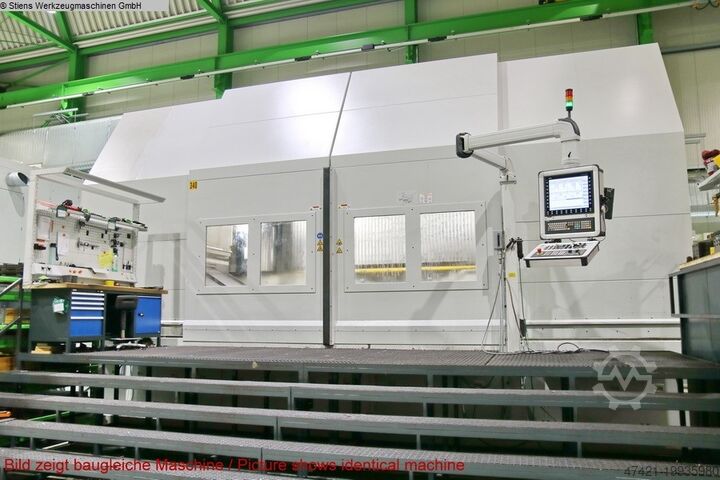

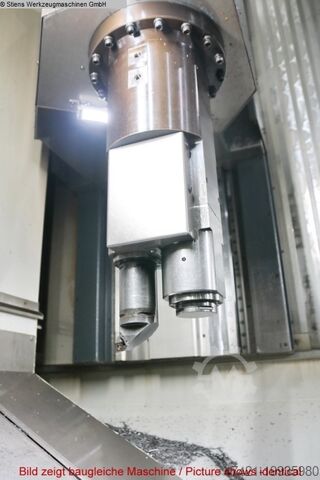

Vertical Turning Machine PITTLER PV 4000
Vertical Turning Machine PITTLER PV 4000
Vertical Turning Machine PITTLER PV 4000
Vertical Turning Machine PITTLER PV 4000
Vertical Turning Machine PITTLER PV 4000
Vertical Turning Machine PITTLER PV 4000
Vertical Turning Machine PITTLER PV 4000
Vertical Turning Machine PITTLER PV 4000
Vertical Turning Machine PITTLER PV 4000
Vertical Turning Machine PITTLER PV 4000
more Images
PITTLER PV 4000
PITTLER PV 4000
PITTLER PV 4000
PITTLER PV 4000
PITTLER PV 4000
PITTLER PV 4000
PITTLER PV 4000
PITTLER PV 4000
PITTLER PV 4000
PITTLER PV 4000
Show map
Show images
Show map

Machine data

Machine type:
Vertical Turning Machine
Manufacturer:
PITTLER
Model:
PV 4000
Year of construction:
2018
Condition:
used

Price & Location

Location:
Deutschland Germany
Call

Details about the offer

Listing ID:
A199-35980
Reference number:
1039-9386
Update:
05.09.2025

Description

turning diameter max. 3.800 mm
diameter of spindle flange 1.900 mm
max. swing diameter 3.800 mm
control 840 D sl Siemens
turning speed range - main spindle max. 100 min/-1
power capacity - main spindel 200 kW
max. Torque 67.000 Nm
gear box 1:30
tool taper Capto C8
swivellable B: 0 - 270 °
Spindle speed - driven tool pos. max. 6.000 min -1
max. Torque 120 Nm
tool taper Capto C8
number of toolpositions 41 pos.
max. tool weight 20 kg
max. tool length 400 mm
max. tool diameter 120 mm
0 125 mm
tool taper Capto C8
number of toolpositions 25 pos.
Kedpfx Aexap Dpshujdg
workpiece diameter at full load 150 mm
max. tool weight 20 kg
max. tool length 400 mm
x-axis 1: 2.800 mm
x-axis 2: 3.200 mm
z-axis 1.000 mm
rapid traverse X: 32 / Z: 20 m/min
feed power X/Z: 22 kN
total power requirement 250 kVA
weight of the machine ca. ca. 30 t
dimensions of the machine ca. 10,4 x 6,3 x 5,7 m
CNC - Double-Spindle-Vertical-Lathe
PITTLER - PV 4000

- Control Expansion / Software
SINUMERIK 828D/840D SL ProgramSYNC Software Option

- Retractable Foot Guards
- Coolant Circulation
- Oil Hose Skimmer
- SIEMENS Safety Integrated
- Network Interface / Data Transfer
DNC Option
- Remote Diagnostics for the NC Area
- Teleservice for the integrated PLC of the Sinumerik 840 D
- Ethernet connection in the control cabinet
- Variable speed range to prevent vibrations
- Air purifier, electrostatic separation
- Measuring probe for in-process workpiece measurement
- Walk-in work area
