Broach tool

Planeta Coswig 16D11x2,7

Condition: ready for operation (used), Straight bevel gear generator SARATOV 5C276P Max Module 10 Max. gear wheel diameter 500 mm Max. gear wheels cone distance 250 mm Max. gear ring width 80 mm Min. angle of dividing cone (pitch), degrees 5 Number of wheel teeth: 10 - 150 Distance between spindle and machine center, mm - max. (stock angle 5 degrees) 375 mm; - min. (stock angle 90 degree) 75 mm Stroke 100 mm Slider double stroke 48 - 400 spm Motor capacity 4 KW Machine dimensions 2885 x 2570 x 1995 mm Fodpfx Aaouc T Hxo Nepp Machine weight 8750 kg

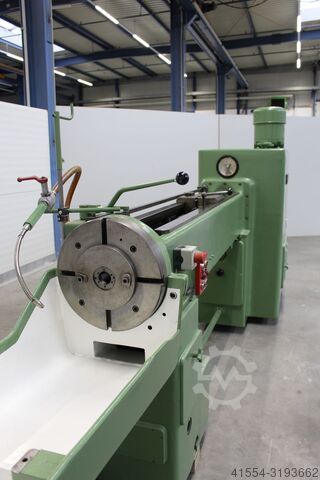

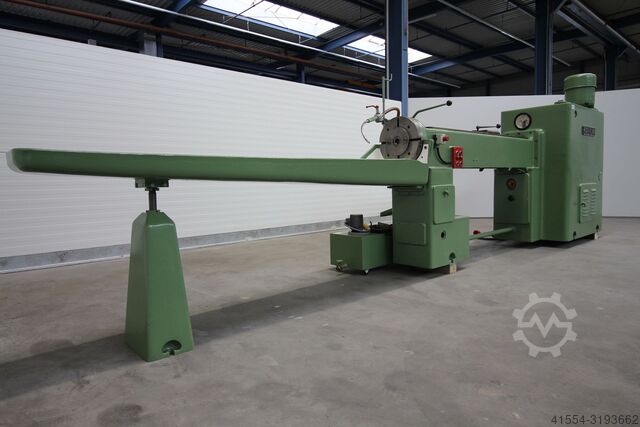

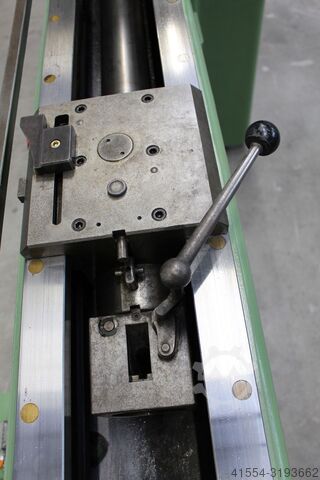

Year of construction: 1955, condition: used, machine/vehicle number: 1331, Manufacturer: Karl Klink Model: RW 10 Year of manufacture: 1955 Weight: approx. 2950 KG Machine. No.: 1331 Fpjdsdbr H Tjpfx Aa Njp General / technical data: hydraulic horizontal internal broaching machine in a good working condition clearing length: 1500mm turning: 1 piece pulling force: 10000 KG at 3m/min (5000KG at 7m/min) Clamping tool: universal pulling head for flats up to 26mm width Through hole in clamping table: Ø 100mm Workpiece diameter: max. 420mm (due to the oil and oil sump) cutting speed: hydraulically infinitely variable from 1m/min to 7m/min Return speed: hydraulically infinitely variable from 7m/min to 25m/min Dimensions of the machine: (w x d x h) approx. 6200mm x 700mm x 1900mm (without working area) Power supply / connected load: 380Volt 50 HZ / 8 KW hydraulic motor: 7,5 KW Accessories / special equipment: - the machine is equipped with a universal drawing head for flat sheets - the machine has a movable coolant cutting unit for 2 media - the machine has an oil and oil tank with a tool feeder slide Remarks: The machine is ideal for the production of keyways and profiles. The machine runs smoothly and is very clean in the area of the guides and the cylinder. Broaches and mandrels can be supplied on request. The machine is ready for inspection under power in our warehouse.

Condition: excellent (used), Broaching tool, broaching needle, special tool, grooving tool, keyseating machine, keyway broaching machine, keyway broaching machine, keyway broaching tool, broaching needle -Manufacturer: SWZ, broach push broach -Type: B 6 J9x1.8 RL 24-72mm -Item no.: 45 0014 -Width: 6mm Fedpfsitt Ryox Aa Njpp -Number: 2x broach available -Price per piece -Total dimensions: 900/6/H13 mm -Weight: 0.5 kg/pc.

Condition: used, power converter / rectifier. techn. details see photos. Fpjdpfxjd Ihayo Aa Nop

Condition: used, Year of construction: 1997, max. wheel diameter 275 mm gear width 150 mm max. module 6 min. module 1,5 total power requirement 62 kW weight of the machine ca. 12 t dimensions of the machine ca. 4,7x4,4x2,45 m max. wheel diameter mm gear width mm max. module 6 min. module 1.5 max. workpiece diameter 275 mm tooth width max. 5.5 mm spiral angle 0 - 60 ° number of teeth 5 - 120 transmission ratio min. 1:1 transmission ratio max. 1:10 milling drive motor 20 kW workpiece drive 14.5 kW total power requirement 62 kVA weight of the machine ca. 12 t dimensions of the machine ca. 4,7 x 4,387 x 2,45 m Tool spindle (D-axis) - workpiece spindle speed (infinitely) 60 to 350 [...] Tool positioning axis (E-axis) - swivel range 0 to 360° - swivel speed max. 19.5°/s Workpiece spindle (B-axis) - mounting diameter outer cone (1: 4) 140 mm - standard internal cone (1:20) 99.218 mm - workpiece spindle speed max. 300 [...] - workpiece spindle passage 90 mm Fedpfx Aajul Etde Nspp Workpiece positioning axis (Y-axis) - travel 870 mm - speed max. 4.5 m/min Roller rotation axis (A-axis) - swivel range 315° - swivel speed max. 40°/s Axis intersection (Z-axis) - travel range max. +/- 50 mm - speed max. 0.657 m/min Workpiece swivel axis (C-axis) - swivel range -8.5 to 98° - swivel speed max. 21.5 °/s Milling depth axis (X-axis) - travel from -25 to 640 mm - max. speed 6 m/min Machinen distance (V-axis) - travel 150 mm - speed max. 1.6 m/min
