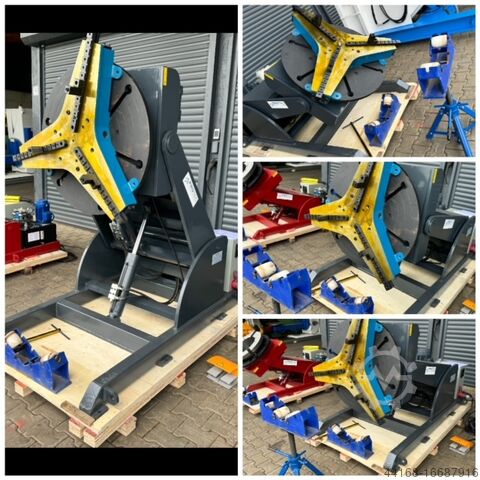

Welding turn table high adjustable

Protec KT 600 HV

Condition: as good as new (ex-display), 600 Kg load capacity welding rotary table adjustable in height with plate diameter 1000mm Ndodpfx Acod D D Hlj Hof height min. 0,65m, max. 1,530m speed from 0,01 - 1,1 rpm inclination up to 135 hand and foot remote control with speed indicator very robust

Condition: like new (used), Year of construction: 2020, Machine type Machining center - Vertical Manufacturer DMG MORI Type CMX 600 V Year of construction 2020 Nedpfsrwi Swsx Ac Hedf Control 840D SL Slimline Multi Touch Operate 4.7 Country of origin DE- Delivery time by arrangement Freight basis ex location Technical details x-path 600 mm y-path 560 mm z-path 510 mm Control unit 840D SL Slimline Multi Touch Operate 4.7 Main spindle: Max. Max. speed 12,000 min/-1 Drive power - main spindle 13 / 9 kW Max. Torque 82 / 54 Nm Tool holder SK 40 Distance between spindle nose and table 120 - 630 mm Work table: Table clamping surface 900 x 560 mm Max. table load 600 kg T-slots 5 Working height 850 mm Tool magazine: Number of tool positions 30 pos. SK 40 tool holder max. tool diameter 80 mm max. tool diameter with free neighboring box 130 mm Max. tool length 300 mm Max. tool weight 8.0 kg Tool - tool change time 2.4 sec Changing time chip - chip 6.7 sec Feed rates: Rapid traverse 30 m/min Feed force 5 kN Feed speed max. 30,000 mm/min Total power requirement 32 kVA Machine weight approx. 5.0 t Space requirement approx. 4.0 x 5.0 x 3.0 m Accessories documentation Chip conveyor Coolant unit High-pressure cooling 12 bar Internal coolant supply electric handwheel Signal lamp - 4 colors Measuring probe PP40 Tool measurement

Condition: new, Year of construction: 2025, load capacity: 600 kg, 600 kg load capacity Welding turntable height adjustable with through hole 100 mm Plate diameter 700mm Horizontal height min. 0.65m, max. 1.25m Height tilted min. 0.45m, max. 0.95m Speed from 0.01 - 1.3 rpm Tilt up to 135° Ndedpfx Asr Tr Axec Hjf Hand and foot remote control with speed display Very robust Chuck at extra charge depending on version and size

Condition: like new (used), Year of construction: 2022, 600 Kg load capacity welding rotary table adjustable in height with through hole 100 - 200mm plate diameter 700mm height horizontal min. 0,65m, max. 1,25m height tilted min. 0,45m, max. 0,95m speed from 0,01 - 1,1 rpm Nodpfsd Anz Rsx Ac Hedf Tilt up to 135 hand and foot remote control with speed indicator very robust

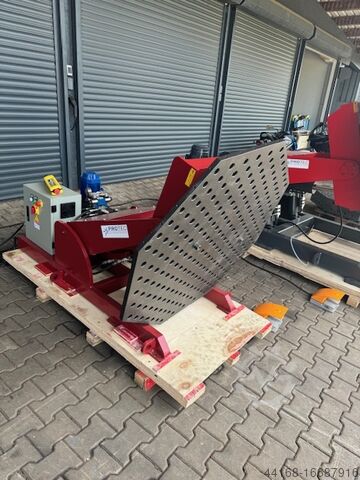

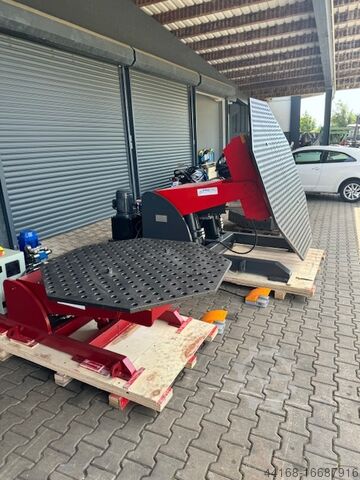

Condition: new, original Siegmund welding table perforated plate octagonal 2D or 3D 1200 x 200 with 28 mm hole Njdpfx Aot Sk Ndjc Hedf 514 kg, diameter 1300 mm plasma nitrided original price 8900.-€ in combination with positioner half price sold only in combination with positioner Hole holder 8 hole 500 x 500 diameter 18mm (see picture)

Condition: new, load capacity: 600 kg, 600 kg load capacity, alternatively 1000 kg or 3000 kg Height-adjustable welding turntable with through-hole 100 mm Plate diameter 700mm Horizontal height min. 0.65m, max. 1.25m Height tilted min. 0.45m, max. 0.95m Speed from 0.01 - 1.3 rpm Tilt up to 135° Hand and foot remote control with speed display Ndodot Sk Hpjpfx Ac Hjf very robust Chuck or original Siegmund perforated plate at extra charge depending on version and size Hole plate 2D or 3D inexpensive

Year of construction: 2019, condition: as good as new (ex-display), 600 Kg load capacity welding rotary table, height adjustable speed infinitely variable from 0,05 to 0,7 rpm Diameter of rotary table 1200mm Inclination up to 120 Height adjustment from 1450mm to 2050mm Nodpfxod A Et Ho Ac Hedf Hand and foot remote control

Condition: new, Year of construction: 2025, grinding length: 700 mm, grinding width: 400 mm, COSMOS E 7040 NC Precision Surface Grinding Machine, grinding area 700 x 400 x 350 mm, spindle power 3.7 kW, grinding wheel 300 x 50 x 76.2 mm, Mitsubishi PLC control and drive technology, very user-friendly, incl. magnetic chuck 700 x 400 mm with adjustable holding force, grinding spindle with speed regulation, automatic grinding cycle with rough grinding, fine grinding, spark-out and retraction, dressing with size compensation, coolant system with paper band filter. 12 months warranty. Inspection under power and test grinding possible at any time. We are happy to provide on-site installation and training as well as subsequent service! Financing / leasing available upon request – we will gladly provide an offer! Nodpfxjrwwt So Ac Hsdf

Year of construction: 2022, condition: new, Manipulator with two height adjustable outriggers and face plate. Load: 1.500kg stroke: 800mm swivel range: 300 Ndodpfx Aofnku Hjc Hjf face plate diameter: 1.000mm Welding current: 600A

Condition: good (used), Year of construction: 2000, Equipment: documentation/manual, LATHE TORNADO COLCHESTER 200 CNC FANUC GE Series DIAM. AUTOCENTRATING MANDRIN : 250 mm CORSE : X : 215 mm Z : 400 mm TOOL MAGAZINE : 12 POSITIONS INCLUDING VARIOUS TOOL HOLDERS AND TOOLS BAR WIDTH : 65 mm TAILSTOCK IN CYCLE CHIP EVACUATOR Nodpfx Acetuut Us Hodf INCLUDING ALL DOCUMENTATION
