⭐Wet paint booth & drying system⭐

Proton WETLINE KKF

⭐⭐⭐⭐⭐ (5.0) Customer Rating – Quality that convinces!
⚡ Top Service – Fast Delivery – Reliable Support ⚡
✈️ Plus shipping costs – Shipping possible upon request

⏰ 48-hour EXPRESS DELIVERY possible after down payment!
The standard delivery time varies depending on stock levels between 1 working day and approximately 15 weeks.
🔧 Please note: Additional options can extend the delivery time.
📩 Ask the seller in advance whether your chosen options are immediately available.

🛒 ►►► Buy now! ◄◄◄
💸 Preserve liquidity – invest wisely!
✳️ We offer flexible financing options:
✔️ Hire purchase
✔️ Leasing
✔️ Warranty programs
📞 Contact us – we will find the best solution for your budget!
Gsdsipvulspfx Ahzeiw

✨ Strong. Economical. Efficient. ✨
📦 Immediately available in three standard sizes!
📌 Our three most common cabin sizes are usually in stock and available for short-term delivery.
📌 If larger painting areas are required, we can combine standard cabins in a modular way to create customized solutions – tailored to your space and process requirements!

🎨 PROTON WETLINE KKF-40-70-35
Top-class wet spray booth & drying system
📐 Technical data (internal / external):
Length: 6900 mm / 7000 mm

Width: 3900 mm / 4000 mm

Height: 2700 mm / 3500 mm

Air handling unit: 1350 x 2900 mm

🔧 Performance features:
🌬️ Vertical airflow over a full-surface ceiling air supply plenum – for even, dust-free painting
🚪 3-panel main door with viewing windows + service door with emergency locking in case of overpressure
💡 Shadow-free lighting, heat-resistant and compliant with standards
♻️ Recirculation system with controllable fresh air flap – fast heating to 60–80 °C in 8–15 minutes
🔇 Low-noise, high-performance fan with constant airflow (0.30 m/s)
🛡️ Slight overpressure reliably protects against dust ingress

🔥 Heating system & efficiency:
Riello G20 burner

Heating output: approx. 200,000 kcal/h

Efficiency: up to 99 %

High-temperature heat exchanger made of special steel

🧼 Filter technology at the highest level:
✅ Pre-filter (tear-resistant, up to 100 °C, DIN 53438-3 F1)

✅ Ceiling filter (EN 779: F5, polyester-coated)

✅ Floor filter (Paint Stop, G3, silicone-free)

✅ Activated carbon filter (DIN 24184, class G4)

🖥️ Intelligent control:
Modern control panel for full control over ventilation, heating, lighting and safety – simple & compliant with standards
🖲️ Optionally available with touchscreen operation

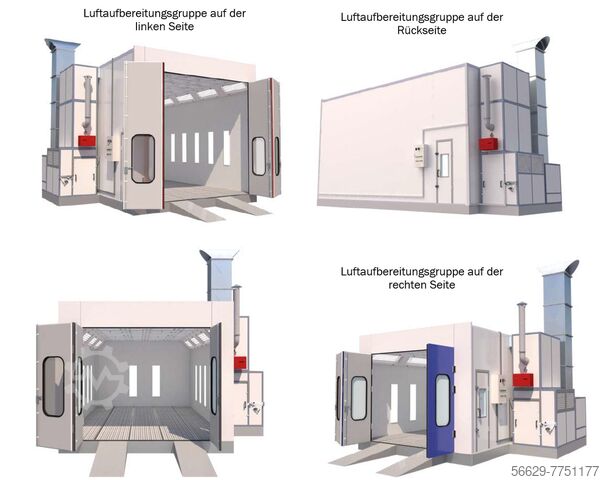

🧱 Air handling units can be flexibly positioned
– can be mounted to the right, left or rear of the cabin

➕ Optional equipment (at extra cost):
🪟 Panoramic door – fully glazed
🧱 Roof with additional insulation
🎨 Paint mixing station can be integrated
🌈 Color selection: Any RAL color possible (standard: blue, white, orange, red, gray)
💡 Ex-protected lighting (Exproof)
🌪️ Ex-protected fan (Exproof Fan)
🖥️ Touchscreen control

⚠️ The choice of special equipment can extend the delivery time. Please agree on your options with our sales team in advance.

🚧 Assembly costs are not included in the price.
📍 These depend on your location – we will gladly prepare an individual offer for you!

☀️ 2 YEAR WARRANTY – Better safe than sorry! ☀️
⭐ Follow us for new offers & promotions! ⭐

PROTON Maschinenbau GmbH – Your partner for professional painting technology with over 40 years of experience.
