Deburring and grinding machine

Q-FIN Topgrinder

Condition: new, Timesavers Series 12 WW The machine is equipped with two belt grinding stations; with station 1 you can perform pre-grinding to remove high burrs and splatter, and with station 2 you can achieve a surface finish on the part. The transport speed of the belts is continuously adjustable. The table opening can be adjusted from 0.8 to 100 mm. Kedpfxowqf U Us Afdedk

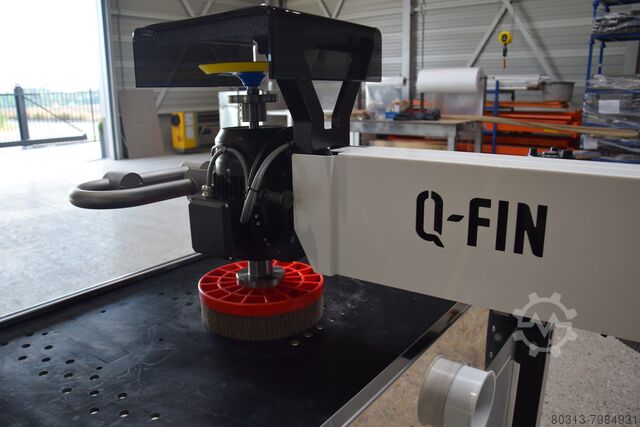

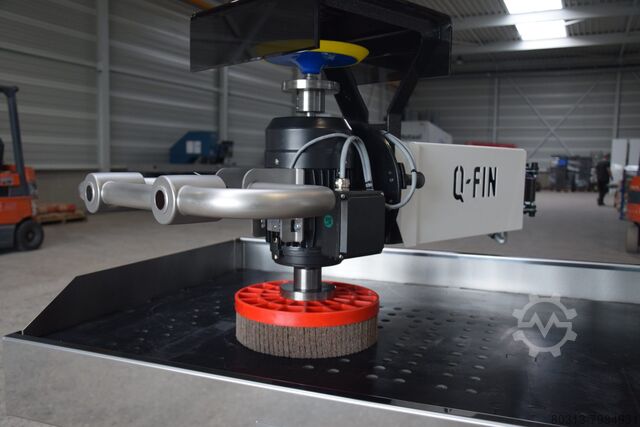

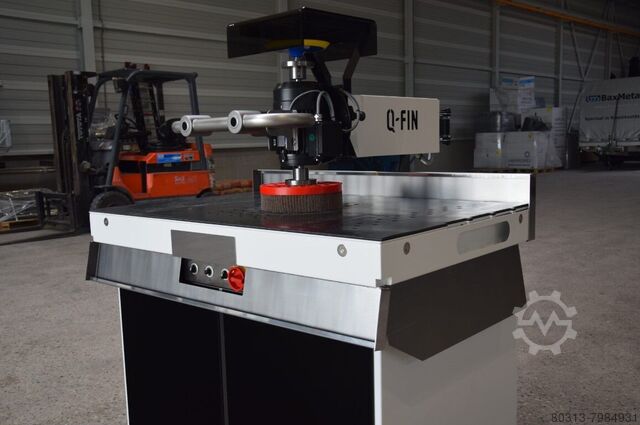

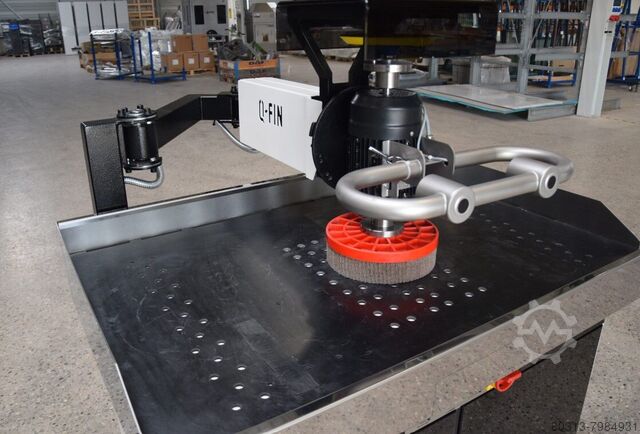

Condition: new, diameter 150 mm workpiece length 1300 mm work piece width 800 mm max. dia. of grinding wheel 150 mm turning speed range 0 - 2830 U/min work height max. 945 mm milling-head swivable +/- 180° Ksdpfx Aoxab Hpofdedk engine output 1.5 kW weight of the machine ca. 230 kg. dimensions of the machine ca. 1435 x 1100 x 1510 mm The "Easy T" is the cost-effective alternative to the conventional ones grinding and deburring machines. His head consisting of a grinding wheel and a flap brush, can be swiveled by 180°. Thus, a faster Switching between the aggregates possible. Due to the weight-bearing arm the head can be easily moved over the workpiece. The result is one even edge rounding. The pad also prevents slipping of the smallest components. Furnishing : - Deburring and rounding of laser-cut or stamped sheet metal parts - Grinding head, consisting of a grinding wheel & a flap brush, can be swiveled by 180° - Working area 800 x 1300 mm - Weighted arm for easy pivoting - non-slip table pad - Ergonomic operation of the machine with the help of push buttons "On/Off" - Grinding head with infinitely variable speed via frequency converter - Handle for ergonomic handling

Condition: new, roller diameter: 140 mm, - Capacity 1050 x 6 mm - Electrically adjustable rear roller - Conical roller - Swiveling top roller - Brake motor - Emergency stop - Documentation - 400V Kdsdjpwgdyopfx Afdjk

Condition: new, Year of construction: 2025, control type: CNC control, degree of automation: automatic, pipe diameter (max.): 51 mm, pipe length (max.): 3,000 mm, tube wall thickness (max.): 3 mm, bending angle (max.): 190 °, bending radius (max.): 250 mm, number of axes: 5, Equipment: CE marking, emergency stop, foot remote control, STANDARD EQUIPMENT • 3 Sets of Dies (1 set of rolling die and 2 sets of bending dies, or 3 sets of bending dies, as per required dimensions) • 5-axis servo control (Y, B, C, H, V) • Servo Motorized Feed Axis • Servo Motorized Rotation Axis • Servo Motorized Bending Axis • Servo Motorized H and V Axes • 21” TFT Touchscreen Mobile CNC Control Unit • Rolling capability • 3D Bending Simulation • Collision Simulation • Daily, Weekly, and Monthly Total Operating Status Reports • Calculation of Workpiece Material Length • Calculation of Estimated Bending Time • X-Y-Z to Y-B-C Conversion • Emergency Stop Foot Pedal with Mobile Function • Remote Assistance • Mandrel Bending and Mandrel-less Bending • Safety Plate behind Bending Head • Hydraulic Clamping • Hydraulic Mandrel • Hydraulic Support • Hydraulic Linear Guide System • Hydraulic Chuck Clamp Kdsdpjxircaofx Afdjk • Safety Lock on Electrical Cabinet and Keyed Panel Lock • Electrical System Cooling Unit • Overload Protection • Detailed Operation Report Automatically Sent OPTIONAL EQUIPMENT (Not Included in Price) • Additional Sets of Dies • Safety Mat (750 x 1000 mm) • Safety Mat (1000 x 1500 mm) • Hydraulic Oil Heater • Additional Mandrel Length (up to 6 m) – per meter • Ball Mandrel and Wiper Die • Automatic Mandrel Lubrication System (for suitable tube diameters) • Hydraulic Oil Cooler CAPACITY MB-51 CNC/5 AXIS Maximum Capacity mm Ø51x3 mm Maximum Bending Radius mm 250 mm Maximum Bending Angle ° 190° Hydraulic Pressure bar 50–200 Working Length mm 3000 Rotation Tolerances ±0.1 Bending Speed kW Variable LxWxH mm 6350x1400x1600 Weight kg 3750

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 2316-01, working width: 600 mm, Type 41 Series 600 WRD Working width 600 mm Ideal machine for deburring and finishing of metal products Equipped with grinding belt and disc/brush aggregate Ksdpfxsr Nbpbj Afdjdk

Condition: new, Year of construction: 2025, functionality: fully functional, The 10 series is Timesavers’ versatile starter model and the cost saving alternative for manual deburring, edge rounding, laser oxide removal, slag removal and finishing of metal. Kdjdpfx Afoyucq Tjdek

Condition: new, neu ca. 12 Wochen ab Auftrags Italien 153200 € 2895.48 € 1350 mm 0,4 - 120 mm 1370 x 2200 mm 6000 m³/h 150 mm 6 bar 4200 mm 2300 mm 2350 mm 4200 kg WITH 2 WORKING STATIONS: 1 X GRINDING BELT UND 1 X BRUSH UNIT ON TOP * Machine made of stress-free welded steel construction for stable and rigid structure * Work table with motorised height adjustment via 4 synchronised spindles. * Independent drive motors for each work group. * Hoods for extraction inside the machine, one per station. Touch screen for: * Automatic star-delta connection of the main motors * Digital display for sheet thickness with decimal point tolerance * Material thickness adjustment (+/- 0.1 mm) * Machine condition monitoring with alarm messages FEEDING SYSTEM * Robust steel structure, wear-resistant surface. * Vacuum conveyor belt on request * The table raises and lowers from 780 mm to a maximum height of 950 mm above the floor. The power of the motor for height adjustment of the table is 0.25 kW. * Maximum permissible weight on the table: 140 kg. * Variable feed speed via frequency converter 0,4 to 4,5 m/min, Option 0,2 to 2,0 m/min or 0,6 bis 6,0 m/min. * Rubber conveyor belt, oil and temperature resistant. * Lateral guides to prevent the belt from lifting off. * Rubber pressure rollers in front and behind each station, oil and temperature resistant. * Automatic centring device for the conveyor belt * Automatic servo cooled motor * Speed motor on the main touch screen 1 TH R GROUP DEBURRING WITH ABRASIVE BELT * Rectified and balanced contact roller with 180 mm diameter. Coating of oil and heat resistant nitrile rubber. Standard roller hardness 55° shores. Mounted on an eccentric shaft that allows to control the working position and compensate the abrasive belt wear, with a range of 8 mm. This system is controlled by a pneumatic cylinder that allows the automatic insertion of the group into the work and, in case of emergency and/or machine stop, the immediate removal of the sanding belt from the working point. It is possible to insert sanding belts and/or Scotch Brite. * Pneumatic on-off switch. * Roller adjustment up-down "grain" stroke 10 mm * Variable speed motor 11 kW with automatic braking in case of emergency. * Rotation speed in feed direction 4 - 18 m/s. * Width and duration of the oscillation setting. * Pneumatic tensioning system for the abrasive belt. * Sanding belt centring system, with electronic photocell, Oscillation adjustment in width and time. 2ND GROUP ROTATING BRUSH UNIT * 2 rows of vertical brushes, 4 rotating clockwise and 4 counterclockwise. * Each brush has a diameter of 350 mm and a length of 530 mm. * Motorised raising and lowering of the group to regulate the pressure of the deburring. * Variable speed motor 1,5 kW. * Variable speed group electronic inverter 6 - 12 U/min. * Brush motor with variable speed, power 6 kW (4 x 1,5 kW). From 300 to 900 U/min. * Speed programmable control and display on the electronic touch screen. CONTROL OF THE THICKNESS AND THE BRUSHES * Motorised table lifting with fine adjustment via 4 precision screws with ball bearings * Maximum operating pressure 120 mm * Pressure motor power kW 0,75 Kdsdpfx Afeynmw Rodek * Pressure adjustment via touchscreen CONVEYOR BELT CLEANING Brush system in nylon canvas for cleaning the conveyor belt (length 1350, Ø =150 mm), located at the back of the machine under th...
