Universal machining center

Quaser UX600 15C

Condition: used, Year of construction: 2013, Brand : GEMINIS Psdpozn Axiefx Anysrb Model : GT5 G2 1200x1000 Manufacture year : 2013 Cnc : SIEMENS 840D-SL Center height: 615 mm Swing over cross slide: 850 mm Swing over bed : 1200 mm Main spindle bore diameter: 104 mm Main spindle nose: DIN 55026-11 mm Spindle diameter on front bearing:150 mm Turning Speeds : 0-1400 rpm Spindle Ranges: 4 Headstock power: (S1/S6-60%) 30/37kw – (37/46kw Optional) Headstock torque: (S1/S6-60%) 4000/4850 Nm (4800/5950Nm) Guide width: 655 mm Height up to the plane guide: 800 mm

Condition: used, Year of construction: 2003, x-travel 1000 mm y-travel 800 mm z-travel 800 mm control SIN840D speeds 10 - 10.000 U/min feed range 1 - 36000 mm/min B - axis 360 x 1 ° repeating accuracy + / - 3 " surface area 2 x 500 x 630 mm tool diameter 100 mm workpiece length 650 mm workpiece weight max. 40 kg tool taper DIN 69871 SK 50 workpiece weight 800 kg tool magacine with 100 Plätzen wotkpiece diameter with 2 vacant positions 325 mm Pedpfxjwhqtkj Anyorb Chip to chip time ca. 8,00 sec. change time of pallets ca. 12,00 sec total power requirement 65,00 kW weight of the machine ca. 20,00 t dimensions of the machine ca. 7,80 x 3,50 x H3,40 m Horizontal machining center with SIEMENS SIN840D control. NC-rotary table; chip conveyor; coolant-unit; coolant through the spindle Magazine with 2 cassette à 50 pockets.

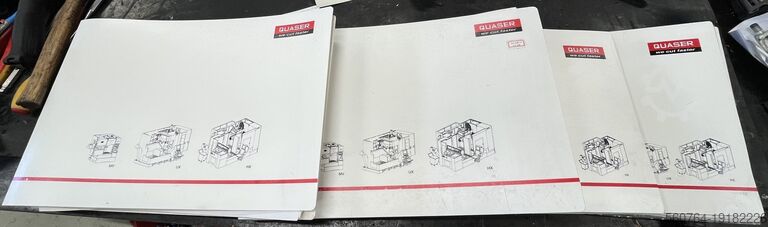

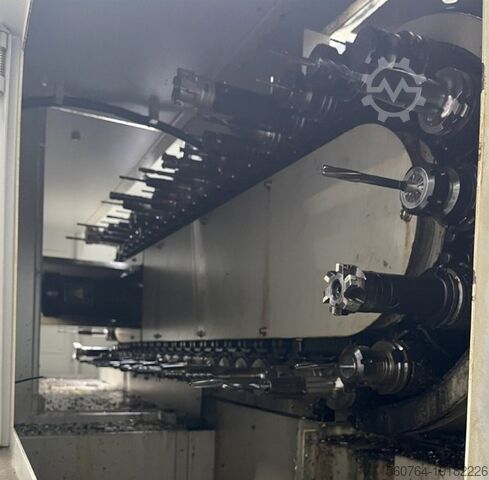

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 900 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 900 mm, controller manufacturer: Siemens, controller model: 840D Solutionline, spindle speed (max.): 10,000 rpm, coolant supply: 70 bar, spindle nose: HSK63, number of spindles: 1, number of slots in tool magazine: 60, Equipment: chip conveyor, documentation/manual, Hüller Hille NBH500 Condition: Functionally refurbished by the professionals at GSN Maschinen-Anlagen-Service GmbH (Pallet changer, guideways and ball screw drive, measuring system) Spare parts, repairs, modifications, retrofits, relocation, commissioning, and much more – all from a single source. Technical data and highlights: Pallet size: 500x500mm (Additional pallets available) Year of manufacture: 2013 Tool interface: HSK63 Control system: Siemens 840D Solutionline Main axes: X/Y/Z/B Spindle type: Motor spindle Spindle speed: 10,000 rpm Tool magazine: 60-position chain magazine Axis travels (X/Y/Z): 900/800/900mm Coolant: 600l coolant tank incl. chip conveyor Podpfozzqwgjx Anyorb Rotary table (B): NC type, 0.001mm Options: Renishaw measuring probe, work area extraction, internal coolant supply 60 bar, 6-position hydraulic clamping system on the setup station.

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 460 mm, WE OFFER AN VERY GOOD CONDITION OKUMA MU 400 VA WITH NEW SPINDEL ON 2022 INCLUDED COMPLETE EQUIPMENT AND FULL TOOLINGS INSIDE TOOLCHANGER. MACHINE - Okuma MU400VA 5 AXIS CNC Vertical Machining Centre (2006) Description: Main Drive Spindle speed range 15000 RPM Spindle motor power (10min/cont.) 22.5/18.5 kW Tool taper BT40 BIG+ Movement X-Axis Movement 762 mm Y-Axis Movement 460 mm Z-Axis Movement 460 mm 1-AXIS Movement +20/-110 2-AXIS Movement 360 DEGREES Tools Slots in storage 20 Additional Equipment Automatic tool changer cooling through spindle at 30 bar control OSP200 DIMENSIONS AND WEIGHT Prsdpfx Anevmithoyjb Measurements width 2500 Measurements depth 2800 Measurements height 2950 Machine weight 7900 kg

Condition: excellent (used), Year of construction: 2019, Winmax V10 X-axis: 1,067 mm Y-axis: 610 mm Prodjwt N Tgepfx Anyjb Z-axis: 610 mm Table size: 1,270 × 610 mm Tool holder: SK40 (DIN 69871) Max. speed: 12,000 rpm Drive power (S1/S6): approx. 15 / 22 kW ICS (internal coolant supply): 20 bar Separate coolant tank with paper band filter Rapid traverse X/Y/Z: 35 m/min (X/Y), 30 m/min (Z) Capacity: 40 tools Tool change time: tool-to-tool approx. 2 s Max. tool diameter: 80 mm (next to free slot: up to 125 mm) Max. tool length: 300 mm Max. tool weight: 7 kg Machine weight: approx. 6,900 kg Required space (W × D × H): approx. 4,600 × 3,900 × 2,800 mm Spindle nose to table: 150 – 760 mm Table surface to floor: approx. 900 mm
