Three jaw chuck

RÖHM

Condition: used, Mechanical machine vice RÖHM type 711-03 Jaw width: 120 mm Jaw height: 45 mm Clamping range: 0-115 mm Maximum opening: 117 mm Guideway height: 64 mm Dimensions (L x W x H): 400 x 200 x 110 mm Net weight: 24 kg Good condition Nledpfsy E T A Njx Akyoa

Condition: used, Hydraulic power chuck cylinder for actuating power chucks Suitable for Gildemeister GDM 42 Through-hole cylinder RÖHM SZS 45/92 559 Ident no.: 414096 Serial no.: 7069 Operating pressure: max. 40 bar Speed: max. 7000 rpm Piston diameter: 125 mm Nsdpfoy E T A Ajx Akyjla Piston rod diameter: 62/53 mm Piston stroke: 25 mm Inner diameter of cylinder tube: 45 mm Hydraulic power chuck cylinder for opening and closing automatic power chucks. For hydraulic operation of power chucks or collet chucks. Through-hole cylinder for hydraulic actuation of power or collet chucks with a through-bore.

Condition: good (used), Year of construction: 2001, Steady rest in good condition, today's new price 55.000,- EUR span range max.: 400 mm Nledpoy E Nywsfx Akyoa span range min.: 50mm steady rest width: 170 mm steady rest height: 730 mm

Condition: not inspected (used), functionality: unexamined, overall weight: 50 kg, total height: 100 mm, jaw width: 145 mm, total length: 530 mm, total width: 270 mm, No minimum price – guaranteed sale to the highest bidder! Placing a bid obligates timely collection between 23.06.2026 and 26.06.2026! TECHNICAL DETAILS Jaw width: 145 mm MACHINE DETAILS Dimensions & Weight Nledpfxey D Scfs Akysa Dimensions (L x W x H): 530 x 270 x 100 mm Weight: 50 kg External reference: 14

Condition: good (used), functionality: fully functional, 1 piece faceplate with a diameter of 625 mm and 1 piece faceplate with a diameter of 650 mm Njdpfxey A Swgs Akyela

Condition: like new (used), 3 unused clamping elements Dimensions, W x D approx.: 100 x 150 mm Total height: 91.5 mm Jaw width: 30 mm Lowest support height on jaws: 68.5 mm Medium support height: 80 mm Clamping height per jaw approx.: 11.5 mm Nodpfxsy A Nkke Akyola

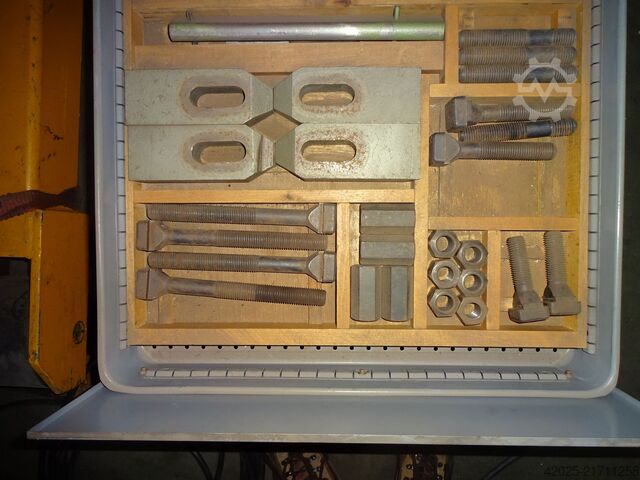

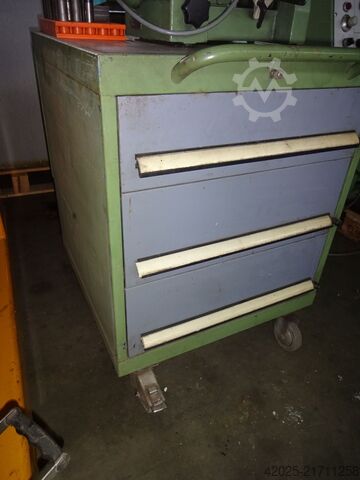

Condition: like new (used), 1 set of clamping elements, size M20, in a mobile auxiliary cabinet, W x D x H approx. 0.6 x 0.6 x 1 m, featuring: - 3 very sturdy drawers - manual locking/unlocking of each individual drawer Nedpfoy Awp Ijx Akyela

Condition: good (used), functionality: fully functional, overall weight: 80 kg, chuck outer diameter: 400 mm, spindle bore: 140 mm, Four-jaw scroll chuck Very good condition, signs of use are visible, see photos Clamping jaws: 4 reversible jaws → external clamping for larger diameters Suitable for: use on lathe; machining center; milling machine Chuck can be mounted on milling table or machining center using a mounting flange. Jaw adjustment via square wrench and scroll plate, concentric adjustment, RÖHM Type Z 400. Jaw dimensions: Width: 34 mm Length: 110 mm Slot B: xx mm Slot D: xx mm Nodpfey Apncex Akysla Total weight: approx. 90 kg Supplied incl. chuck key. Additional clamping jaws available on request. Flange for mounting on milling table available on request. Delivery: Shipping on transport pallet by freight forwarder available on request.

Condition: good (used), functionality: fully functional, 315 mm and 250 mm chucks, with central adjustment and individual adjustment of the clamping jaws, Nlodpfx Akjy Agmveysa

Condition: good (used), 3-Jaw Spiral Chuck Manufacturer: RÖHM Diameter 500 mm Spindle mount DIN 55027 size 11 Chuck inner bore 200 mm Chuck height 145 mm Weight 182 kg Nodpfx Akepmtgnsysla Accessories / Special Features: • Hard turning and drilling jaws • 1 chuck key Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel
