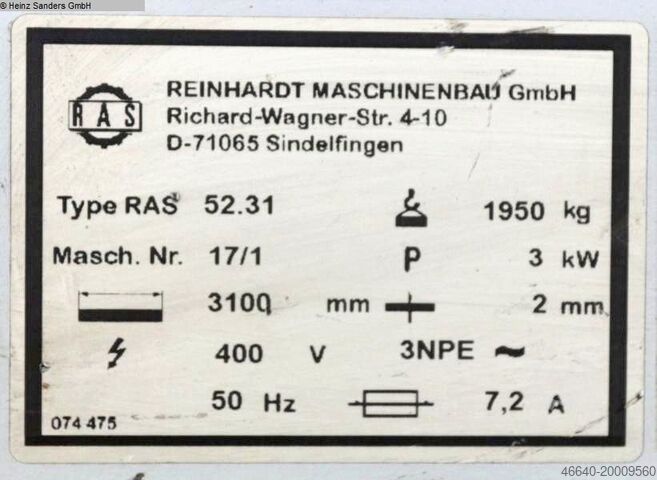

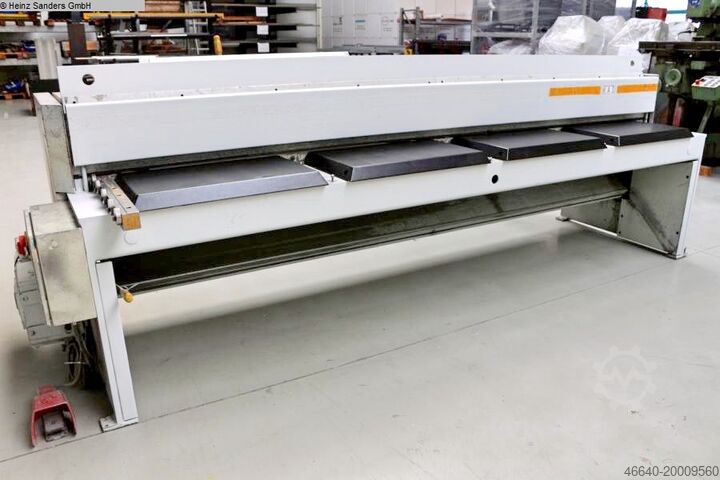

Plate Shear - MechanicalRAS
52.31
Machine data
Price & Location
- Location:
- 48683 Ahaus
Details about the offer
- Listing ID:
- A200-09560
- Reference number:
- 1125-9325425
- Update:
- 16.09.2025
Description
plate thickness 2.00 mm
thickness at "Niro-steel" 1.25 mm
no. of strokes max. 36 Hub/min
cutting angle 0.9 Grad
table height 800 mm
table width 430 mm
distance between columns 3200 mm
back stop - adjustable 5.0 - 750 mm
Control konv.
engine output 3.0 kW
weight of the machine ca. 1950 kg
range L-W-H 3730 x 2070 x 1400 mm
Original price approx. 45.000 euros (!!)
Special price on request
Features:
- Robust / motorized swing-cut guillotine shears
- Machine with manual material/backgauge
* Travel range 5.0 – 750 mm stop depth
* Analog position display
* Manual adjustment from the front
- Break-proof, torsion-free steel welded construction
- Compact and clear machine design
- 1x hold-down beam
* Hold-down opens before the knife beam moves up
* No kinking of very sensitive sheets
- Manual cutting gap adjustment
- Integrated sheet metal holding system for thin sheet metal cuts
- Sheet metal/cut material removal at the front (operator side)
Podsxcyw Eepfx Ac Hsha
- 1x side stop with mm scale
- 3x table extensions
- 1x freely movable foot switch
- Operating instructions (PDF
