Guillotine shear

RAS 86.43

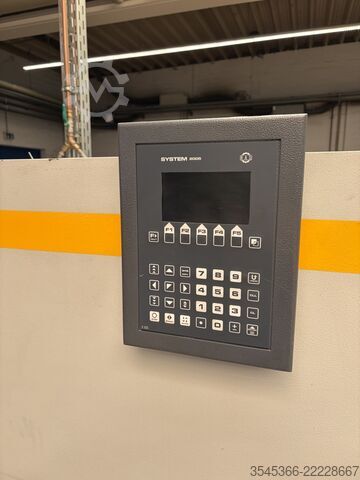

Condition: used, functionality: fully functional, Year of construction: 2018, machine/vehicle number: 10345, control type: CNC control, actuation type: hydraulic, controller manufacturer: RAS, controller model: System 2005, working width: 4,040 mm, cutting angle (min.): 1 °, cutting angle (max.): 1 °, stroke rate (min.): 28 1/min, stroke rate (max.): 46 1/min, sheet thickness (max.): 5 mm, back gauge adjustment: CNC-controlled, back gauge: 1,250 mm, power: 18.5 kW (25.15 HP), input voltage: 400 V, input current: 40 A, input frequency: 50 Hz, type of input current: three-phase, overall weight: 9,500 kg, number of support arms: 6, Equipment: CE marking, angle stop, documentation/manual, emergency stop, finger protection, foot remote control, safety light barrier, type plate available, RAS POWERcut 86.43 CNC Hydraulic Plate Shear Manufacturer: RAS Model: POWERcut 86.43 Year of manufacture: 2018 For sale is our RAS POWERcut 86.43 CNC hydraulic plate shear. The machine is currently still in our production facility and will be used sporadically until the sale. Therefore, it can be inspected and demonstrated at any time while powered on. The shear has been used exclusively in our facility and impresses with its high cutting quality and the extensive original equipment from RAS. Of particular note is the cutting angle of only 1.0°, which enables very low-distortion and clean cuts, even with thin sheets and stainless steel. Another advantage is the complete original RAS material handling system with automatic cut piece return, small parts sorting, and scrap separation. As a result, the finished cut pieces are automatically returned, and the workflow is significantly simplified. Technical data • Year of manufacture: 2018 • Cutting length: 4,040 mm • Max. sheet thickness steel: 5 mm • CNC control system 2005 with LCD graphic display, softkey and window technology • CNC back gauge 5–1,250 mm • Stroke rate: 28–46 strokes/min • Cutting angle: 1.0° • Transport weight: approx. 9,500 kg Equipment • CNC control system 2005 • CNC back gauge up to 1,250 mm • Cutting line illumination Hodezhnz Nspfx Anpjp • Foot switch with multiple functions • 20 hydraulic individual hold-downs • Finger guard with deep grip pockets • Built-in knives for chrome steel (stainless steel) • Base machine raised by 100 mm • 2 table extensions of 1,500 mm each • 4 additional short table plates • 33 steel ball rollers • Tilting back gauge with precision scale • Powder-coated table plates • Oil filling Material handling • Original RAS cut piece return • Small parts sorting • Scrap separation • Large parts feed-through • Movable scrap cart (side or rear) Safety • Light curtain • Protective fence on the right and left • Safety device to protect the rear of the shear The machine is well-maintained, used sporadically, and fully functional. An inspection while powered on is possible at any time by appointment. If you have any questions or are interested, please do not hesitate to contact us.
